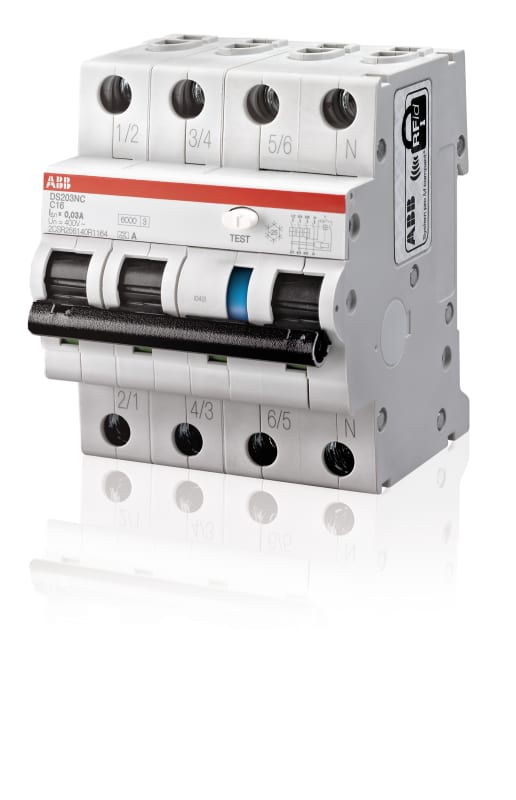

Residual Current Circuit Breaker WITH Overcurrent DS203NC C25/30MA 230V
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSR256147R1254 DS203NC, 4mod, C kar, 25A, 3 pole+N, A30mA, 230V.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSR256147R1254
- EAN / GTIN
- 8012542197928
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 230 V
- Power loss
- 10.3 W
- Number of poles (total)
- 3
- Number of protected poles
- 3
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated current
- 25 A
- Rated fault current
- 0.03 A
- Leakage current type
- A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 6 kA
- Disconnection characteristic
- Undelayed
- Surge current capacity
- 0.25 kA
- Voltage type
- AC
- Frequency
- 50/60 Hz
- Release characteristic
- C
- Concurrently switching neutral conductor
- Yes
- With interlocking device
- Yes
- Overvoltage category
- 3
- Pollution degree
- 2
- Ambient temperature during operating
- -25–55 °C
- Width in number of modular spacings
- 4
- Built-in depth
- 69 mm
- Anti-nuisance tripping version
- No
- Degree of protection (IP)
- IP2X
- Connectable conductor cross section solid-core
- 25 mm²
- Connectable conductor cross section multi-wired
- 25 mm²
- Flush-mounted installation
- No
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542197928
- SAP 1200722111
- Code 83833608
Product Documentation
