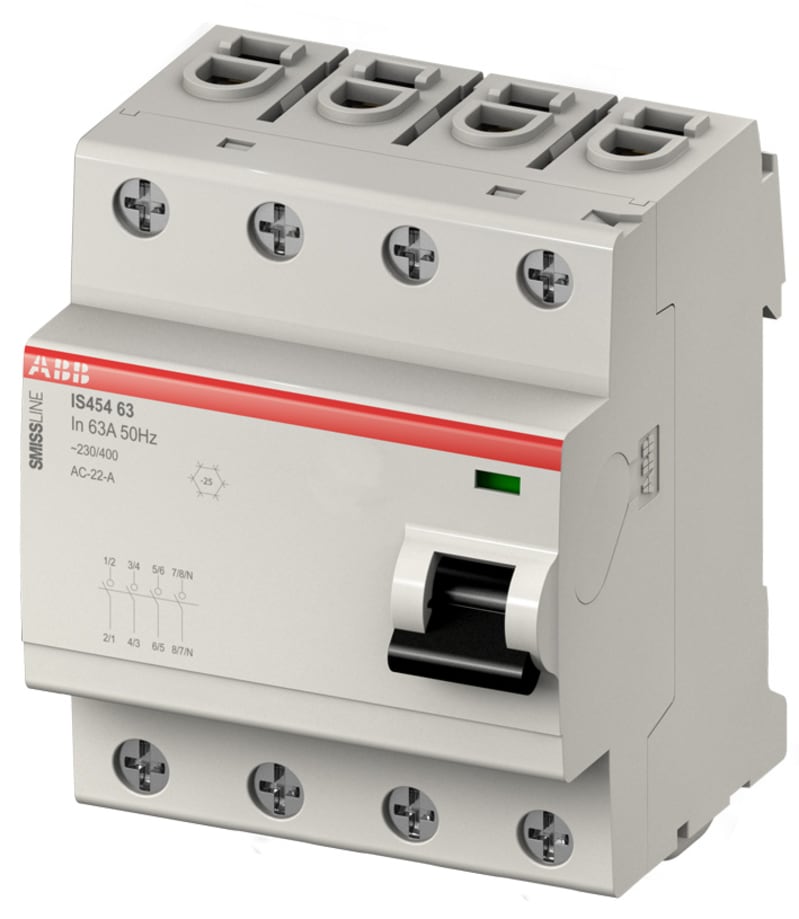

ABB 2CCF544160E0630 IS40463 Switch Disconnector 4 Poles Rated current in 63A 230/400VAC SMISSLINE TP-Touch proof system
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 2CCF544160E0630 IS40463 Switch Disconnector 4 Poles Rated current in 63A 230/400VAC SMISSLINE TP-Touch proof system is listed under Switchgear & Protection / Disconnect Switches. HS code: 8536.90; Sales unit: pcs; Rated Operational Current (I e ): 63 A; Accessories Available: Yes; Rated Operational Voltage: 230 ... 400 V AC; Rated Current (I n ): 63 A.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCF544160E0630
- EAN / GTIN
- 7612270104390
- HS code
- 8536.90
- Sales unit
- pcs
- Rated Operational Current (I e )
- 63 A
- Rated Operational Current AC-21A (I e )
- (400 V) 63 A
- Number of Poles
- 4P
- Number of Switches
- 4
- Accessories Available
- Yes
- Rated Operational Voltage
- 230 ... 400 V AC
- Rated Current (I n )
- 63 A
- Rated Short-time Withstand Current Low Voltage (I cw )
- 1.5 kA
- Rated Uninterrupted Current (I u )
- 63 A
- Power Loss
- Total 17.9 W
- Control Element Color
- Black
- Degree of Protection
- Front IP20
- Environmental Information
- 9AKK108467A9561
- Product Net Width
- 72 mm
- Product Net Height
- 91 mm
- Product Net Depth / Length
- 75 mm
- Dimension Diagram
- 9AKK107492A6192
- EPLAN Data
- 9AAC202682_EPLAN
- Declaration of Conformity - CE
- 2CCC451039D0201
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- ETIM 10
- EC000216 - Switch disconnector (AC)
- UNSPSC
- 39121603
- eClass
- V11.0 : 27371403
- Object Classification Code
- SF
- Standards
- IEC/EN 60947-3
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7612270104390
- SAP 1000201671
- Code 8716526
