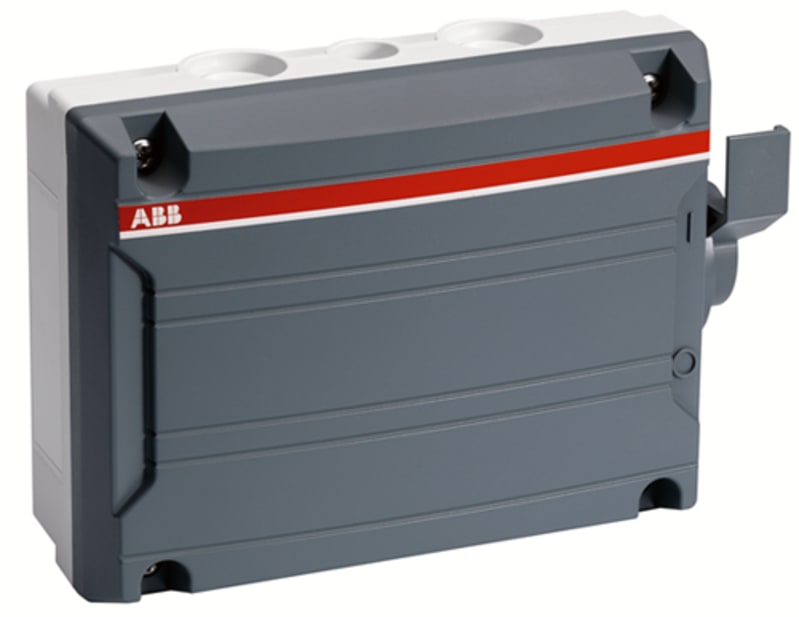

ABB Safety Switch 6-Pole 25 A 415 V AC-23 IP65

Six-pole enclosed safety switch rated 25 A at 415 V AC-23 (11 kW), with one factory-fitted normally-open auxiliary contact. Housed in a UV-protected rigid polycarbonate enclosure to IP65 with IK08 impact strength, side-operated grey handle, padlockable in the off position, and interlocked cover. Includes fixed neutral and PE terminals, screw clamps for 0.75-10 mm² conductors and knock-out cable entries top and bottom with membrane grommets. Suitable for indoor and outdoor motor isolation in industrial installations.

Manufacturer part number (MPN)

BWS625TPN

EAN / GTIN

7392696424226

Sales unit

pcs

Rated current

25 A

Degree of Protection

acc. to IEC 60529 IP65

Product Net Width

190 mm

Product Net Height

130 mm

Product Net Depth / Length

65 mm

Cable Cross-Section

0.75 ... 10 mm²

Cable Entry Position

Top/Bottom

Cable Outlets Per Side

2xø25.5+ø16.5 / 2xø25.5+ø16.5

Color

RAL7012 / RAL7035

Connecting Capacity Main Circuit

Screw Clamp 0.75 ... 10 mm²; Screw Clamp / PE Terminal 1pc 0.75 ... 10 mm²

Conventional Free-air Thermal Current (I th )

40 A

Conventional Thermal Current (I the )

Fully Enclosed 32 A

Enclosure Material

Plastic

Handle Color

Grey

Handle Type

Side-Operated

Impact Resistance Rating

Housing IK08

Maximum Mounted Auxiliary Contacts

2 NO, 0 NC

Mounted Auxiliary Contacts

1 NO, 0 NC

Neutral Type

Fixed Neutral

Number of Auxiliary Contacts NC

0

Number of Auxiliary Contacts NO

1

Number of Poles

6P

Power Loss

at Rated Operating Conditions per Pole 1.6 W; Total 9.6 W

Rated Impulse Withstand Voltage (U imp )

8 kV

Rated Insulation Voltage (U i )

acc. to IEC/EN 60664-1 690 V

Rated Operational Current AC-21A (I e )

(400 V) 40 A; (500 V) 32 A; (690 V) 32 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 40 A; (500 V) 32 A; (690 V) 32 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 25 A; (500 V) 25 A; (690 V) 16 A

Rated Operational Power AC-23A (P e )

(380 ... 415 V) 11 kW; (500 V) 15 kW; (690 V) 11 kW

Rated Operational Voltage

Main Circuit 690 V

Recommended Screw Driver

Main Circuit Pozidriv 2

Standards

IEC 60947-1, -3

Terminal Type

Screw Terminals

Tightening Torque

Main Circuit 1.2 N·m

Wire Stripping Length

7 mm

Declaration of Conformity - CE

1SCC340062D2702

Object Classification Code

Q

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC000216 - Switch disconnector (AC)

UNSPSC

39122205

IDEA Granular Category Code (IGCC)

5166 >> Safety switch

eClass

V11.1 : 27371403

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

E-Number (Finland)

3601594

E-Number (Norway)

1428189

HS Code

8536.30

• EAN 7392696424226
• SAP 1000225056
• Code 8123807
