ABB S401-C10 Miniature Circuit Breaker — 1P, Type C, 10 A, 10 kA
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB S401-C10 miniature circuit breaker (MCB) from the Smissline T (touch-proof) range. 1P, rated current In = 10 A, Type C tripping characteristic. Rated breaking capacity Icn = 10 kA (IEC 60898-1); rated operational voltage Ue 230/400 V AC. DIN-rail modular device for overload and short-circuit protection of cables and equipment. Conforms to IEC 60898-1. ABB order code 2CCS571001R1104, EAN 7612270109821, ABB/SAP material 1200261395, catalogue code 82240988.
Technical Specifications
- Manufacturer
- ABB
- Product family
- Smissline T (touch-proof)
- Type designation
- S401-C10
- Manufacturer part number (MPN)
- 2CCS571001R1104
- EAN / GTIN
- 7612270109821
- ABB / SAP material no.
- 1200261395
- Poles
- 1P
- Tripping characteristic
- Type C
- Rated current In
- 10 A
- Rated breaking capacity Icn
- 10 kA
- Rated operational voltage Ue
- 230/400 V AC
- Standard
- IEC 60898-1
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC 60898-1
- HS Code
- 8536.20
Cross References
- EAN 7612270109821
- SAP 1200261395
- Code 82240988
Product Documentation
More from ABB
ABB
ABB SACE Tmax XT6H 1000 Moulded-Case Circuit Breaker — Ekip Dip LSI, In=1000 A, 3-Pole
1SDA100766R1
ABB
ABB S403-B20 Miniature Circuit Breaker — 3P, Type B, 20 A, 10 kA 2CCS573103R8205
ABB
ABB SACE Tmax XT2V 160 Moulded-Case Circuit Breaker — MA 80 Im=480, In=80 A, 3-Pole
1SDA067798R1
ABB
ABB S804S-K8 Miniature Circuit Breaker — 4P, Type K, 8 A, 50 kA
2CCS864001R0407
ABB

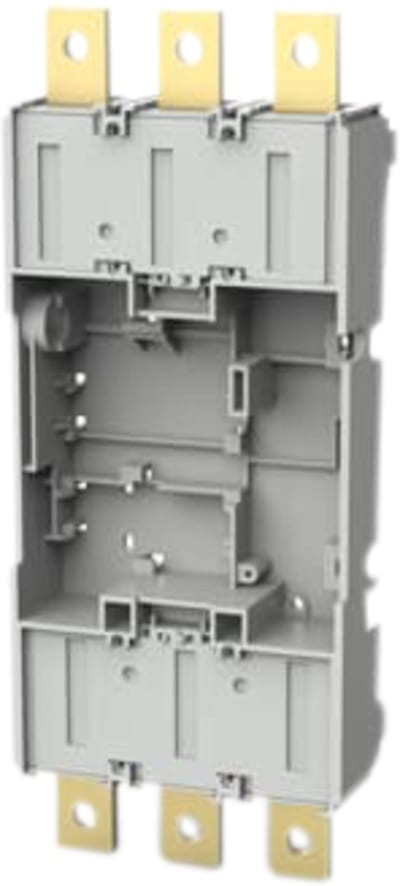

XT5 P FP 400A 3P frame configurable
1SDA112953R1
ABB
ABB S202M-C0 Miniature Circuit Breaker — 2P, Type C, 0 A, 10 kA
2CDS272061R0984
ABB

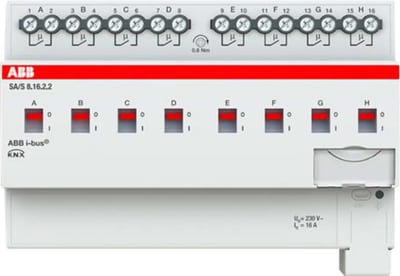

ABB KNX Switch Actuator 8-Channel, 16 A AC1, DIN Rail
SA/S8.16.2.2
ABB

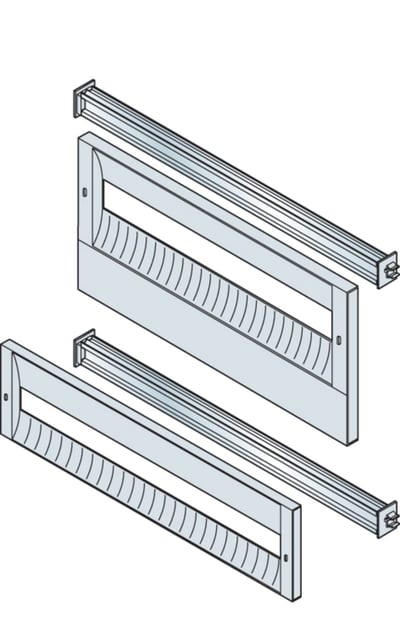

ABB 1SL0307A00 Panel WITH Holes H150 AND DIN-SIZE 1;PANEL WITH Holes H150 AND DIN-SIZE 1
