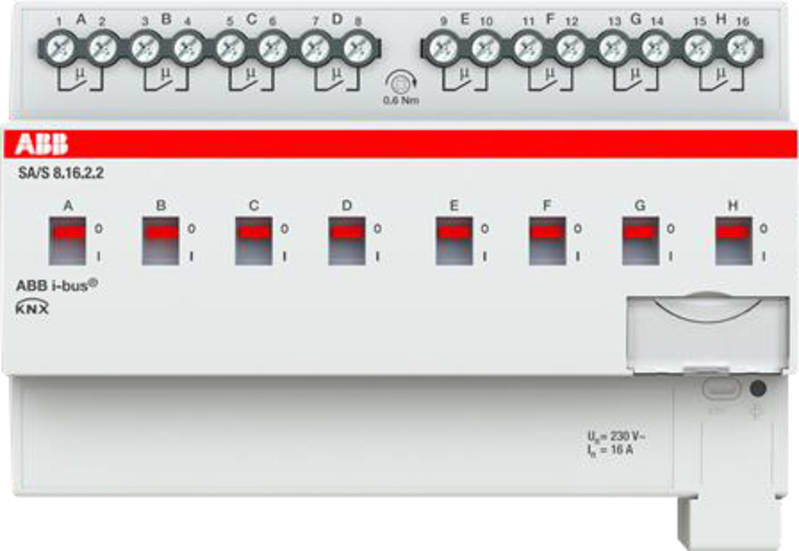

ABB KNX Switch Actuator 8-Channel, 16 A AC1, DIN Rail
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SA/S8.16.2.2 is an 8-channel KNX switch actuator for DIN-rail mounting, rated 16 A for AC1 loads at 230 V. Each channel provides local manual operation and an LED status indication, and different phases may be connected across the channels. Bus-connected via KNX TP; not KNX Secure, not RF, not modularly expandable. Rated IP20.
Technical Specifications
- Manufacturer part number (MPN)
- SA/S8.16.2.2
- EAN / GTIN
- 4016779066679
- HS code
- 8536.90
- Sales unit
- pcs
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- No
- Width in number of modular spacings
- 8
- Local operation/hand operation
- Yes
- With LED indication
- Yes
- Max. switching power
- 2500 W
- Output power
- 2500 W
- Suitable for C-load
- No
- Max. number of switching contacts
- 8
- Max. switching current
- 16 A
- Rated current
- 16 A
- Rated operating voltage
- 230 V
- Different phases connectable
- Yes
- With bus connection
- Yes
- Bus module detachable
- No
- Min. depth of built-in installation box
- 63.5 mm
- Modular expandability
- No
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4016779066679
- SAP 1200426071
- Code 82454538
Product Documentation
More from ABB
ABB
ABB 1SL0307A00 Panel WITH Holes H150 AND DIN-SIZE 1;PANEL WITH Holes H150 AND DIN-SIZE 1
ABB

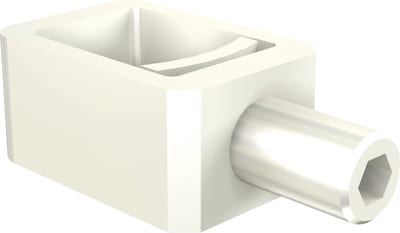

KIT FC Cu, XT1, 3 pcs
1SDA066905R1
ABB
ABB S204M-K63 Miniature Circuit Breaker — 4P, Type K, 63 A, 10 kA
2CDS274061R0607
ABB
ABB SACE Tmax XT3N 250 Moulded-Case Circuit Breaker — In=400 A, 4-Pole 1SDA068261R1
ABB

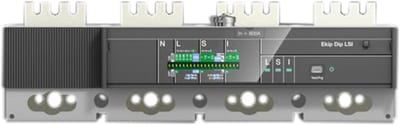

Ekip G Dip LS/In In=1000 4P XT6
1SDA100823R1
ABB

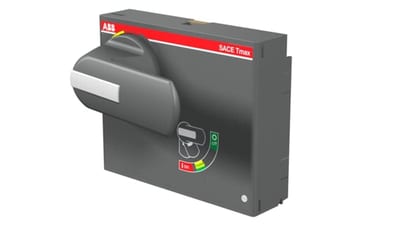

ABB 1SDA104840R1 Rotary Handle Operating Mechanism Emergency Direct WITH Padlock Device ON C.BREAKER Fixed-Withdrawable XT7
ABB

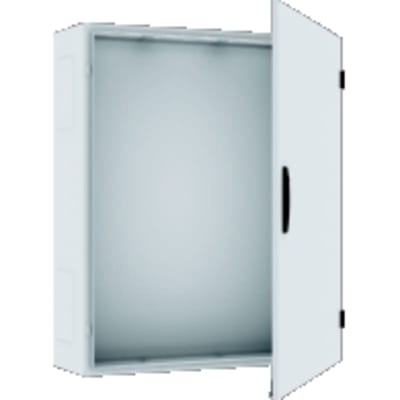

WALL-Mount Cabinet TG208G 1250X550X225MM IP55
2CPX010021R9999
ABB

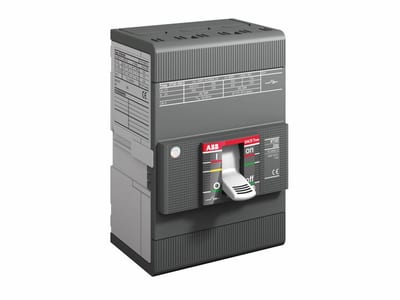

ABB SACE Tmax XT3N 250 Moulded-Case Circuit Breaker — TMD R100, In=100 A, 3-Pole
