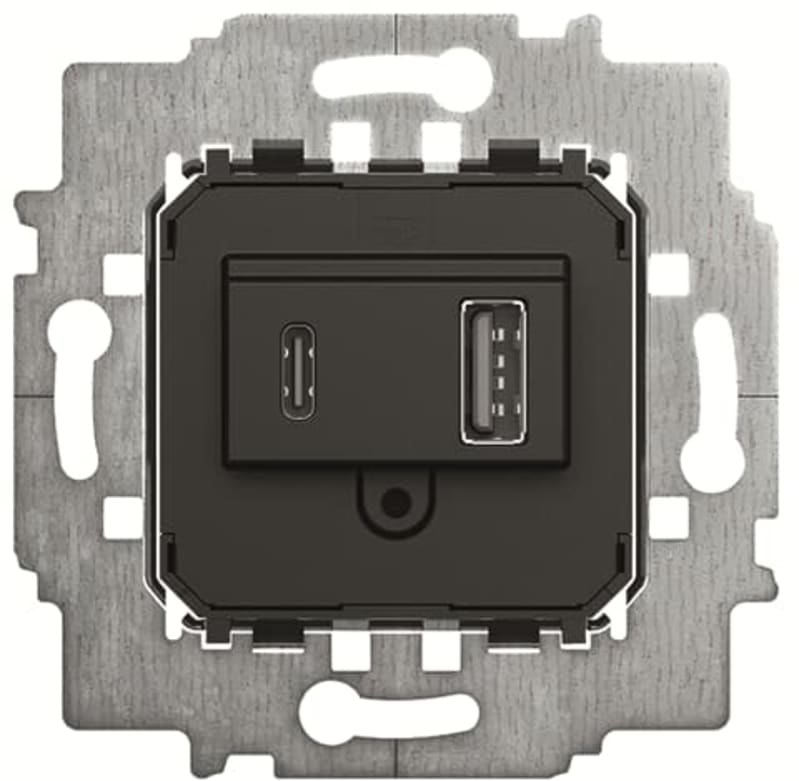

Insert USB A+c Charger

ABB 2CKA006400A0399 — For supply and support of mobile devices via USB-cable. With USB type A and USB type C female connector. To support two devices at the same time. Supports automatic negotiating of optimum charging parameters for the shortest charging times. Support of loading protocol on the USB-A connection: Apple MFI with 2.4 A and BC 1.2 with 1.5 A. Support of the additional quick-charge protocols: USB-PD and quick-charge 3.0 & 4.0. With electronic short-circuit protection. With electronic overload protection.

Manufacturer part number (MPN)

2CKA006400A0399

EAN / GTIN

4011395303566

Sales unit

pcs

Mounting Type

Flush Mounted

Type of Fastening

Mounting with Screw; Without Claw

Modular Components Included

Flush Mounted Insert with Mounting Plate

Ambient Air Temperature

Operation 0 ... +35 °C

Degree of Protection

IP20

Function

USB

Number of Outputs

USB-A 1; USB-C 1

Connection Type

USB

Terminal Type

Screw Terminals

USB Port Type

USB A/C

Charging Protocol

Apple MFi 2.4 A; BC 1.2 DCP; Qualcomm Quick Charge 2.0 (QC 2.0); Qualcomm Quick Charge 3.0 (QC 3.0); Qualcomm Quick Charge 4+ (QC 4+)

Rated Voltage (U r )

220 ... 230 V AC

Operational Voltage

Maximum 230 V

Secondary Voltage

5 V; 9 V; 12 V

Output Voltage Type

DC

Output Voltage (U out )

5 V

Rated Current (I n )

0.275 A

Secondary Current

3 A; -empty-

Output Current Maximum (I out )

3.2 A

Rated Frequency (f)

50 ... 60 Hz

Power Consumption (@P cons )

18 mA

Power Loss

0.075 W; Total 0 W

Power Watt

Maximum DC 18 W

Design Range

Platform 63; Busch-Duro 2000 SI; Reflex SI; Busch-balance SI; Busch-art linear; future linear; Busch-axcent; solo; Pure Stainless Steel; carat; Busch-Dynasty; alpha; impuls

Design Range Variant

Busch-Duro 2000 SI; Busch-Duro 2000 SI Linear; Reflex SI; Reflex SI Linear; Busch-art linear; Busch-art linear - with Decor Ring; Busch-art linear - pur; future; future linear; Busch-axcent; Busch-axcent pur; alpha nea; alpha exclusive

Product Net Width

71 mm

Product Net Height

71 mm

Product Net Depth / Length

42.5 mm

Built-In Depth ( t 2 )

32 mm

Building Information Modeling – BIM

9AKK108471A9951

Declaration of Conformity - CE

2CKA100000E4514

EU Data Act Applicability and Compliance

Not Applicable

ETIM 9

EC002949 - USB power supply

eClass

V11.0 : 27144042

Number of ports USB-A

1

Number of ports USB-C

1

Model

Bus

Type of USB power supply

AC

Operating voltage

230 V

Frequency

50–60 Hz

Max. output current

3.2 mA

Colour

Black

Device width

71 mm

Device height

71 mm

Device depth

42.5 mm

Min. depth of built-in installation box

32 mm

Suitable for degree of protection (IP)

IP20

Impact strength

IK03

Anti-bacterial treatment

No

Country of origin

Thailand

HS Code

8504.31

• EAN 4011395303566
• SAP 1200612513
• Code 83002940
