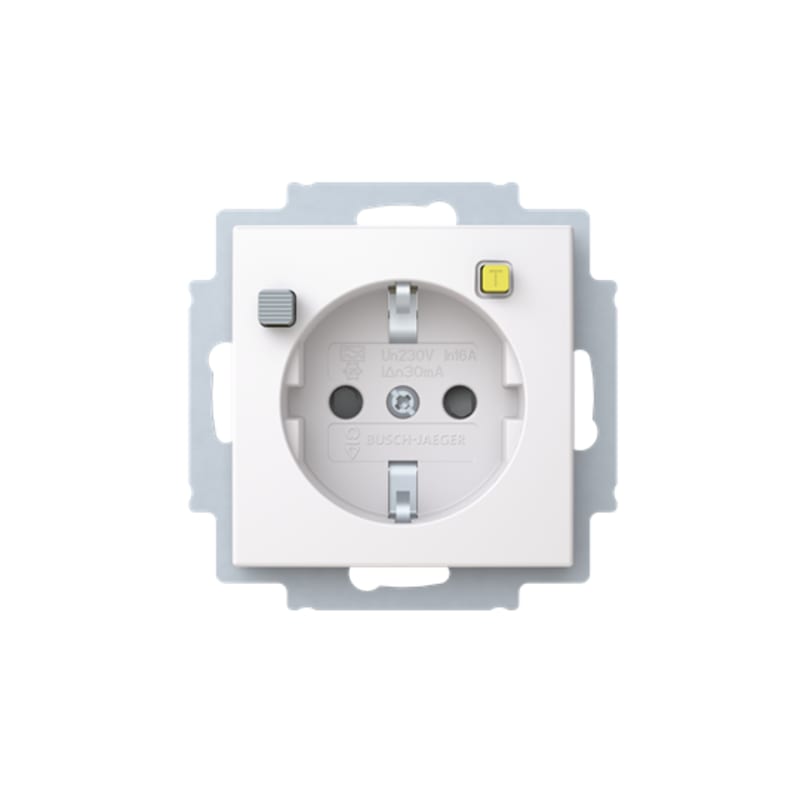

SAGA RECESSED Socket WITH 30MA Gfcibry
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CCG001361R0001 — Shuttered. DP cut off (P,N) Without PE monitoring. With connecting conductor and protection of downstream socket outlets. Rated actuating current: 30 mA. Release time: ≤ 30 ms. Short-circuit strength: 3000 A (with 25 A GL fuse). Current surge strength: 250 A (8/20) µs. With fixing claws. Rated frequency: 45-60 Hz.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCG001361R0001
- EAN / GTIN
- 7612271518301
- HS code
- 8536.90
- Sales unit
- pcs
- Instructions and Manuals
- 2CCR391350B0005
- Mounting Type
- Flush Mounting
- Type of Fastening
- Mounting with Claw; Mounting with Screw
- Degree of Protection
- IP21
- Data Sheet, Technical Information
- 2CCR391332C0001
- Number of Phases
- 1-phase
- Connection Type
- Quick-Connect
- Socket Outlet Type
- Protective Contact (SCHUKO)
- Number of Batteries
- 0
- Short-Circuit Current Rating (SCCR)
- 30 mA
- Rated Voltage (U r )
- 250 V
- Rated Current (I n )
- 16 A
- Frequency ( f )
- 50 … 60 Hz
- Design Range
- Saga
- Surface Finishing
- Untreated; Glossy
- Material
- Plastic
- Legend
- Without imprint
- RAL Number
- RAL 9003 - Signal White
- Color
- White
- Number of Gangs
- 1-gang
- Number of Modules
- 0
- Product Net Width
- 71 mm
- Product Net Height
- 71 mm
- Product Net Depth / Length
- 56 mm
- Declaration of Conformity - CE
- 9AKK108468A4542
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000125 - Socket outlet
- UNSPSC
- 39121406
- IDEA Granular Category Code (IGCC)
- 4536 >> Electrical receptacles
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7612271518301
- SAP 1200706312
- Code 83748664
Product Documentation
More from ABB
ABB
ABB 2CKA002495A0089 for connecting wires up to 1 x 6 mm² and 4 x 2.5 mm².Connection bolts according German Standard DIN 42801.
ABB
ABB M4M 20 MODBUS is a network analyzer with 2 digital outputs, aux supply 48-240 V AC/DC, Bluetooth and Modbus RTU 2CSG251141R4051
ABB
SOLO 2/4V, White MATT 6126/02-884-500
2CKA006116A0216
ABB
ABB SACE Tmax XT1C 160 Moulded-Case Circuit Breaker — TMD 125-1250, In=125 A, 3-Pole
XT1C 160 TMD 125-1250 3p F F
ABB
KIT FC Cu, XT1, 4 pcs
KIT FC Cu XT1 4pcs
ABB
ABB VFI online double conversion,400V,22500W,RS232,USB,COM slot,includes 3X46X8AH batteries mounted linked and tested 4NWP103584C2520
ABB
ABB 1SDA104856R1 BASE FOR Adjustable Depth Rotary Handle FOR C.BREAKER Fixed-PLUG-IN XT6 WITH Double Padlock
ABB
ABB 2CSM258783R1801 E 9F14 GG16 is a 14X51 mm cylindrical fuse for circuits protection
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 2CCG001361R0001?
- 2CCG001361R0001 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is 2CCG001361R0001.
- What is the HS code for 2CCG001361R0001?
- The customs tariff (HS) code for 2CCG001361R0001 is 8536.90.
- Who manufactures 2CCG001361R0001?
- 2CCG001361R0001 is a ABB product in the Electrical Components range.
- Is a datasheet available for 2CCG001361R0001?
- Yes — the 2CCG001361R0001 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 2CCG001361R0001?
- The minimum order quantity is 1.
- Is 2CCG001361R0001 available?
- Yes — 2CCG001361R0001 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
