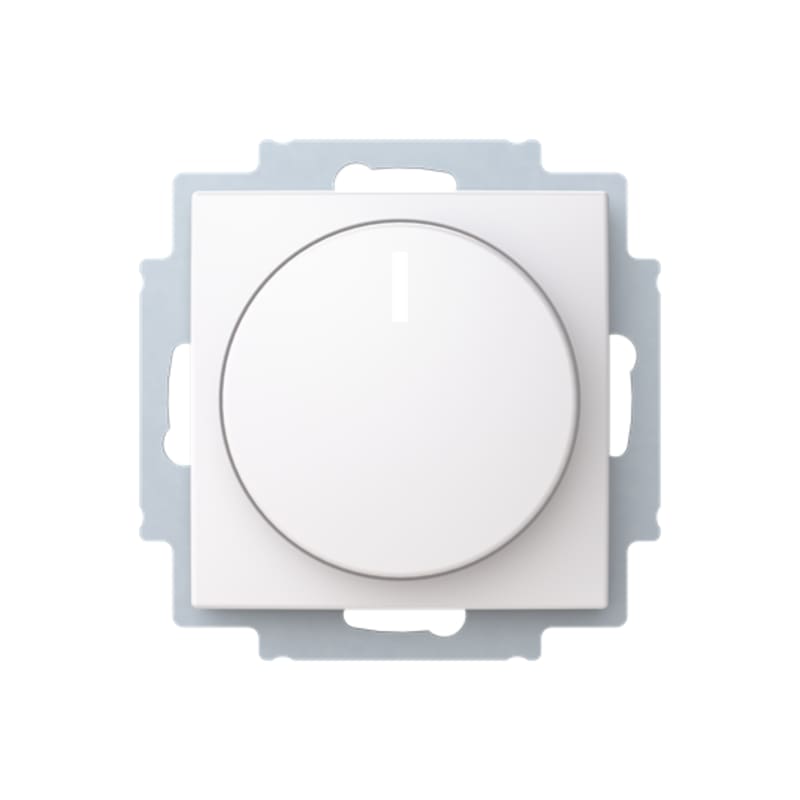

SAGA DALI Tunable White Dimmer without Frame

ABB 2CKA006599A3047 — For DALI broadcast service (via central telegram). With integrated DALI power adaptor. For switching and dimming up to 64 DALI- devices like electronic ballasts and transformers with DALI-interface. With rotary control and ON/OFF push operation. For changing the colour temperature of >tunable white< lamps, which meet DALI Standard IEC 62386-209 (Device Type 8). Colour temperature can then be set between 2,700 K - 6,500 K. With electronic short-circuit protection. With electronic overload protection. Brightness power-on level and backround brightness level adjustable, buffered. With integrated LED illumination for orientation. Color of orientation light adjustable (18 presets and OFF). Up to 5 potentiometers are connectable in parallel. Up to 3 potentiometers are connectable in parallel in active mode. Not suitable for combining with other DALI sensors or central units of other manufacturers. DALI-voltage: 15,5 V= Rated current: max. 75 mA Power consumption: < 2,5 W Number of DALI-units: 37 in case of one active power-potentiometer in case of three active power-potentiometer in parallel connection: 111 Active mode: the potentiometer is supporting the necessary control circuit for other DALI-devices. Passive mode: the potentiometer is suitable as additional operation point. Max. DALI-cable length: 300 m (1,5 - 2,5 mm²).

Manufacturer part number (MPN)

2CKA006599A3047

EAN / GTIN

4011395316269

HS code

8536.90

Sales unit

pcs

Mounting Type

Flush Mounted

Ambient Air Temperature

Operation 0 ... +35 °C

Compatible Bus Systems

DALI

Lamp Type

LED Orientation light

Product Type

for >tunable white< lamps

Illumination

Illuminated

Actuator Type

Selector Pushbutton

Rated Voltage (U r )

230 V

Auxiliary Voltage AC/DC

DALI: 9.5...22.5 V DC

Rated Current (I n )

0.08 A

Rated Frequency (f)

50 / 60 Hz

Design Range

Saga

Product Net Width

71 mm

Product Net Height

71 mm

Product Net Depth / Length

53.8 mm

Built-In Depth ( t 2 )

28.5 mm

Dimension Diagram

2CKA000097E4108

Declaration of Conformity - CE

2CKA100000E4797

EU Data Act Applicability and Compliance

Not Applicable

ETIM 9

EC000534 - Automatic controller for light controlling system

ETIM 10

EC000534 - Controller for light controlling system

eClass

V11.0 : 27144073

HS Code

8536.90
