Auxiliary Relay Pluggable

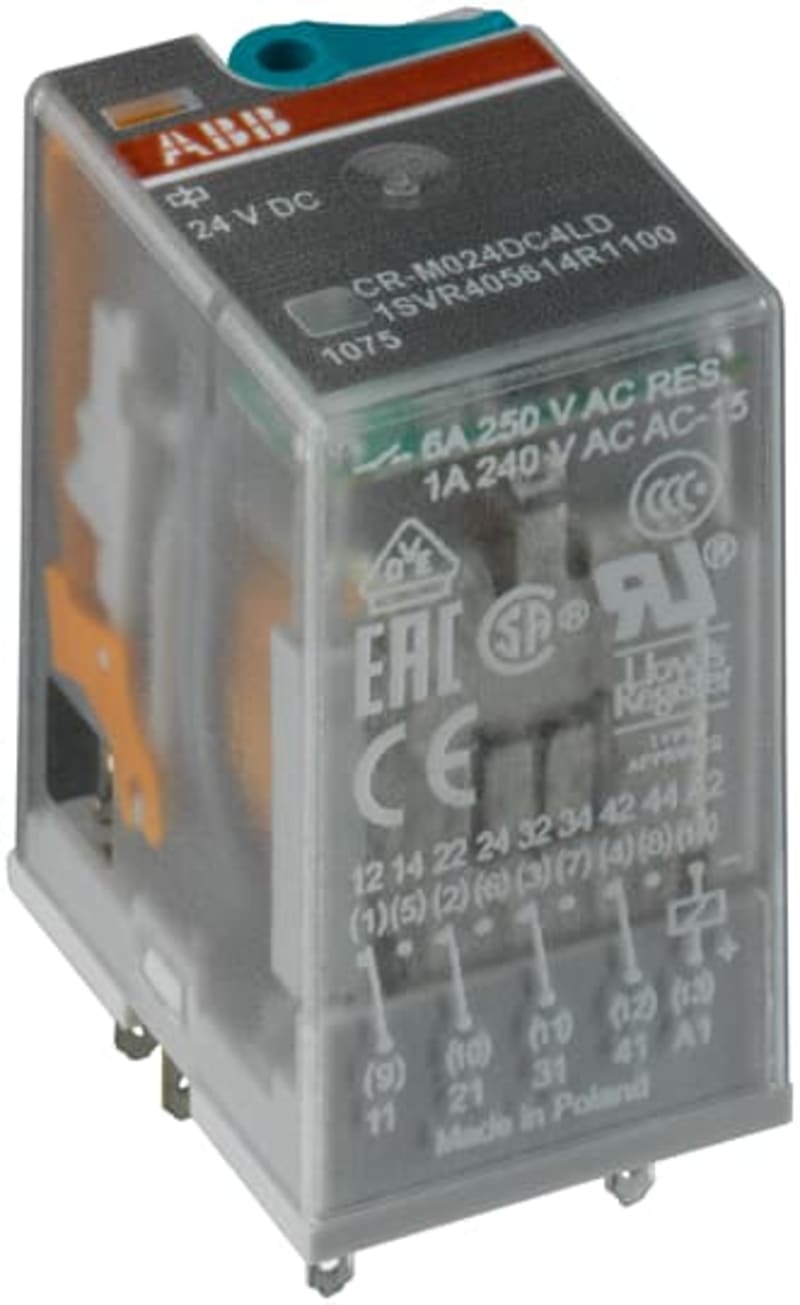

ABB CR-M024DC4 — The CR-M024DC4 pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 24 V DC rated control supply voltage and has a 4 c/o (SPDT) output with contacts rated at 250 V / 6A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking its output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.

Manufacturer part number (MPN)

CR-M024DC4

EAN / GTIN

4013614497711

Sales unit

pcs

Package quantity

10 pcs

Country of Origin

India

Lead Time

0 day

Product Sales Status

Active

Configuration Only

No

Criticality

No

Note

No

Product Availability Class

From stock if available, otherwise Target delivery time is

Storage Location

4001

Product Net Width

21.2 mm

Product Net Height

35.6 mm

Product Net Depth / Length

27.5 mm

Function

Pluggable miniature interface relay CR-M

Sub-Function

Relay w/o built in LED

Rated Control Supply Voltage (U s )

24 V DC

Rated Operational Voltage

250 V AC

Output

4 C/O (SPDT) Contacts

Output Signal

250 V / 6 A

Terminal Type

Flat-Pin Connections

Rated Operational Current AC-12 (I e )

(230 V) 6 A

Rated Operational Current AC-15 (I e )

(120 V) 1.5 A; (230 V) 1 A

Rated Operational Current DC-12 (I e )

(24 V) 6 A

Rated Operational Current DC-13 (I e )

(24 V) 2 A; (250 V) 0.1 A

Rated Insulation Voltage (U i )

250 V

Degree of Protection

IP40

Mounting Position

1

Standards

CAN/CSA C22.2 No.14; IEC/EN 63000; IEC/EN 61810-1; UL 508

Maximum Operating Voltage UL/CSA

300 V AC

Pilot Duty UL/CSA

B300

Flammability According to UL94

HB

Ambient Air Temperature

Operation -40 ... +70 °C; Storage -40 ... +85 °C

Maximum Operating Altitude Permissible

Without Derating 2000 m

CCC Certificate

CCC_2014010303720193

CQC Certificate

CQC2014010303720193

CSA Certificate

CSA_2735700

cUR Certificate

cUR_E244330

Declaration of Conformity - CCC

2020980303000200

Declaration of Conformity - CE

1SVD982021-0003

Declaration of Conformity - UKCA

1SVD982021-1000

EAC Certificate

EAC_RU_C-DE.ME77.B.00446-19

LR Certificate

LR_05_20002_E5

RMRS Certificate

RMRS_1740019250

UR Certificate

UR_E244330

VDE Certificate

VDE_40040327

Object Classification Code

K

ETIM 7

EC001437 - Switching relay

eClass

V11.0 : 27371601

UNSPSC

39122331

E-Number (Finland)

2712660

E-Number (Norway)

4187374

E-Number (Sweden)

4005352

HS Code

8536.49
