Product Description

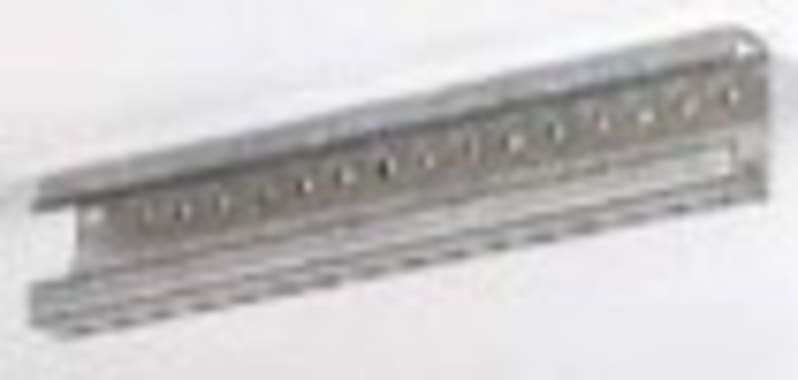

ABB 2CPX041863R9999 — Horizontal transverse profile rail, not installed, field width 3 (750 mm), for field separation into top and bottom, incl. mounting screws. The use of a transverse profile rail is necessary to connect different field widths. The system component is suitable for the WR mounting frame.
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX041863R9999
- EAN / GTIN
- 4011617418634
- Sales unit
- pcs
- Model Number
- Mounting rail
- Enclosure Type
- Slide rails
- DIN Place Units
- 0
- Meter Boards
- 0
- Surface Finishing
- Galvanised
- Material
- Steel
- Product Net Width
- 750 mm
- Product Net Height
- 19 mm
- Product Net Depth / Length
- 15 mm
- Section Width
- 3
- Declaration of Conformity - CE
- 2CPC100019X0201
- Mounting Type
- Screw mounting
- Mounting Position
- horizontal
- ETIM 9
- EC002518 - Profile (enclosure/cabinet)
- eClass
- V11.0 : 27180907
- Object Classification Code
- U
- Length
- 15 mm
- Stepless mounting
- No
- Mounting method
- Screw mounting
- Profile height busbar
- 19 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011617418634
- SAP 1000120260
- Code 81105025
Product Documentation
More from ABB
ABB

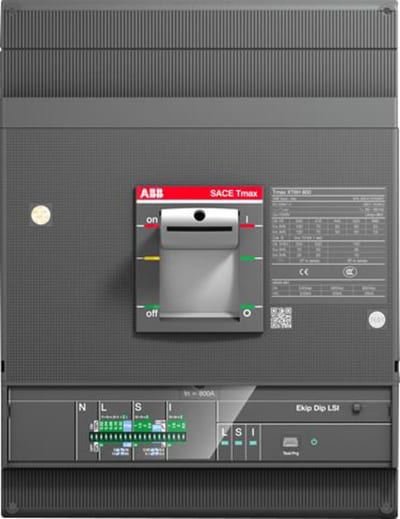

ABB SACE Tmax XT6N 800 Moulded-Case Circuit Breaker — Ekip Dip LSI, In=800 A, 3-Pole
