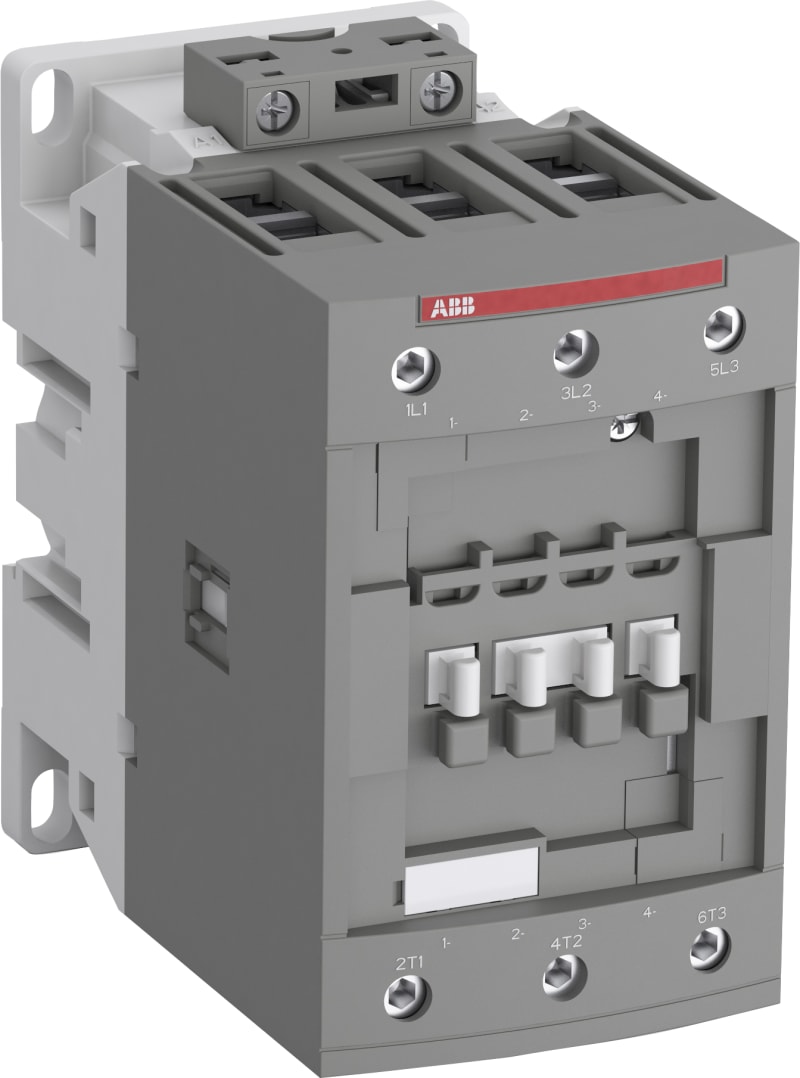

Contactor AF96-30-00-13 (AF96-30-00-13 100-250V50/60HZ-DC)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB AF96-30-00-13 100-250V50/60HZ-DC — AF-series contactor. Wide-range electronic-coil contactor covering multiple control voltages. AF96-30-00-13 100-250V50/60HZ-DC. Contactor supplied without hj.connector. Use optionally 4117856 1NO+1NC side.
Technical Specifications
- Manufacturer part number (MPN)
- AF96-30-00-13 100-250V50/60HZ-DC
- EAN / GTIN
- 3471523133235
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 70 mm
- Height
- 125.5 mm
- Depth
- 116 mm
- Suitable for distribution board
- No
- Rated operation power at AC-3, 400 V
- 45 kW
- Number of normally open contacts as main contact
- 3
- Rated operation current Ie at AC-3, 400 V
- 105 A
- Rated operation current Ie at AC-1, 400 V
- 130 A
- Rated control supply voltage AC 50 Hz
- 100–250 V
- Rated control supply voltage AC 60 Hz
- 100–250 V
- Rated control supply voltage DC
- 100–250 V
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 1000 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation power NEMA
- 55.9275 kW
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3471523133235
- SAP 1000506759
- Code 8914013
Product Documentation
More from ABB
ABB
ABB GMR3 DIN RAIL-SIZE 2-3 Gemini IP66 Insulating switchboards accessories
ABB
GARANT Double SOCKET with COVER IP55
2CHN182375C4302
ABB
Safety Switch OT160EVFCC3T 160A
ABB

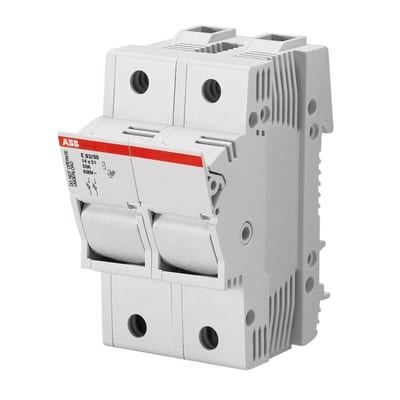

FUSE Holder E 91N/50
2CSM277982R1801
ABB

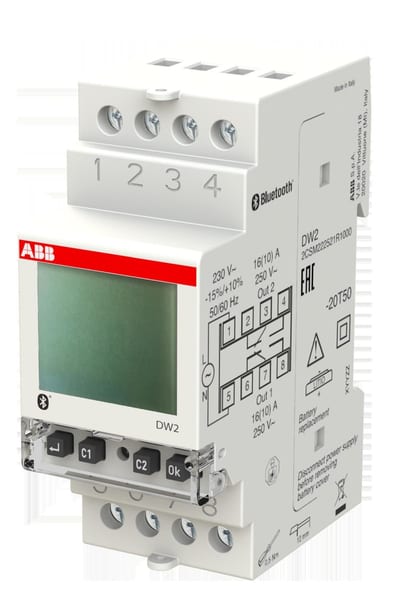

Digital Ukesur 2CHANNEL
DW2
ABB
Safety Switch DC OTDCP32SA22MD
ABB

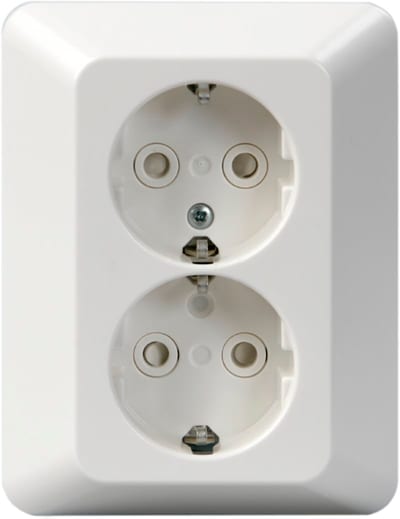

Jussi In. Double Socket
