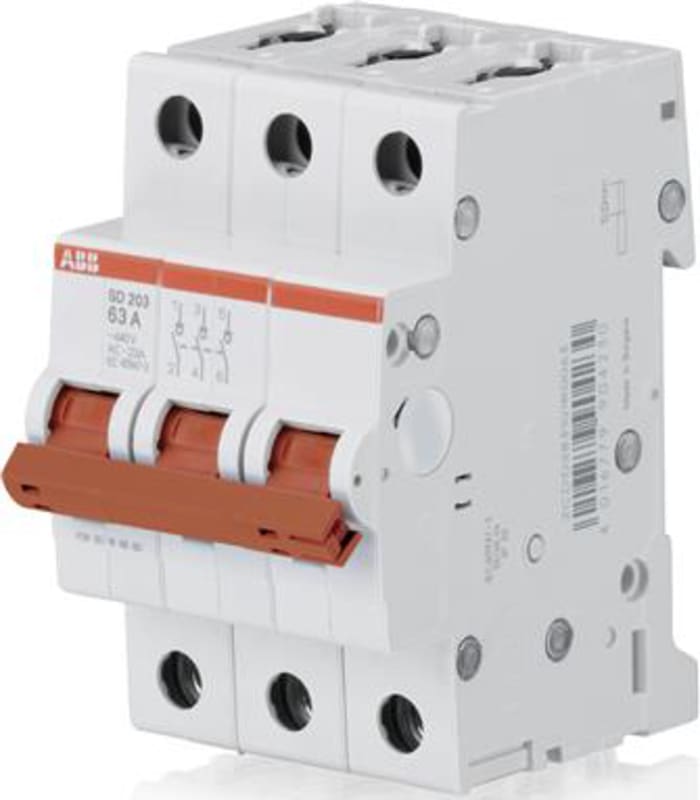

ABB 2CDD283101R0063 SD203/63 - Switch Disconnector - 3P, 63A

ABB 2CDD283101R0063 SD203/63 - Switch Disconnector - 3P, 63A is listed under Switchgear & Protection / Disconnect Switches. HS code: 8536.90.

Manufacturer part number (MPN)

2CDD283101R0063 EAN / GTIN: 4016779904230 HS code: 8536.90 Sales unit: pcs Country of Origin: Bulgaria Lead Time: 0 day Product Sales Status: Active EcoSolutions Profile: 9AKK108470A9360 Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 85 % ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill Extended Product Lifetime: Product Durability End Of Life Disassembling Instructions: 9AKK108469A8855 Environmental Product Declaration - EPD: 9AKK108470A9091 Contact Position Indication: ON / OFF Electrical Endurance: 10000 AC cycle Mechanical Endurance: 20000 cycle Number of Poles: 3P Tightening Torque: 2.8 N·m Utilization Category: Switching of motor loads or other highly inductive loads - frequent actuation (AC-23A) Screw Terminal Type: Failsafe Bi-directional Cylinder-lift Terminal Switch Type: Off Actuator Marking: I / O Actuator material: Insulation Group II, Red, Sealable Recommended Screw Driver: Pozidriv 2 Accessories Available: Yes Cover Color: Grey Connecting Capacity: Busbar 10/10 mm²; Flexible with Ferrule 0.75 ... 25 mm²; Flexible 0.75 ... 25 mm²; Rigid 0.75 ... 35 mm²; Stranded 0.75 ... 35 mm² Installation Size: acc. to DIN 43880 3 Terminal Type: Screw Terminals Actuator Type: Toggle Rated Voltage (U r ): 440 V; 12 V minimum Rated Operational Voltage: 440 V AC Operational Voltage: Maximum 462 V AC; minimum 12 V AC Voltage Protection Level ( Up): 4 kV Rated Impulse Withstand Voltage (U imp ): 4 kV; at 2000 m 5 kV; at Sea Level 6.2 kV Input Voltage Type: AC Rated Current (I n ): 63 A Rated Short-Circuit Capacity: (230 / 400 V AC) 25 kA Rated Conditional Short-Circuit Current (I nc ): 25 kA Rated Frequency (f): 50 / 60 Hz Power Loss: at Rated Operating Conditions per Pole 3.8 W Number of Contacts CO: 0 Number of Contacts NC: 0 Number of Contacts NO: 3 Overvoltage Category: III Housing material: Insulation Group I, RAL 7035 Ambient Air Temperature: Operation -25 ... +55 °C; Storage -40 ... +70 °C Degree of Protection: IP20; Enclosure with Cover IP40 Pollution Degree: 3 Environmental Conditions: 28 cycles; with 55 °C / 90-96 %; and 25 °C / 95-100 % Resistance to Vibrations: 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz Resistance to Shock acc. to IEC 60068-2-27: 25g 2 shocks 13 ms Width in Number of Modular Spacings: 3 Product Net Width: 52.5 mm Product Net Height: 88 mm Product Net Depth / Length: 69 mm Built-In Depth ( t 2 ): 69 mm Declaration of Conformity - CE: 2CDK440034D2703 Instructions and Manuals: 2CDS207104P0003 Mounting Type: DIN-Rail Mounting Position: any ETIM 9: EC001047 - Selective main line circuit breaker UNSPSC: 39122233 eClass: V11.0 : 27142301 Object Classification Code: Q Standards: IEC/EN 60947-3 Certification Agency: IEC; EN Standardization Body: EN; IEC

HS Code

8536.90

• EAN 4016779904230
• SAP 1000637672
• Code 8401617
