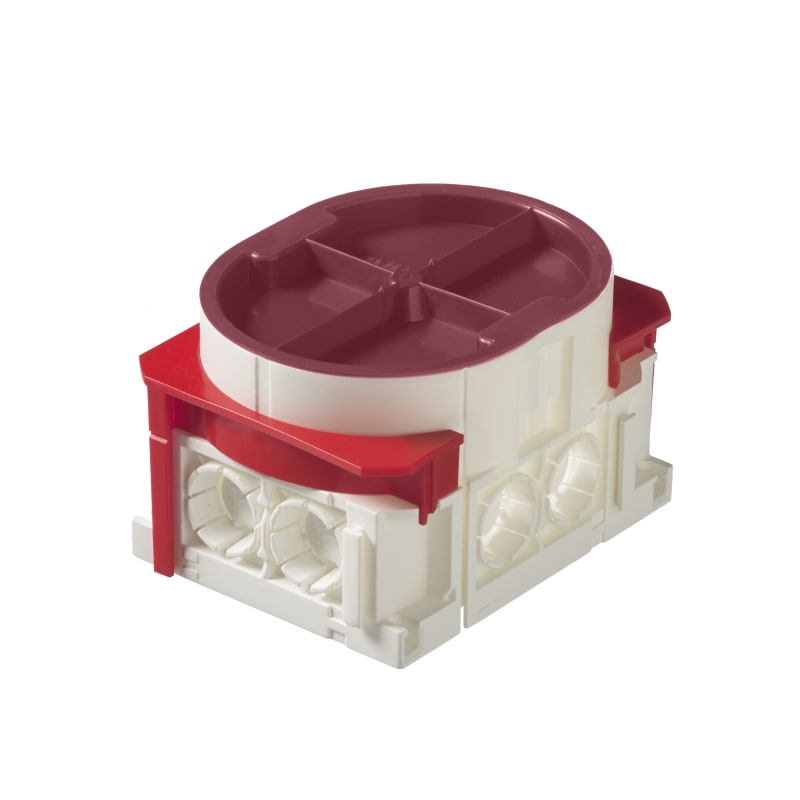

WALL BOX 1,5 AU81 (2TKA00003222)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2TKA00003222 — The box is mentioned for flat socket outlet ( for example 302EUJT ) installations with the flexible pipe. There is six knock outs for 16 mm pipes and two for the 20 mm pipe. In the bottom there is two knock outs for the bottom inlets. The mounting box includes two red half circles enabling installation on boards with a thickness of 12- 26 mm. Made of halogen free material (IEC/61249-2-21) and fulfills the requirements of the glow wire test according to the standard IEC/EN60670: 2005 (850 °C).
Technical Specifications
- Manufacturer part number (MPN)
- 2TKA00003222
- EAN / GTIN
- 6438199004839
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Application
- None
- Model Number
- One and a half
- Number of Poles
- 0P
- Number of Conduit Inlets
- 8
- Number of Inlet Inserts Included
- 0
- Design
- Device Connection Box (Round / Square)
- Cover Mounting Type
- Snap On
- Switching Equipment Mounting Type
- Screw
- Includes
- None
- Shape
- Rectangular
- Surface Finishing
- Untreated
- Material
- Plastic
- Color
- White
- Number of Gangs
- 1-gang
- Degree of Protection
- IP3X
- Product Net Width
- 74 mm
- Product Net Height
- 0.057 m
- Product Net Depth / Length
- 96 mm
- Dimension Diagram
- 9AKK108470A2455
- Declaration of Conformity - CE
- 9AKK108467A7115
- Instructions and Manuals
- 9AKK107045A2383
- Mounting Type
- Flush mounted (plaster)
- ETIM 9
- EC002601 - Box/housing for built-in mounting in the wall/ceiling
- Mounting method
- Flush-mounted
- Model
- One and a half
- Provided with revolving ring
- No
- Couplable
- Yes
- Equipped with
- None
- Length
- 96 mm
- Width
- 74 mm
- Depth
- 96 mm
- Inner depth
- 54 mm
- Suitable for wall/board thickness
- 12–36 mm
- For number of electric fittings
- 1
- Mounting switching equipment
- Screwing
- With screws
- Yes
- Housing feed-through by break-out opening
- Yes
- Housing feed-through by seal membrane
- No
- Housing feed-through by nozzle
- No
- Housing feed-through by step membrane
- No
- For tube diameter
- 16 mm
- Pipe locking
- Yes
- Pipe locking optional
- No
- Inlet from the rear
- Yes
- Number of inlets
- 8
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- White
- Cover model
- Construction protective cover
- Transparent cover
- No
- Cover attachment
- Snapped on
- Sealable
- No
- Circuit integrity
- None
- With screening
- No
- Air tight
- No
- Clamp position fixed
- No
- Luminaire hook mounting
- No
- Nozzle
- None
- With nail lugs
- Yes
- Special application
- None
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 6438199004839
- SAP 1200005434
- Code 8496603
Product Documentation
