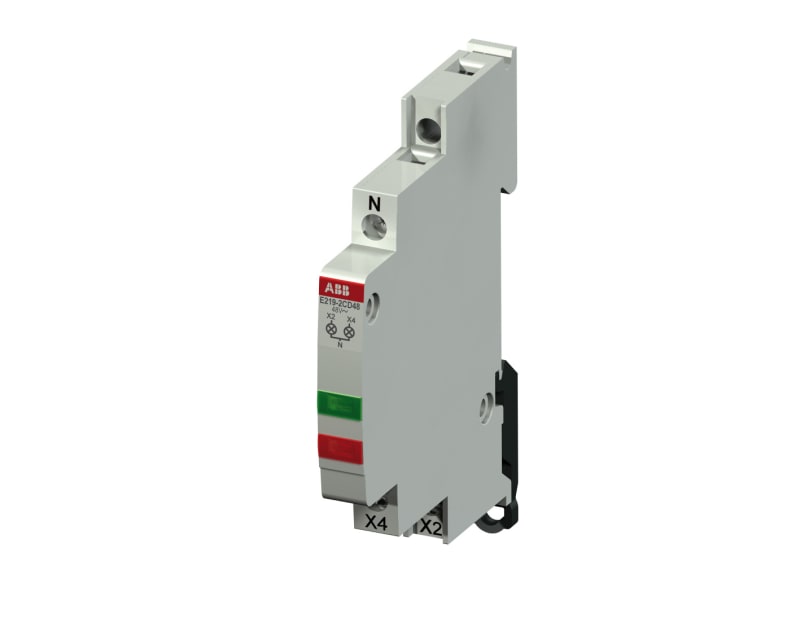

ABB E219-2CD multi indicator light with 2 red, green LEDs Voltage range = 115-230 VAC Module width 0,5
Pricing
Request a quote
We reply within 24 hours
Overview
ABB E219-2CD multi indicator light with 2 red, green LEDs Voltage range = 115-230 VAC Module width 0,5 is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 10 pcs; Tightening Torque: 1.2-1.5 N·m; Lamp Type: LED; Switch Type: Double Interrupting Contacts; Material of Conductor: Copper.
Technical Specifications
- Manufacturer part number (MPN)
- E219-2CD
- EAN / GTIN
- 7612271413330
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Number of LEDs
- 2
- Tightening Torque
- 1.2-1.5 N·m
- Lamp Type
- LED
- Switch Type
- Double Interrupting Contacts
- Material of Conductor
- Copper
- Remarks
- Sealable in the On and Off positions
- Lamp Color
- Red / Green
- Connecting Capacity
- Solid 1x1…6 mm²; Solid 2x2.5 mm²; Flexible 1x0.75…2x2.5 mm²
- Service Life
- LED Indicator 50000 hour
- Short-Circuit Current Rating (SCCR)
- 3 kA
- Rated Voltage (U r )
- 230 V
- Rated Operational Voltage
- 115 ... 230 V AC
- Rated Insulation Voltage (U i )
- 250 V
- Voltage Range
- 115 ... 250 V AC
- Rated Impulse Withstand Voltage (U imp )
- 4 kV
- Auxiliary Voltage AC/DC
- LED Indicator 115...250 V AC
- Input Voltage Type
- AC
- Rated Current (I n )
- 16 A
- Rated Frequency (f)
- 50/60 Hz
- Power Loss
- Total 0.47-1 W
- Power Watt
- 0.8 W
- Color
- Green, red
- Ambient Air Temperature
- Operation -25...+55 °C; Storage -40...+70 °C
- Environmental Information
- 2CCC441002C0201
- Width in Number of Modular Spacings
- 0.5
- Product Net Width
- 9 mm
- Product Net Height
- 85 mm
- Product Net Depth / Length
- 68 mm
- Built-In Depth ( t 2 )
- 68 mm
- EPLAN Data
- 9AAC407653_EPLAN
- CB Certificate
- 9AKK108466A3847
- Declaration of Conformity - CE
- 2CCC441015D0201
- Declaration of Conformity - UKCA
- 9AKK108467A6138
- VDE Certificate
- 9AKK108466A3837
- ETIM 9
- EC001657 - Indicator light for distribution board
- UNSPSC
- 39121534
- eClass
- V11.0 : 27142324
- Object Classification Code
- P
- Standards
- EN60068-2-1; EN60068-2-2; EN60068-2-30; DIN EN 62094-1; UL508
- Colour calotte
- Green
- Max. lamp power
- 0.8 W
- Voltage type
- AC
- Country of origin
- Switzerland
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7612271413330
- SAP 1000406564
- Code 81122652
Product Documentation
