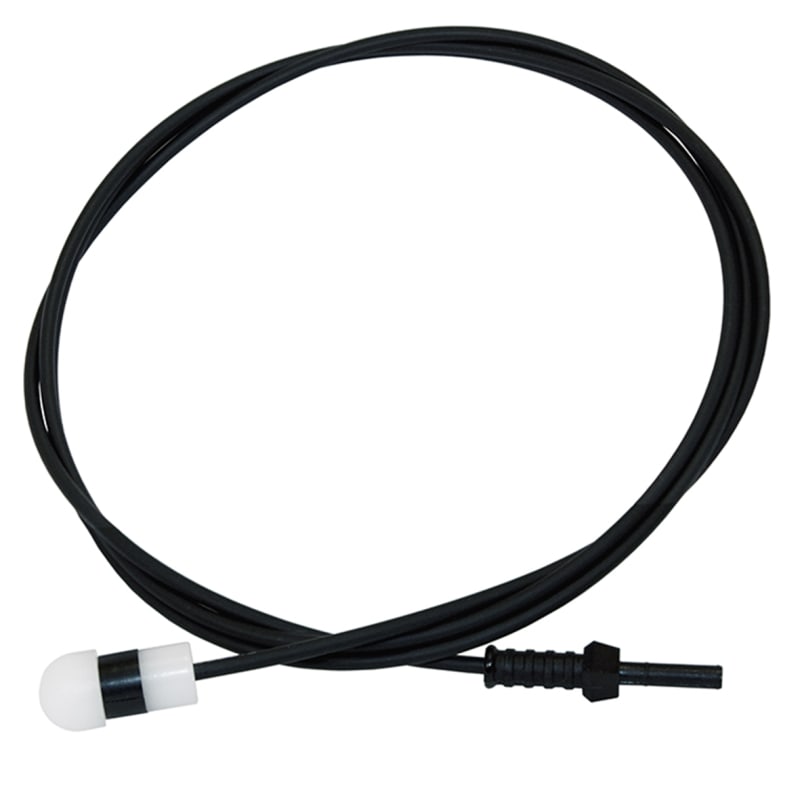

Detector TVOC-2-DP4 4M
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB TVOC-2-DP4 — The TVOC-2-DP4 Detector Cable 4 m is a key accessory to the TVOC-2 Arc Guard System. The detectors are installed in the switchgear panels to monitor for any unwanted arc flashes. The detectors consists of a fiber optic cable connected to a lens that can detect light in a 180 degree angle at distances of 3 m, depending on the light intensity.
Technical Specifications
- Manufacturer part number (MPN)
- TVOC-2-DP4
- EAN / GTIN
- 7320500382288
- Sales unit
- pcs
- Country of Origin
- Sweden
- Lead Time
- 0 day
- Product Sales Status
- Active
- Configuration Only
- No
- Criticality
- No
- Note
- No
- Product Availability Class
- Standard delivery time
- Storage Location
- 4001
- Environmental Product Declaration - EPD
- No certification needed
- Ambient Air Temperature
- Operation -25 ... +70 °C; Storage -25 ... +85 °C
- Environmental Information
- 1SFC170003D0201
- Product Net Width
- 350 mm
- Product Net Height
- 20 mm
- Product Net Depth / Length
- 300 mm
- Additional Information
- DETECTOR suitable for TVOC-2
- Product Main Type
- TVOC-2
- Suitable For
- TVOC-2
- Suitable for Product Class
- Arc Monitor
- Mounting Type
- Connected to main unit or extension module
- Number of Auxiliary Contacts CO (SPDT)
- 0
- Number of Auxiliary Contacts NC
- 0
- Number of Auxiliary Contacts NO
- 0
- BV Certificate
- 39407_B1
- CSA Certificate
- UL_20110511-E155370
- cULus Certificate
- UL_20110511-E155370
- Data Sheet, Technical Information
- 1SFC170001C0201
- Declaration of Conformity - CE
- 2CMT005420
- DNV Certificate
- DNV_E-12926
- EAC Certificate
- 9AKK106713A1450
- UL Certificate
- UL_20110511-E155370
- Instructions and Manuals
- 1SFC170011M0201
- Instructions and Manuals (Part 2)
- 1SFC170011M0201
- ETIM 9
- EC002911 - Arc detection and mitigation system
- IDEA Granular Category Code (IGCC)
- 6958 >> Fiber optic detector
- Object Classification Code
- B
- UNSPSC
- 43223319
- WEEE Category
- Product Not in WEEE Scope
- eClass
- V11.0 : 27142214
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 7320500382288
- SAP 1000407863
- Code 81094861
Product Documentation
