ABB

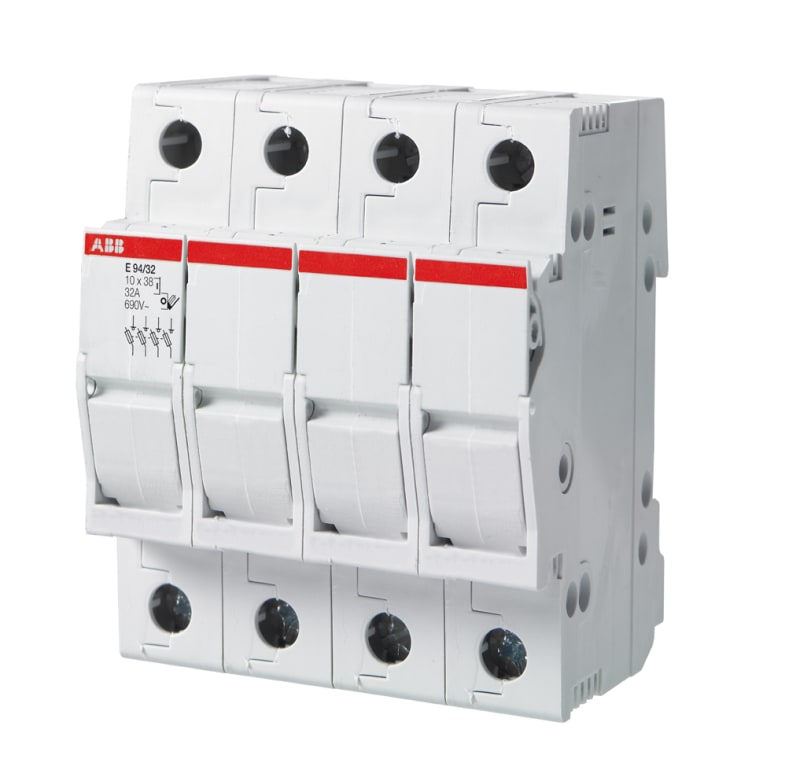

FUSE Holder E 94/32 (2CSM204723R1801)
Part number2CSM204723R1801EAN / GTIN8012542047230HS code8536.90
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSM204723R1801 — E 94/32 is a fuseholder for overcurrent and short circuit protection. No blown fuse indicator.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSM204723R1801
- EAN / GTIN
- 8012542047230
- HS code
- 8536.90
- Sales unit
- pcs
- Number of Protected Poles
- 4
- Number of Poles
- 4P
- Tightening Torque
- 2...2.5 N·m
- Utilization Category
- Connecting and disconnecting under no-load conditions - occasional actuation (AC-20B); Switching of mixed resistive and inductive loads, including moderate overloads - occasional actuation (AC-22B)
- Lock Type
- Padlockable When Open
- Sealing Type
- Sealing Wire
- Material of Conductor
- Copper
- Options Provided
- No
- Recommended Screw Driver
- Pozidriv 2
- Shock and Vibration Withstand acc. to IEC 61373
- Category 1, Class B
- Connecting Capacity
- Rigid 2x5 mm²; Stranded 2x2-5 mm²
- Fuse Size
- 10x38 mm
- Operating Humidity (RH amb )
- Maximum at +20 °C 90 %
- Rated Operational Current AC (I e )
- 32 A
- Rated Voltage (U r )
- acc. To IEC 400 V; acc. To UL 690 V
- Rated Operational Voltage
- AC-20B 690 V; |AC-22B 400 V
- Rated Insulation Voltage (U i )
- 1 kV
- Rated Frequency (f)
- 50/60 Hz
- Power Loss
- Total 12 W; at Rated Operating Conditions per Pole 3 W
- Connecting Capacity UL/CSA
- Rigid 2x10 AWG; Stranded 2x14-10 AWG
- Ambient Air Temperature
- Operation -5...+40 °C; Storage -25...+70 °C
- Degree of Protection
- IP20
- Maximum Operating Altitude Permissible
- 2000 m
- Resistance to Vibrations
- 1 mm 2 … 13 Hz
- Resistance to Shock acc. to IEC 60068-2-27
- 15g 18 shocks 13 ms
- Environmental Information
- See RoHS Information
- Width in Number of Modular Spacings
- 4
- Product Net Width
- 70 mm
- Product Net Height
- 85 mm
- Product Net Depth / Length
- 64 mm
- Built-In Depth ( t 2 )
- 64 mm
- BV Certificate
- 9AKK108467A0330
- CCC Certificate
- 9AKK108467A0340
- Declaration of Conformity - CE
- 9AKK106713A5623
- IMQ Certificate
- 9AKK108467A0324
- KRS Certificate
- 9AKK108467A0337
- LR Certificate
- 9AKK107991A7313
- UL Certificate
- 9AKK107992A1039
- Mounting Type
- DIN-Rail
- ETIM 9
- EC002705 - Holder for cylindrical fuse
- UNSPSC
- 39122233
- eClass
- V11.0 : 27142121
- IDEA Granular Category Code (IGCC)
- 5291 >> Fuse switch disconnector
- Object Classification Code
- F
- Standards
- IEC 60947-3
- Certification Agency
- IMQ; BV; Korean register; CCC; EAC
- Standardization Body
- UL
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542047230
- SAP 1200460252
- Code 82552160
Product Documentation
Document preview: ABB 2CSM204723R1801 — OEM Product Page
