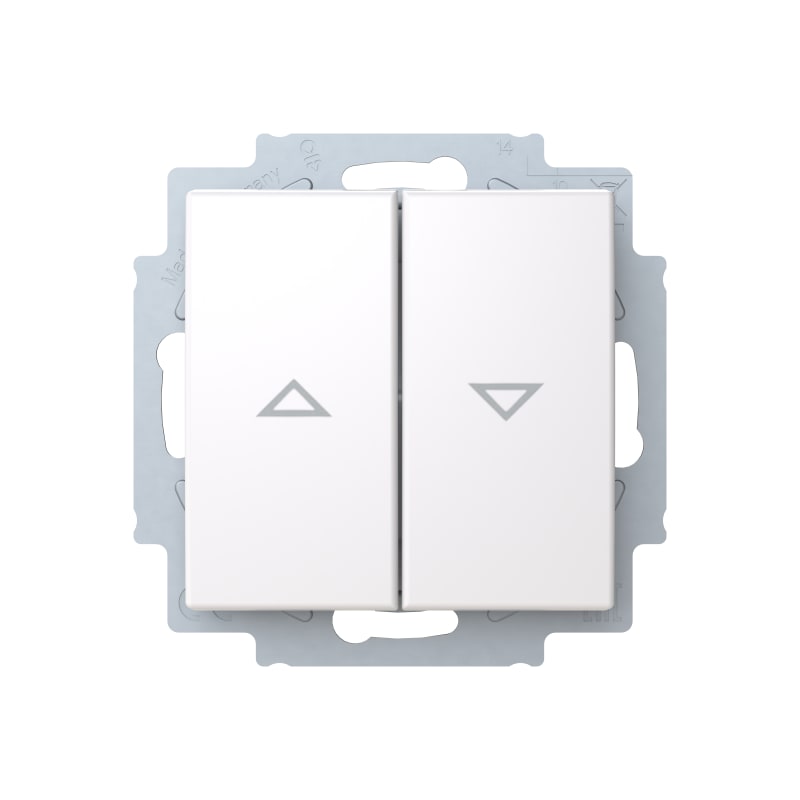

ABB 2020/4 UC-916-510 with interlock
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 2020/4 UC-916-510 with interlock is listed under Electrical Components. HS code: 8536.90; Sales unit: pcs; Mounting Type: Flush Mounted; Type of Fastening: Mounting with Claw; Mounting with Screw; Degree of Protection: IP20; Terminal Type: Screw Terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 2020/4 UC-916-510
- EAN / GTIN
- 4011395316214
- HS code
- 8536.90
- Sales unit
- pcs
- Mounting Type
- Flush Mounted
- Type of Fastening
- Mounting with Claw; Mounting with Screw
- Modular Components Included
- Cover with Flush Mounted Insert and Mounting Plate
- Degree of Protection
- IP20
- Number of Poles
- 1P
- Number of Buttons
- 2
- Terminal Type
- Screw Terminals
- Actuator Type
- Rocker
- Rated Voltage (U r )
- 250 V
- Rated Current (I n )
- 10 A
- Maximum Switching Power
- LEDi 100 V·A
- Design Range
- Saga
- Surface Finishing
- Untreated; Glossy
- Material
- Thermoplastic
- RAL Number
- Similar to RAL 9003
- Color
- white
- Product Net Width
- 70.8 mm
- Product Net Height
- 70.8 mm
- Product Net Depth / Length
- 46.2 mm
- Dimension Diagram
- 2CKA000097E3970
- End Of Life Disassembling Instructions
- 9AKK108472A9917
- Environmental Product Declaration - EPD
- 9AKK108470A4118
- Declaration of Conformity - CE
- 2CKA100000E4782
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000044 - Window blind switch
- eClass
- V11.0 : 27144025
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011395316214
- SAP 1200706369
- Code 83745777
Product Documentation
