ABB VFI online double conversion,400V,9000W,RS232,USB,COM slot,includes 46X8AH batteries mounted linked and tested 4NWP103584A1020
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 4NWP103584A1020 — VFI online double conversion,400V,9000W,RS232,USB,COM slot,includes 46x8Ah batteries mounted linked and tested.
Technical Specifications
- Manufacturer part number (MPN)
- 4NWP103584A1020
- EAN / GTIN
- 7640169261428
- Sales unit
- pcs
- Product Net Width
- 345 mm
- Product Net Height
- 720 mm
- Product Net Depth / Length
- 710 mm
- Apparent Power Output
- 10 V·A
- Battery Chemical Composition
- Lead-Acid
- Battery Type
- Portable
- Battery Weight
- 2.5 kg
- Communication Interface
- USB, RS-232
- Connection Type
- Fixed Connection
- Input Voltage (U in )
- 380 V; 400 V; 415 V
- Input Voltage Type
- AC
- Number of Batteries
- 46
- Number of Outputs
- Fixed Connections 1
- Number of Phases
- 3-phase Primary; 3-phase Secondary
- Options Provided
- Auto shut down function; Potential free switch contact; Network-management
- Power Loss
- at Average Load Use 228 W
- Rated Frequency (f)
- Primary 50 Hz; Primary 60 Hz; Secondary 50 Hz; Secondary 60 Hz
- Rated Output Power
- 9 kW
- Declaration of Conformity - CCC
- No certification needed
- Declaration of Conformity - CE
- 4NWD003874
- ETIM 9
- EC000382 - UPS
- WEEE Category
- 4. Large Equipment (Any External Dimension More Than 50 cm)
- WEEE B2C / B2B
- Business To Business
- CN8
- 85044000
- UNSPSC
- 39121004
- Object Classification Code
- G
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 7640169261428
- SAP 1200640733
- Code 83056559
Product Documentation
More from ABB
ABB
Impressivo In. TELE Angle for DKS Anthracite
2CKA001724A4253
ABB
CR59 Frame FOR Recessed Mounting 1350X1450X75
2CPX052411R9999
ABB
ABB RHE T7 F/W Door-Mounted Rotary Handle for Tmax T7
RHE T7 F/W NORM. RETURNED
ABB
Installation Relay E297-16-10/115
2TAZ311000R2021
ABB

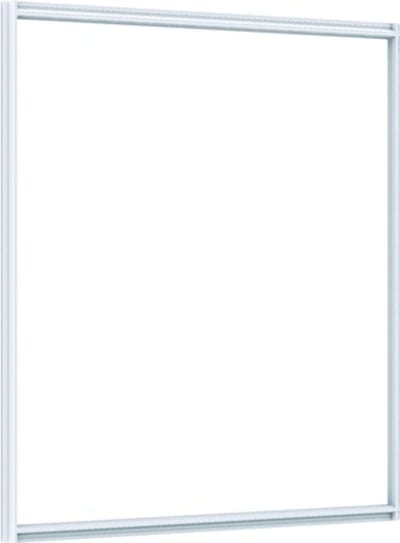

Cover frame TZP405 750X1000X30MM
2CPX010647R9999
ABB

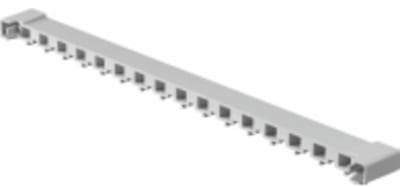

Mistral 65 Montasjebru TB18
1SPE007715F0753
ABB

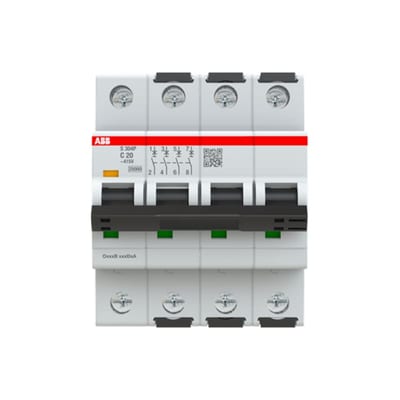

ABB S304P-C20 Miniature Circuit Breaker — 4P, Type C, 20 A, 25 kA
ABB

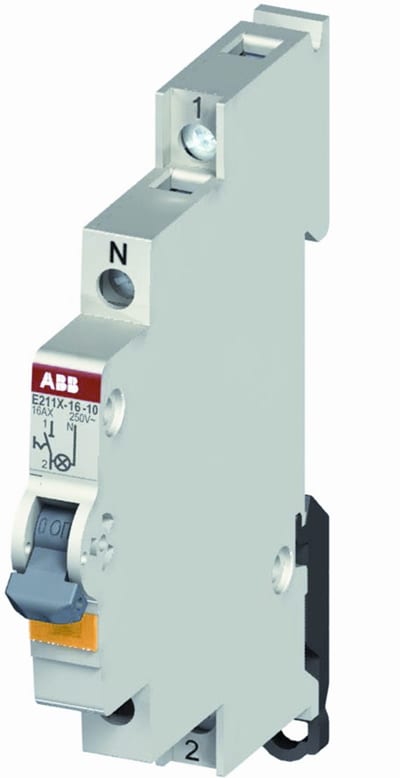

Switch FOR DIN-RAIL E211X-16-10
