Residual Current Circuit Breaker WITH Overcurrent DS201M B16/100MA
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSR275180R2165 DS201 M B16 A100, 10kA, 2mod, B kar, 16A, 1 pole+N, 100mA.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSR275180R2165
- EAN / GTIN
- 8012542771012
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Power loss
- 4.5 W
- Number of poles (total)
- 2
- Number of protected poles
- 1
- Rated voltage
- 240 V
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated current
- 16 A
- Rated fault current
- 0.1 A
- Leakage current type
- A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Disconnection characteristic
- Undelayed
- Voltage type
- AC
- Release characteristic
- B
- Concurrently switching neutral conductor
- Yes
- With interlocking device
- No
- Overvoltage category
- 3
- Pollution degree
- 2
- Ambient temperature during operating
- -25–55 °C
- Width in number of modular spacings
- 2
- Built-in depth
- 69 mm
- Anti-nuisance tripping version
- No
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1–25 mm²
- Connectable conductor cross section multi-wired
- 0.75–16 mm²
- Flush-mounted installation
- No
- Mounting method
- DIN rail
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542771012
- SAP 1200385255
- Code 82430879
Product Documentation
More from ABB
ABB
ABB 2CKA001754A4443 for vertical or horizontal installation.
ABB
ABB VI UPS PowerValue 11LI Up 600VA/360W;230V;50/60Hz;simulated sinewave;2 min 4NWP100170R0001
ABB
ABB Loose protection XT2, In=40A, 3 pole, EL, Ekip Hi-Touch LSI, Un=690 volt AC
Ekip Hi-Touch LSI In=40A XT2 3p
ABB
ABB VFI online double conversion,400V,9000W,RS232,USB,COM slot,includes 46X8AH batteries mounted linked and tested 4NWP103584A1020
ABB
Impressivo In. TELE Angle for DKS Anthracite
2CKA001724A4253
ABB

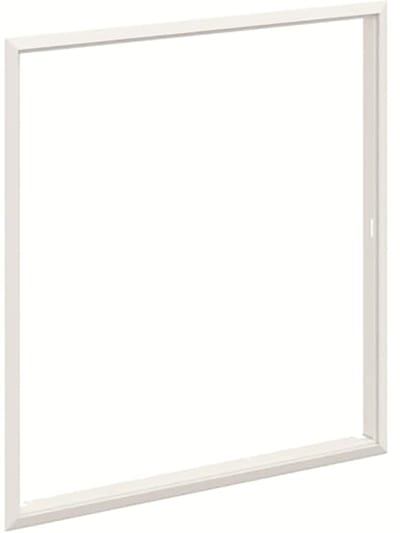

CR59 Frame FOR Recessed Mounting 1350X1450X75
2CPX052411R9999
ABB

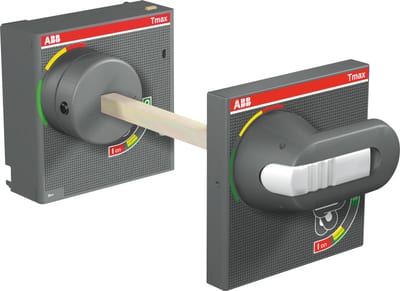

ABB RHE T7 F/W Door-Mounted Rotary Handle for Tmax T7
RHE T7 F/W NORM. RETURNED
ABB

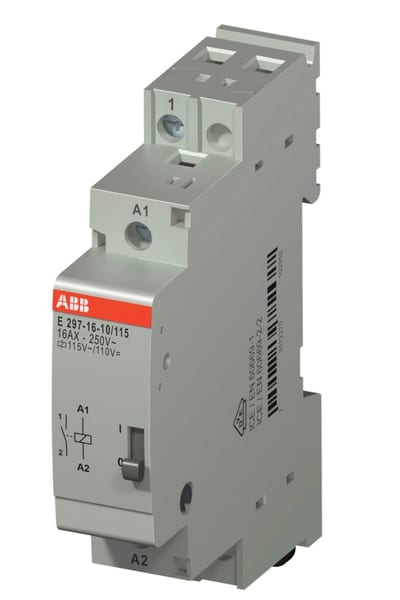

Installation Relay E297-16-10/115
