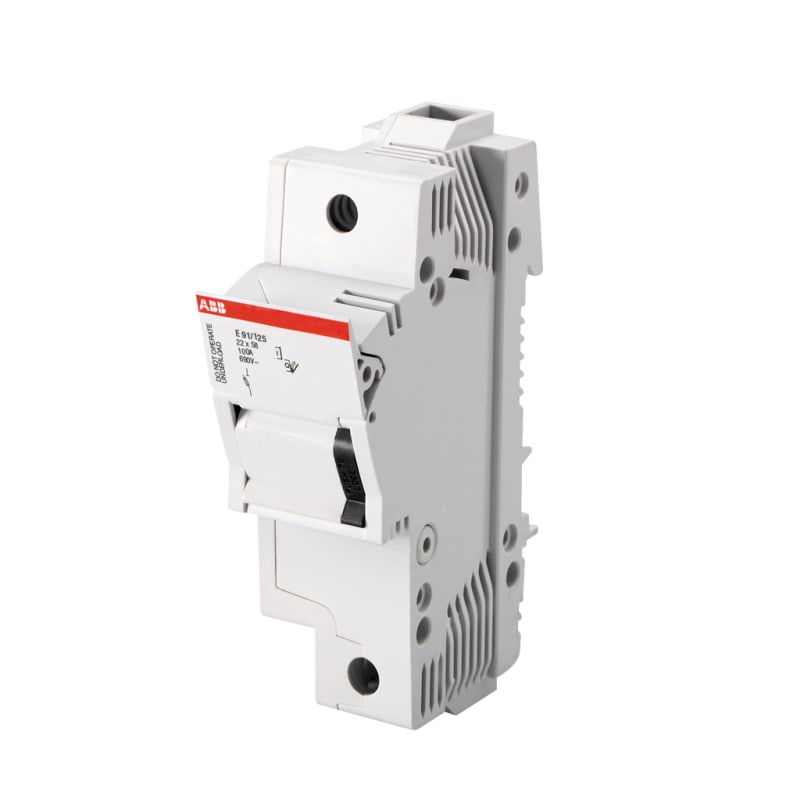

FUSE Holder E 91/50S
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSM237202R1801 — E 90 50/125 fuse holders are appropriate to protect against overloads and short circuits. They are designed for use with cylindrical fuses from 50 to 125 A.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSM237202R1801
- EAN / GTIN
- 8012542562924
- HS code
- 8536.90
- Sales unit
- pcs
- Suitable For
- E 90
- Suitable for Product Class
- Fuse holders
- Number of Protected Poles
- 1
- Number of Poles
- 1P
- Tightening Torque
- 3...3.5 N·m
- Utilization Category
- Connecting and disconnecting under no-load conditions - occasional actuation (AC-20B)
- Lock Type
- Padlockable
- Sealing Type
- Sealing Wire
- Material of Conductor
- Copper
- Options Provided
- With LED
- Recommended Screw Driver
- Pozidriv 2
- Connecting Capacity
- Rigid 2.5 ... 35 mm²; Stranded 2.5 ... 25 mm²
- Fuse Size
- 14x51 mm
- Operating Humidity (RH amb )
- Maximum at +20 °C 90 %
- Rated Operational Current AC (I e )
- 50 A
- Rated Voltage (U r )
- acc. To IEC 690 V; acc. To UL 690 V
- Rated Operational Voltage
- AC-20B 690 V
- Rated Insulation Voltage (U i )
- 1 kV
- Rated Frequency (f)
- 50/60 Hz
- Power Loss
- Total 5 W; at Rated Operating Conditions per Pole 5 W
- Ambient Air Temperature
- Operation -5 ... +40 °C; Storage -25 ... +70 °C
- Degree of Protection
- IP20
- Resistance to Vibrations
- 1 mm 2 … 13 Hz
- Resistance to Shock acc. to IEC 60068-2-27
- 15g 18 shocks 11 ms
- Environmental Information
- See RoHS Information
- Width in Number of Modular Spacings
- 1.5
- Product Net Width
- 26.7 mm
- Product Net Height
- 96.5 mm
- Product Net Depth / Length
- 73.26 mm
- Built-In Depth ( t 2 )
- 73.26 mm
- BV Certificate
- 9AKK108467A0329
- CCC Certificate
- 9AKK108467A0342
- Declaration of Conformity - CE
- 2CSC444009D2701
- KRS Certificate
- 9AKK108467A0338
- LR Certificate
- 9AKK108467A0332
- RINA Certificate
- 9AKK107992A0866
- UL Certificate
- 9AKK107992A1040
- Mounting Type
- DIN-Rail
- ETIM 9
- EC002705 - Holder for cylindrical fuse
- UNSPSC
- 39121624
- eClass
- V11.0 : 27142121
- IDEA Granular Category Code (IGCC)
- 4974 >> Holder for cylindrical fuse
- Object Classification Code
- F
- Certification Agency
- BV; Korean register; CCC; EAC
- Standardization Body
- UL
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542562924
- SAP 1200640851
- Code 83054139
Product Documentation
