SOLO 2/4V with TERM Black 6128/28-885-500
Pricing
Request a quote
We reply within 24 hours
Product Description

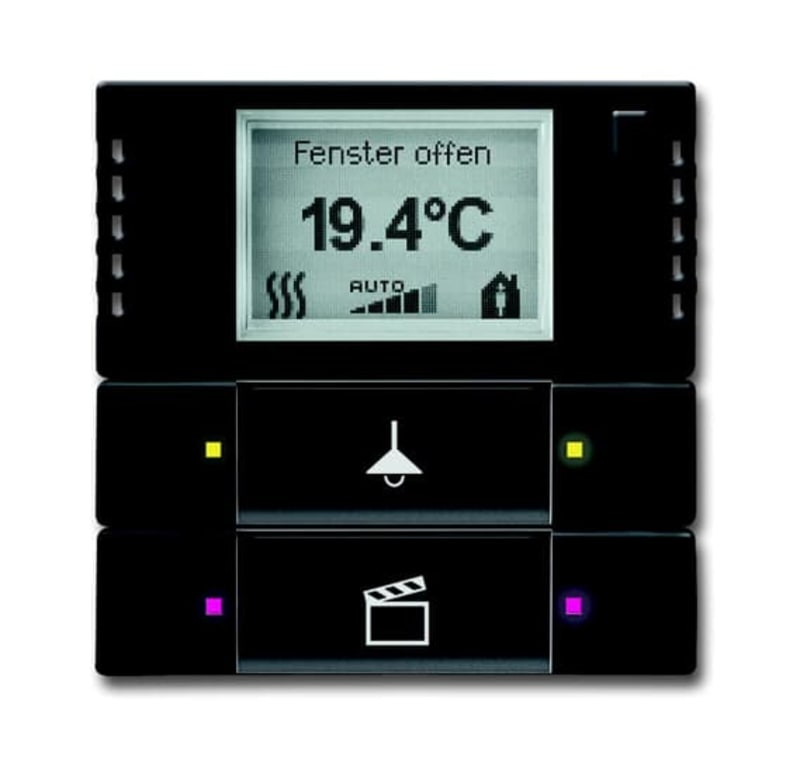

ABB 2CKA006134A0339 — With labelling field. For ABB i-bus® KNX bus coupler 6120/12-101, 6120/13. Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green. Rocker switch left/right (switching/dimming/blind/value sender/light scenes/fan function). Master/slave configuration. With base-load operation. The controller is a constant room temperature controller for fan convectors (fan coils) in 2-pipe and 4-pipe systems and conventional heating or cooling systems. The fan stage can be switched manually or in automatic mode. Transparent labelling sheet with standard symbols included in delivery. Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%.
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA006134A0339
- EAN / GTIN
- 4011395213896
- HS code
- 8536.90
- Sales unit
- pcs
- Mounting Type
- Flush-mounted
- Modular Components Included
- Cover Plate
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Temperature Class Default
- I
- Data Sheet, Technical Information
- 2CKA001373B8806
- Number of LEDs
- 1
- Number of Digital Inputs
- 0
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Connection Type
- Pin
- Display Type
- LCD
- Screen Type
- Flat
- Design Range
- Platform 63; future linear; Busch-axcent; carat
- Design Range Variant
- future linear - matt; Busch-axcent; Busch-axcent pur
- Surface Finishing
- Lacquered; Matt
- Material
- Plastic; Thermoplastic
- RAL Number
- Similar to RAL 9005
- Color
- black matt
- Product Net Width
- 71 mm
- Product Net Height
- 71 mm
- Product Net Depth / Length
- 32 mm
- Built-In Depth ( t 2 )
- 22 mm
- Screen Size
- 1.57 in
- Declaration of Conformity - CE
- 2CKA100000E1158
- Declaration of Conformity - UK-PSTI
- 2CKA410000E0089
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001101 - Room temperature controller for bus system
- eClass
- V11.0 : 27143133
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011395213896
- SAP 1000759997
- Code 8526726
Product Documentation
