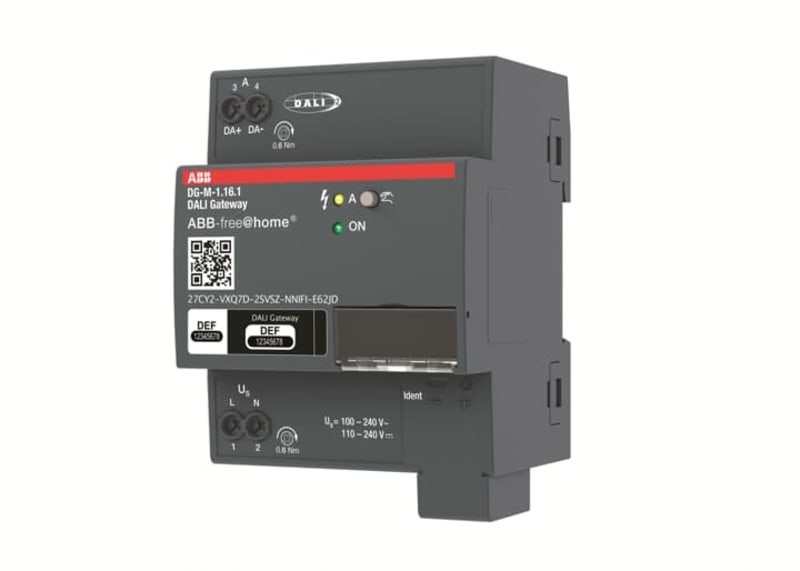

Daligate F@h DG-M-1.16.1
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CDG510012R0011 — DALI gateway MDRC for ABB-free@home.For controlling DALI devices via free@home. One DALI output for max. 16 DALI devices. Supports the control of 0 and DT8 (color temperature Tc or RGB(W) according to EN 62386-209). Integrated DALI power supply for the DALI devices. Each DALI device can be controlled separately or via free@home groups and scenes. Staircase lighting, blocking and forced functions are available. For single master operation. Commissioning is carried out via the free@home user interface. DALI addressing is automatic. Programming only when bus voltage is applied via the web interface of the System Access Point.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDG510012R0011
- EAN / GTIN
- 4016779067409
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941221P0001
- Wiring Diagram
- 9AKK108469A7049
- Mounting Type
- DIN-Rail
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 9AKK107680A3585
- Communication Interface
- DALI
- Number of Outputs
- 1
- Number of LEDs
- 2
- Compatible Bus Systems
- DALI; free@home (TP)
- Product Range
- free@home
- Software Updateable
- Yes
- Manual Operation
- No
- Number of Batteries
- 0
- Auxiliary Voltage AC/DC
- 100 ... 240 V AC
- Input Voltage (U in )
- 85 ... 264 V AC
- Power Loss
- 2 W; Total 2 W
- Color
- grey
- Width in Number of Modular Spacings
- 4
- Product Net Width
- 70 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 63.5 mm
- Dimension Diagram
- 2CDC072033F0015
- EPLAN Data
- 9AAF603839_EPLAN
- CAD Dimensional Drawing
- 2CDC072033F0015
- CB Certificate
- 9AKK108466A1905
- Declaration of Conformity - CE
- 2CKA100000E3555
- Declaration of Conformity - UK-PSTI
- 2CKA410000E0422
- EU Data Act Compliance Declaration
- 9AKK108471A4355
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001099 - System interface/media gateway for bus system
- eClass
- V11.0 : 27143136
- UNSPSC
- 43222605
- IDEA Granular Category Code (IGCC)
- 6809 >> System interface/media gateway for bus system
- Model
- Light system interface/DALI
- Operating voltage
- 230 V
- Bus system KNX
- No
- Bus system radio frequency
- No
- Bus system Powernet
- No
- Other bus systems
- DALI
- Bus system LON
- No
- Demounting protection
- No
- Radio interface
- No
- IR interface
- No
- Provider dependent
- No
- Updateable
- Yes
- Visualization
- No
- Web-Server
- No
- With LED indication
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Radio frequency bidirectional
- No
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 4016779067409
- SAP 1200458059
- Code 82532880
Product Documentation
