CEM11-FBP.20 J.F OVERV.
Pricing
Request a quote
We reply within 24 hours
Product Description

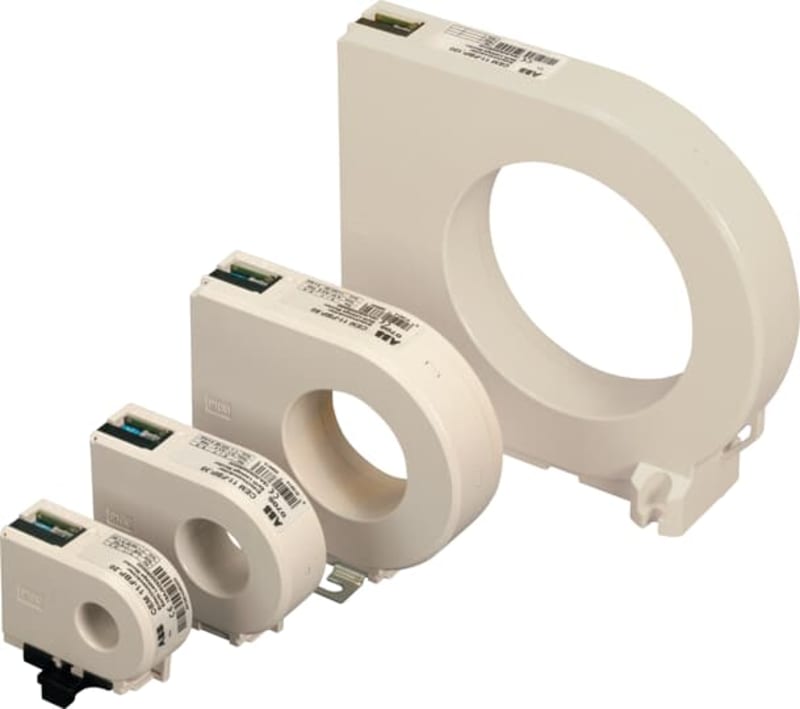

ABB 1SAJ929200R0020 — CEM11-FBP.20 Earth Leakage Monitor features a 20 mm diameter through-hole. A threshold can be set, upon violation of this threshold a binary signal is outputted.
Technical Specifications
- Manufacturer part number (MPN)
- 1SAJ929200R0020
- EAN / GTIN
- 4013614383533
- Sales unit
- pcs
- Product Net Width
- 76 mm
- Product Net Depth / Length
- 56 mm
- Product Net Height
- 31 mm
- Connecting Capacity
- 1x 0.75-1.5 mm²
- Mounting Position
- Any
- Mounting Type
- DIN-Rail with Adapter
- Mounting on DIN Rail
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Power Loss
- Approximately 0.2 W
- Rated Control Supply Voltage (U s )
- 24 V DC
- Rated Frequency (f)
- Main Circuit 50 / 60 Hz
- Recommended Screw Driver
- Pozidriv 1
- Setting Range
- 0.08 ... 1.7 A
- Standards
- IEC/EN 60947-1; IEC/EN 60947-4-1
- Suitable For
- UMC100-FBP; UMC100.3
- Suitable for Product Class
- Universal Motor Controllers
- Tightening Torque
- Auxiliary Circuit 0.6 ... 1 N·m; Control Circuit 0.6 ... 1 N·m
- Wire Stripping Length
- 7 mm
- Connecting Capacity UL/CSA
- Flexible with Ferrule 1x 18-16 AWG; Rigid 1x 18-16 AWG
- Degree of Protection
- IP20
- ATEX Certificate
- Not available
- Declaration of Conformity - CE
- 1SVD981041-00
- eClass
- V11.0 : 27242608
- E-Number (Norway)
- 4552504
- ETIM 6
- EC001604 - Fieldbus, decentr. periphery - communication module
- IDEA Granular Category Code (IGCC)
- 6312 >> Earth leakage devices
- Object Classification Code
- B
- UNSPSC
- 41113645
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 4013614383533
- SAP 1200640703
- Code 83056555
Product Documentation
More from ABB
ABB
Tenton 5/10V White MATT
SBC/U10.0.1-884
ABB
Cable Trunking set 25X60MM (1SL0353A00)
ABB

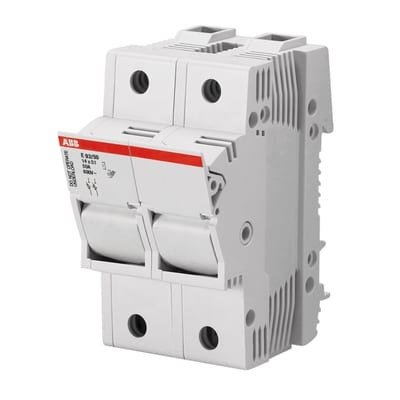

FUSE Holder E 92/50S
2CSM207032R1801
ABB

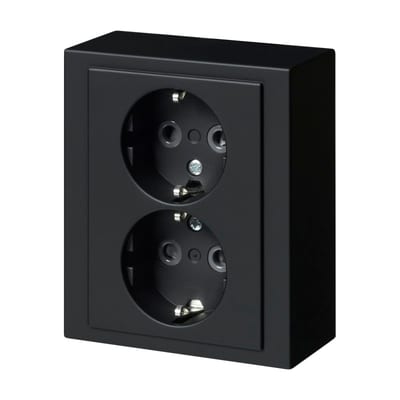

IMPRESSIVO Surface Double SOCKET Black Matte
2TKA00004442
ABB

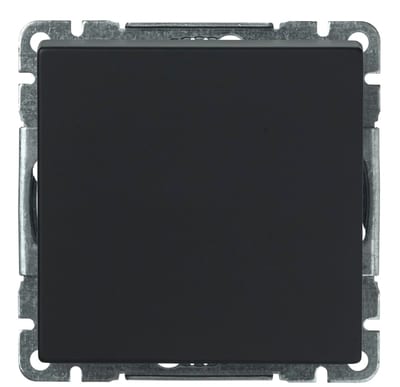

Impressivo Switch 6 Flush 1P/Two-Way Black Matte
2TKA00004297
ABB

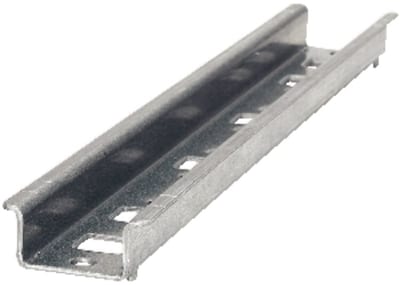

ED2 Din-rail 2FB 35X15MM
2CPX039382R9999
ABB

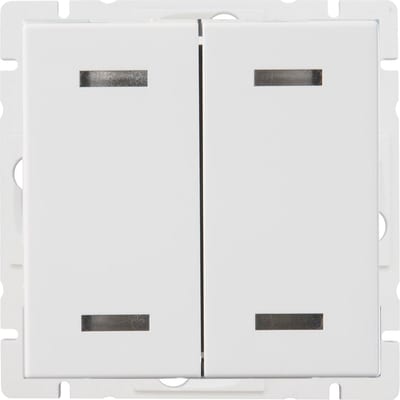

Impressivo Impulse Switch 4 Buttons White
2TKA00000915
ABB

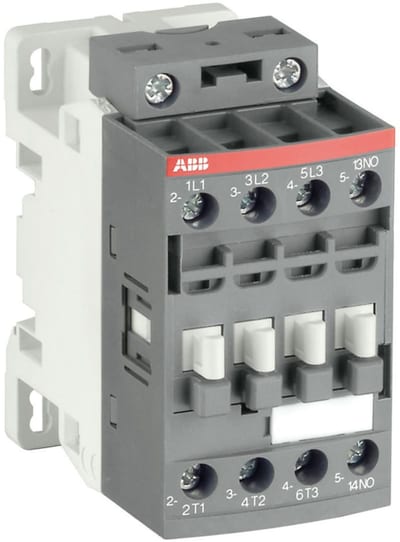

AF12-30-10-11 24-60VAC/20-60VDC (AF12-30-10-11 24-60V50/60HZ 20-60VDC)
