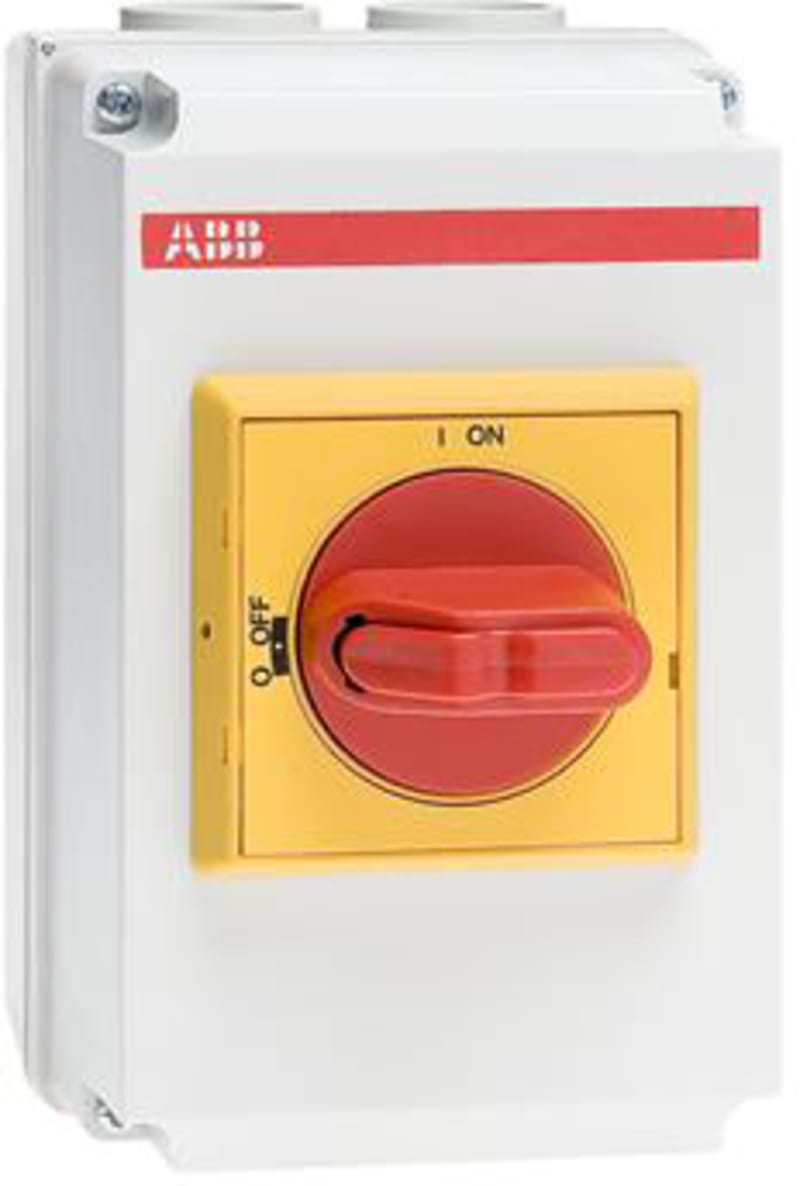

Safety Switch DC OTDCP16SA22MD
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB OTDCP16SA22MD — The enclosure in the OTDCP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked, and the interlock can be defeated with a special tool. Typical applications is solar panels, DC batteries, etc.
Technical Specifications
- Manufacturer part number (MPN)
- OTDCP16SA22MD
- EAN / GTIN
- 6417019610849
- Sales unit
- pcs
- Degree of Protection
- acc. to IEC 60529 IP65
- Product Net Width
- 108 mm
- Product Net Height
- 167 mm
- Product Net Depth / Length
- 142 mm
- Cable Entry Position
- Up/Down
- Cable Outlets Per Side
- 2xM20 / 2xM20
- Connecting Capacity Main Circuit
- Screw Clamp 2.5…16 mm²
- Conventional Thermal Current (I the )
- Fully Enclosed 16 A
- Enclosure Material
- Plastic
- Handle Color
- Red / Yellow
- Handle Type
- Selector
- Mounted Auxiliary Contacts
- 0 NO, 0 NC
- Mounting Type
- Base mounting
- Number of Poles
- 4P
- Power Loss
- at Rated Operating Conditions per Pole 0.15 W
- Rated Impulse Withstand Voltage (U imp )
- 8 kV
- Rated Insulation Voltage (U i )
- acc. to IEC/EN 60664-1 1000 V
- Rated Operational Current DC-21B (I e )
- (1000 V) 16 A
- Rated Operational Voltage
- Main Circuit 1000 V
- Rated Short-Circuit Making Capacity (I cm )
- (690 V AC) 0.71 kA
- Rated Short-time Withstand Current Low Voltage (I cw )
- for 1 s 0.5 kA
- Recommended Screw Driver
- Main Circuit Torx
- Special Functions
- Solar
- Standards
- IEC 60947-1, -3
- Terminal Type
- Screw Terminals
- Tightening Torque
- Main Circuit 1.2 … 1.4 N·m
- Wire Stripping Length
- Main Circuit 17 … 11 mm
- Declaration of Conformity - CE
- 1SCC340047D2702
- Object Classification Code
- Q
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- ETIM 10
- EC004963 - Switch disconnector (DC)
- UNSPSC
- 39122233
- eClass
- V11.1 : 27371403
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- E-Number (Norway)
- 1414515
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 6417019610849
- SAP 1000707206
- Code 8203380
