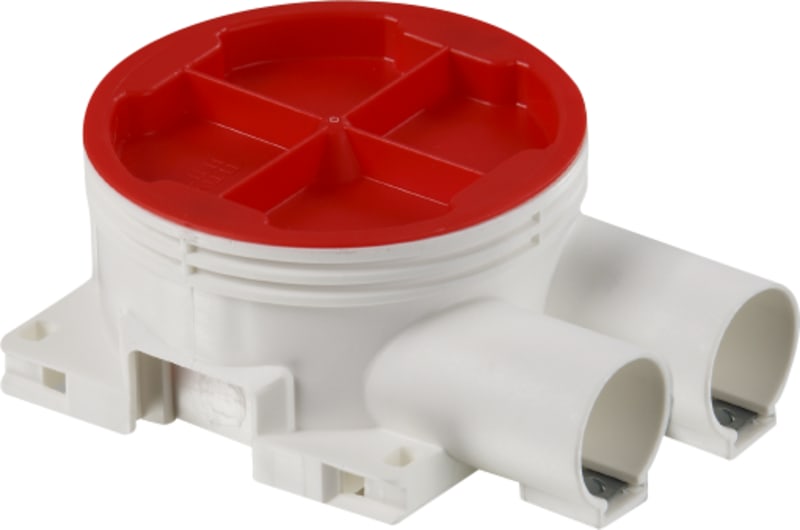

WALL BOX LOW 38 MM AU6.2 2-Run 20mm
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB AU6.2 — The box has 2 branch inlets with locking devices for D20 conduits. A separate inlet can be attached to the side opposite the fixed inlets. The bottom of the box has two inlets. Inlets cannot be attached to the sides of the box, but the sides can be used to connect boxes with each other using a PMR474 interconnector cut level with the bottom of the box. The hight of the box is 38 mm. Made of halogen free material (IEC/61249-2-21) and fulfills the requirements of the glow wire test according to the standard IEC/EN60670: 2005 (850 °C).
Technical Specifications
- Manufacturer part number (MPN)
- AU6.2
- EAN / GTIN
- 6410011523155
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Carbon Footprint (Full Lifecycle)
- 138.976492 kg CO₂ eq
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 94 %
- ABB Site Meeting Group Waste To Landfill Target
- No non-hazardous waste is sent to a landfill
- Sustainable Material Content in Packaging (wt. %)
- Recycled Cardboard - 75 %
- Extended Product Lifetime
- Product Modularity; Product Upgradability
- End Of Life Disassembling Instructions
- 9AKK108468A2670
- Environmental Product Declaration - EPD
- 9AKK108468A0929
- Application
- None
- Model Number
- Single
- Number of Poles
- 0P
- Number of Conduit Inlets
- 2
- Number of Inlet Inserts Included
- 2
- Design
- Device Connection Box (Round / Square)
- Cover Mounting Type
- Snap On
- Switching Equipment Mounting Type
- Screw
- Includes
- None
- Shape
- Round
- Surface Finishing
- Untreated
- Material
- Plastic
- Color
- White
- Number of Gangs
- 1-gang
- Degree of Protection
- IP44
- Environmental Information
- 9AKK107680A2918
- Product Net Width
- 0.071 m
- Product Net Height
- 0.038 m
- Product Net Depth / Length
- 71 mm
- Dimension Diagram
- 9AKK108470A2333
- Declaration of Conformity - CE
- 9AKK108467A7115
- Mounting Type
- Flush mounted (plaster)
- ETIM 9
- EC002601 - Box/housing for built-in mounting in the wall/ceiling
- Mounting method
- Flush-mounted
- Model
- Single
- Provided with revolving ring
- No
- Couplable
- Yes
- Equipped with
- None
- Diameter
- 71 mm
- Length
- 71 mm
- Width
- 71 mm
- Depth
- 71 mm
- Inner depth
- 36 mm
- Suitable for wall/board thickness
- 11–12 mm
- For number of electric fittings
- 1
- Mounting switching equipment
- Screwing
- With screws
- Yes
- Housing feed-through by break-out opening
- Yes
- Housing feed-through by seal membrane
- No
- Housing feed-through by nozzle
- Yes
- Housing feed-through by step membrane
- No
- For tube diameter
- 20/25 mm
- Suitable for cable diameter
- 8–13 mm
- Pipe locking
- Yes
- Pipe locking optional
- No
- Inlet from the rear
- Yes
- Number of inlets
- 2
- Number of included spouts
- 2
- Halogen free
- Yes
- Surface protection
- Untreated
- Colour
- White
- Cover model
- None
- Transparent cover
- No
- Cover attachment
- Snapped on
- Sealable
- No
- Circuit integrity
- None
- With screening
- No
- Air tight
- No
- Clamp position fixed
- No
- Luminaire hook mounting
- No
- Nozzle
- None
- With nail lugs
- Yes
- Special application
- None
- Country of origin
- Finland
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 6410011523155
- SAP 1000428700
- Code 895845
Product Documentation
