WIKA 232.50 Bourdon 0-10 bar
Pricing
Request a quote
We reply within 24 hours
Product Description

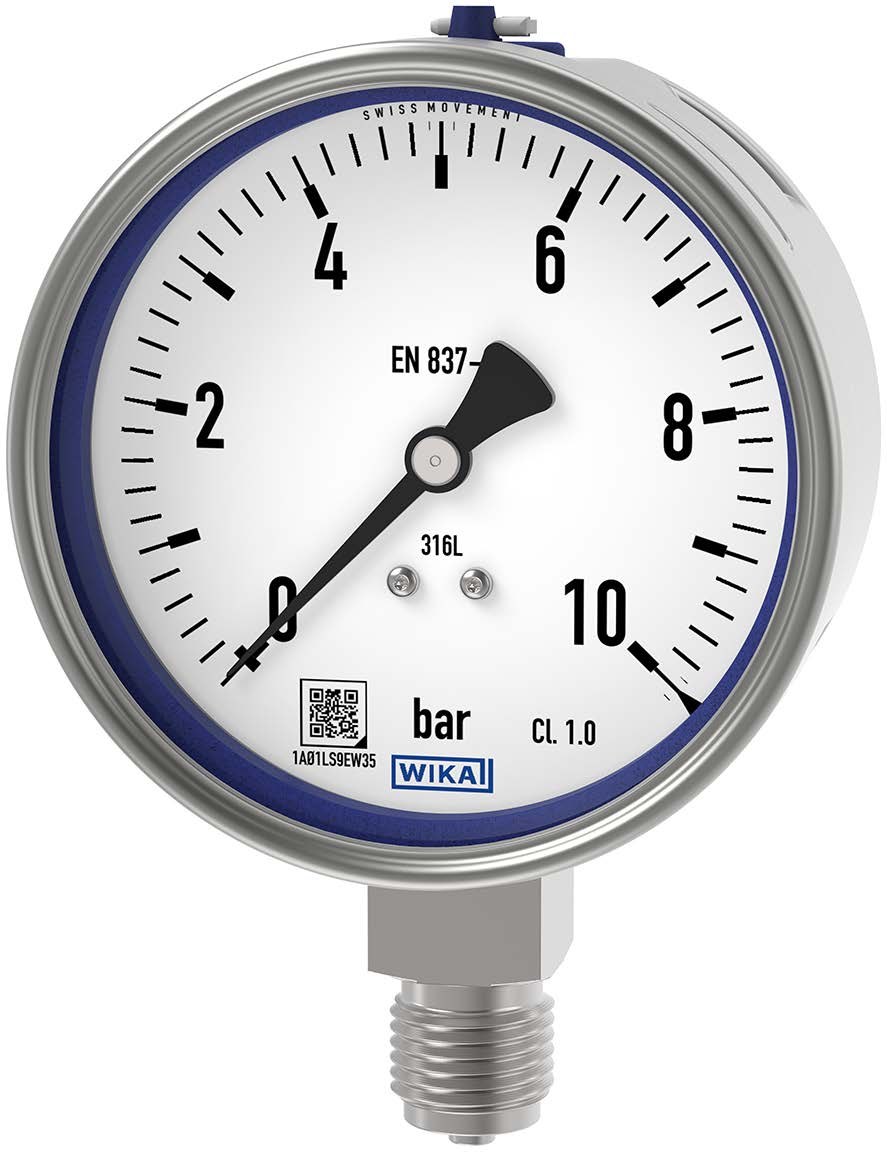

WIKA 232.50 industrial process gauge, 100mm dial, blow-out safety pattern EN 837-1 S1. Glycerine case filling (model 233.50) for vibration damping.
Technical Specifications
- Model
- 232.50.100
- Range
- 0 to 10 bar
- Accuracy
- ±1.0% of span (class 1.0)
- Wetted
- 316L SS case + Bourdon
- Temp
- -40 to +100°C
- Ingress
- IP65
- Process connection
- 1/4 NPT / G1/4 / G1/2 / tri-clamp (model-dependent)
- Electrical (transmitter)
- 4-20mA 2-wire + HART (UPT-20)
Standards & Compliance
- Material
- 316L SS case + Bourdon
- Pressure Rating
- 0 to 10 bar
- Temperature Range
- -40 to +100°C
- IP Rating
- IP65
- Classification / Approval
- EN 837-1 (Bourdon) / EN 837-3 (diaphragm) / DKD/DAkkS available
- HS Code
- 9026.20
Compatibility & Fitment
WIKA gauges + transmitters hot-swap with Ashcroft / Bourdon-Haenni / Ametek equivalents at same process connection + range.
