Wibe Group

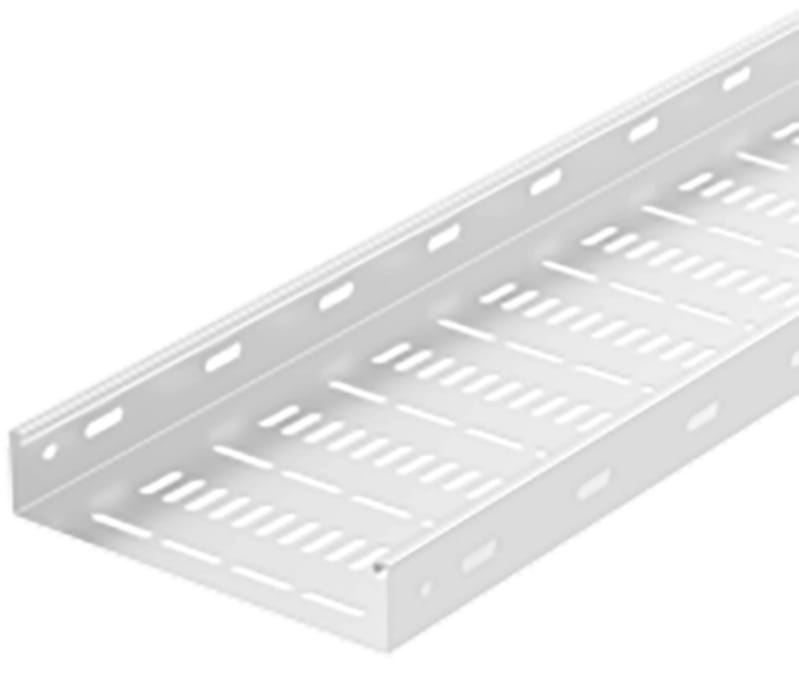

Cable Trunking W3/40-200 3M FZS HV
Part number737541EAN / GTIN7321677375417HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 737541 Wibe - cable tray W3/40-200 - perforated - 3 m - steel pre-galvanized - white.
Technical Specifications
- Manufacturer part number (MPN)
- 737541 EAN / GTIN: 7321677375417 HS code: 8544.42 Sales unit: m minimum order quantity: 3 Order multiple: 3 Colour: White NCS S 0500 N gl30 Length: 3000 mm Width: 200 mm Height: 40 mm material: Steel material type or surface treatment: Painted Corrosion class: C2 material thickness: 1 mm Useful cross section: 8000 mm² With cover: No Side wall perforation: Yes Mounting perforation in bottom: Yes NATO: Yes Model: Without connector Wide span model: No Suitable for circuit integrity: No Stainless steel, pickled: No Surface protection: Continuously galvanized and coated Weight: 2 kg/m Load test type according to IEC 61537: Type I Pack 1 type: Each Quantity pack 1: 1 Weight pack 1: 6.3 kg Length pack 1: 3000 mm Width pack 1: 200 mm Height pack 1: 40 mm Pack 4 type: Pallet Quantity pack 4: 48 Weight pack 4: 325 kg Length pack 4: 3000 mm Width pack 4: 800 mm Height pack 4: 500 mm Net weight: 6.3 kg Country of origin: SE ETIM class: EC000047
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677375417
- SAP 1000679335
- Code 8576655
Product Documentation
Document preview: Cable Trunking W3/40-200 3M FZS HV (737541) — Specification sheet
More from Wibe Group
Wibe Group

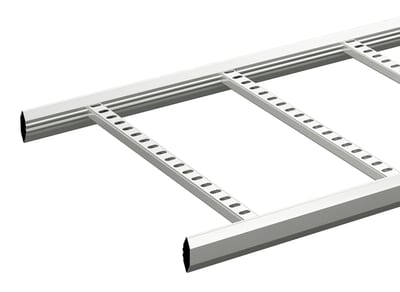

Cable ladder KHZP-500 3M Sf
783544
Wibe Group

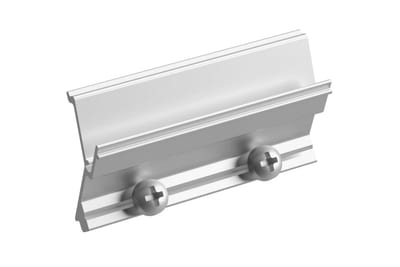

Joint with earthing (STA520085)
Wibe Group

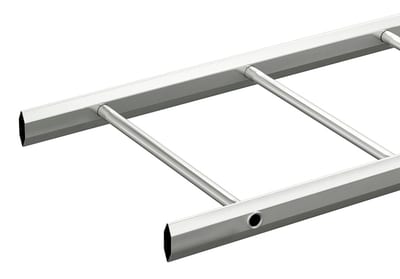

Cable ladder KHZ-300 3M Fzv
791333
Wibe Group

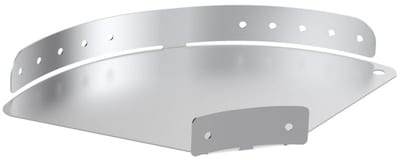

Adjustable Angle W10S/40-70 FZS
716833
Wibe Group

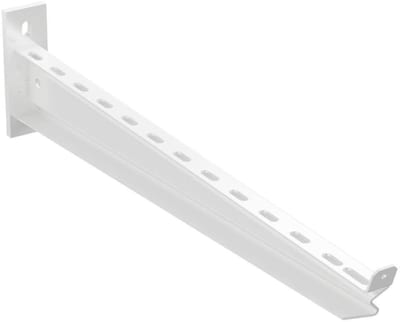

Wall Bracket 50/1000 ZP HV
