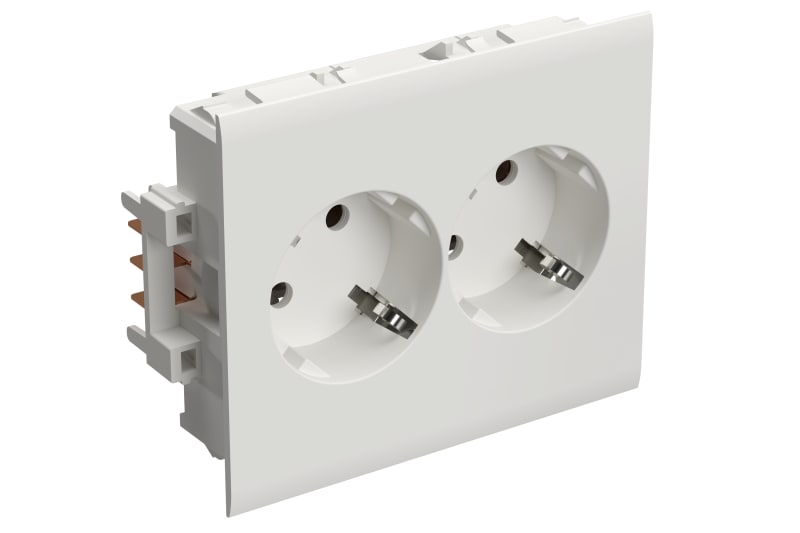

Wibe Group STA501010 Socket Outlet 2-Way Slave White RAL9003
Part numberSTA501010EAN / GTIN7321679003073HS code8536.69
Electrical Components
Socket Outlets
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group STA501010 socket outlet, 2-way extension F80, halogen-free plastic, in white RAL9003. Rated 16 A / 250 V and IP20 for wall-duct mounting.
Technical Specifications
- Manufacturer part number (MPN)
- STA501010
- EAN / GTIN
- 7321679003073
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Wiring Device Component Type
- W816
- Colour
- White RAL9003
- Length
- 116 mm
- Width
- 84 mm
- Height
- 43 mm
- Material
- Plastic
- Model
- EV024206
- Number of active pins (round)
- 4
- Number of active pins (flat)
- 0
- With signal lamp
- No
- With built
- No
- Number of socket outlets switchable
- 0
- Number of phases
- 1
- Imprint/indication
- None
- Connection type
- Other
- With hinged lid
- No
- With enhanced contact protection
- Yes
- Label space/information surface
- No
- RAL
- 9003
- Metallic colour
- No
- Transparent
- No
- Lockable
- No
- Eject
- No
- Insulated mounting
- Yes
- With function lighting
- No
- With orientation lighting
- No
- Over voltage protection
- No
- Fault current protection
- No
- With miniature fuse
- No
- Mounting method
- Wall duct
- Type of fastening
- Snap mounting (engagement)
- Material quality
- Thermoplastic
- Halogen free
- Yes
- Surface protection
- Untreated
- Surface finishing
- Matt
- With on/off switch
- No
- With loop through function
- No
- Rotated central insert
- Yes
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Frequency
- 50 - 50 Hz
- Suitable for degree of protection (IP)
- IP20
- Device width
- 116 mm
- Device height
- 84 mm
- Device depth
- 50 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Min. depth of built
- 52 mm
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- For heavy conditions (according to VDE) (EFDE0005)
- No
- Pack 1 type
- Bag
- Quantity pack 1
- 1
- Weight pack 1
- 0.16 kg
- Length pack 1
- 116 mm
- Width pack 1
- 84 mm
- Height pack 1
- 43 mm
- Pack 2 type
- Carton
- Quantity pack 2
- 10
- Weight pack 2
- 2 kg
- Length pack 2
- 290 mm
- Width pack 2
- 240 mm
- Height pack 2
- 90 mm
- Pack 3 type
- Carton
- Quantity pack 3
- 40
- Weight pack 3
- 8 kg
- Length pack 3
- 395 mm
- Width pack 3
- 260 mm
- Height pack 3
- 310 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 720
- Weight pack 4
- 150 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 770 mm
- Net weight
- 0.16 kg
- Country of origin
- CN
- ETIM class
- EC000125
- GWP Total A1-A3
- 1.5036 kgCO2e
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 7321679003073
- SAP 1200714378
- Code 83808502
Product Documentation
Document preview: Wibe Group STA501010 Socket Outlet 2-Way Slave White RAL9003 — Specification sheet
More from Wibe Group
Wibe Group

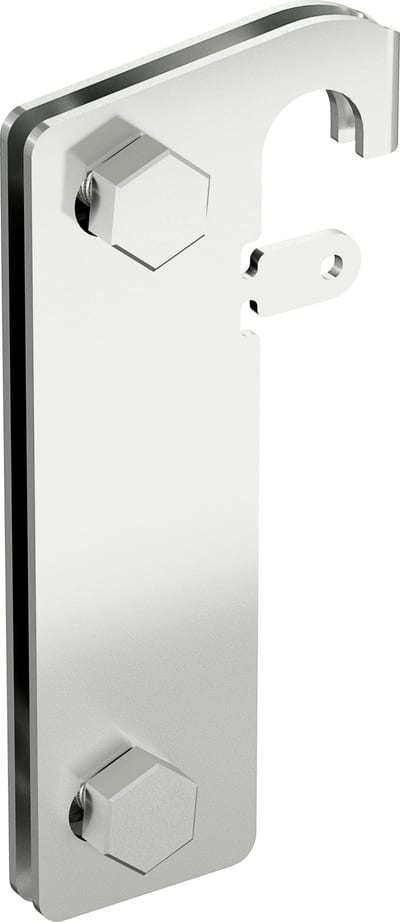

Branch Hook 47 Fzv (791350)
Wibe Group

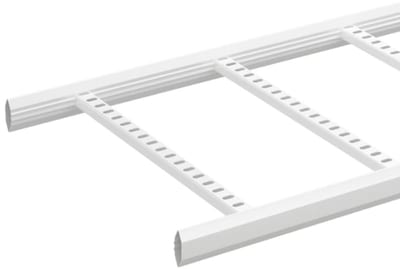

Cable Ladder KHZP-500 6M ZP HV
718595
Wibe Group

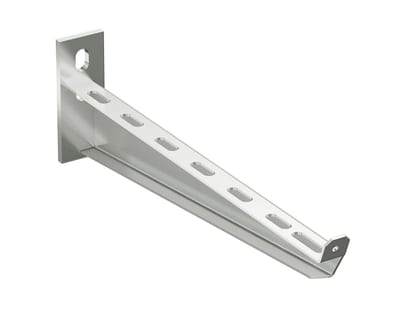

Wall Bracket 50/250 Sf
