Wibe Group Defem Flange Nut B43 M10 AISI 316L Stainless Steel
Pricing
Request a quote
We reply within 24 hours
Product Description

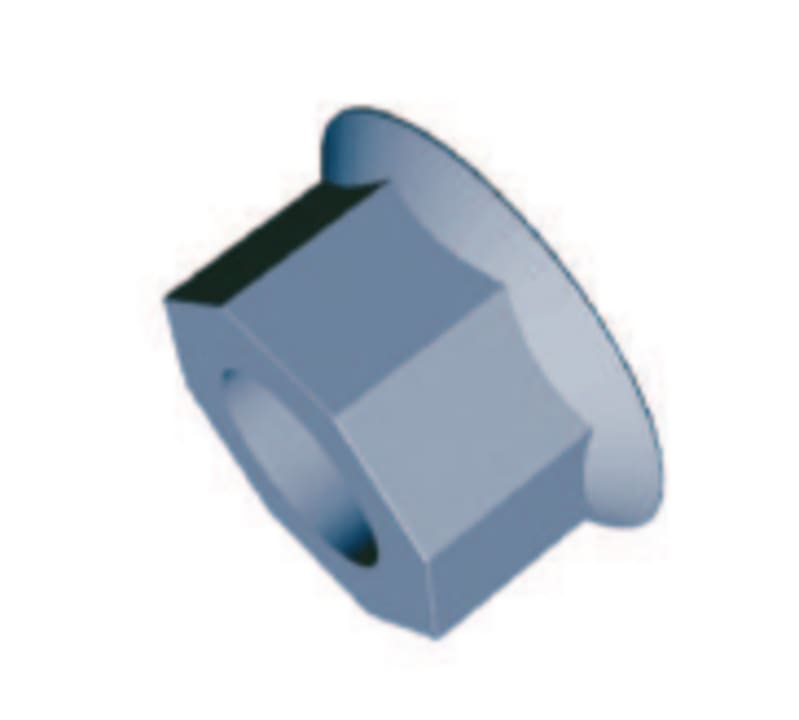

Wibe Group Defem B43 hexagon flange nut, M10, AISI 316L stainless steel. Serrated-flange nut for Defem cable ladder and channel systems. Manufacturer's own designation: Wibe Group 1149564 Defem - flange nut B43/M10 - stainless steel AISI316L - 50 pcs.
Technical Specifications
- Manufacturer part number (MPN)
- 1149564
- EAN / GTIN
- 7332227015646
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Material
- Stainless steel
- Material type or surface treatment
- AISI316L
- Corrosion class
- CX
- Model
- Nut
- With flange
- Yes
- Weldable
- No
- Self
- No
- With nylon ring
- No
- Screwing system
- Outside hexagon
- Material quality
- Stainless steel 316 L (1.4404)
- Thread size (metric)
- 10
- Wrench width
- 15 mm
- Pitch thread
- 1.5 mm
- Thread type
- Metric
- Left
- No
- Height
- 15 mm
- Halogen free
- Yes
- Pack 1 type
- Bag
- Quantity pack 1
- 50
- Weight pack 1
- 0.6 kg
- Length pack 1
- 150 mm
- Width pack 1
- 100 mm
- Height pack 1
- 250 mm
- Pack 2 type
- Carton
- Quantity pack 2
- 250
- Weight pack 2
- 3.1 kg
- Length pack 2
- 225 mm
- Width pack 2
- 105 mm
- Height pack 2
- 150 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 52500
- Weight pack 4
- 673 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 1050 mm
- Net weight
- 0.56 kg
- Country of origin
- SE
- ETIM class
- EC003863
- GWP Total A1-A3
- 3.2704 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7332227015646
- SAP 1000564157
- Code 81054315
