Wibe Group

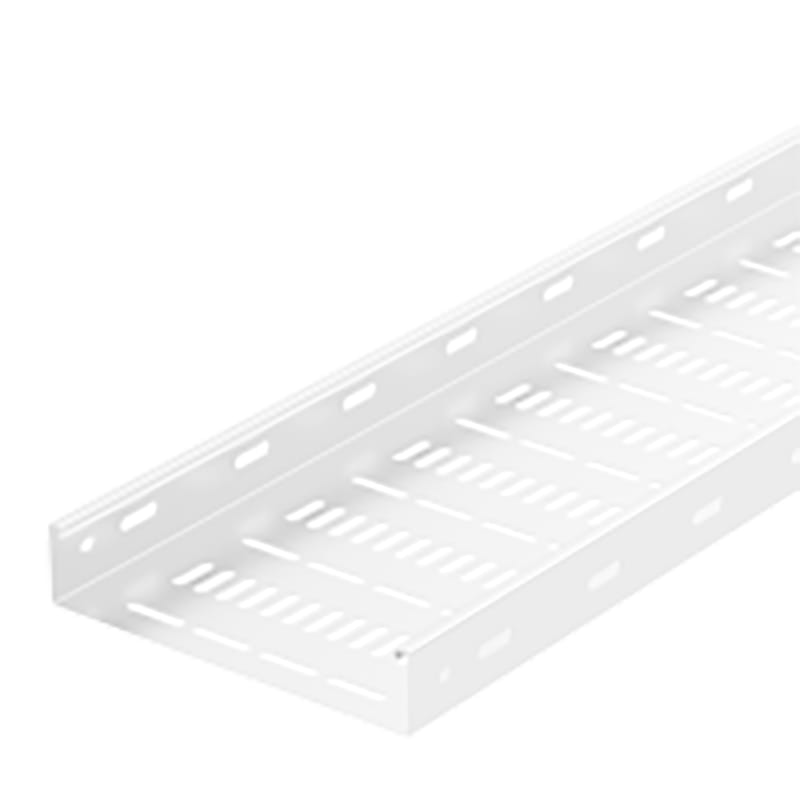

Cable trunking W3/60-70 3M Fzs white
Part number782306EAN / GTIN7321677823062HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 782306 Wibe - cable tray W3/60-70 - perforated - 3 m - steel pre-galvanized - white.
Technical Specifications
- Manufacturer part number (MPN)
- 782306
- EAN / GTIN
- 7321677823062
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 120 pcs
- Colour
- White NCS S 0500 N gl30
- Length
- 3000 mm
- Width
- 70 mm
- Height
- 60 mm
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Material thickness
- 1 mm
- Useful cross section
- 4200 mm²
- With cover
- No
- Side wall perforation
- Yes
- Mounting perforation in bottom
- Yes
- NATO
- Yes
- Model
- Without connector
- Wide span model
- No
- Suitable for circuit integrity
- No
- Stainless steel, pickled
- No
- Surface protection
- Continuously galvanized and coated
- Weight
- 1.5 kg/m
- Load test type according to IEC 61537
- Type I
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 4.5 kg
- Length pack 1
- 3000 mm
- Width pack 1
- 70 mm
- Height pack 1
- 60 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 120
- Weight pack 4
- 563 kg
- Length pack 4
- 3000 mm
- Width pack 4
- 800 mm
- Height pack 4
- 560 mm
- Net weight
- 4.5 kg
- Country of origin
- SE
- ETIM class
- EC000047
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677823062
- SAP 1200459407
- Code 82517939
Product Documentation
Document preview: Cable trunking W3/60-70 3M Fzs white (782306) — Specification sheet
More from Wibe Group
Wibe Group
Ceiling Bracket TF-16 Fzv
788165
Wibe Group
End piece 130/72 White RAL9003
STA550041
Wibe Group
Avvinkl vertical W11/60-200 Fzs
782279
Wibe Group
Cable Clips ER77-85 SF (736455)
Wibe Group

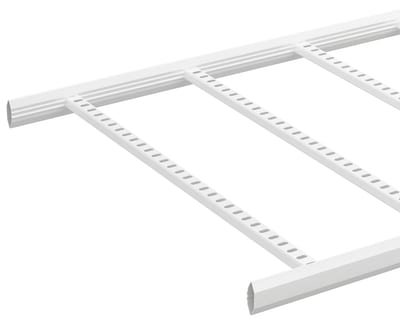

Cable ladder KHZP-800 3M ZP white
783530
Wibe Group

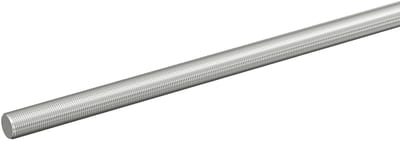

Pendant Bolt W76 M10 3M FZS
716793
Wibe Group

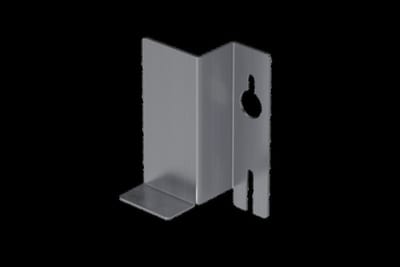

Wibe Group Fixed Wall Bracket 35mm Low-Profile Steel
INS55035
Wibe Group

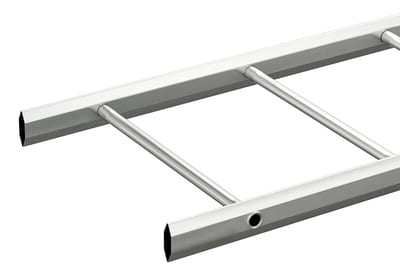

Cable ladder KHZ-500 3M Fzv
