Wibe Group
Vertical BEND 18/600 SF
Part number727375EAN / GTIN7321677273751HS code8544.42
Cables & Wiring
Cable Tray Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

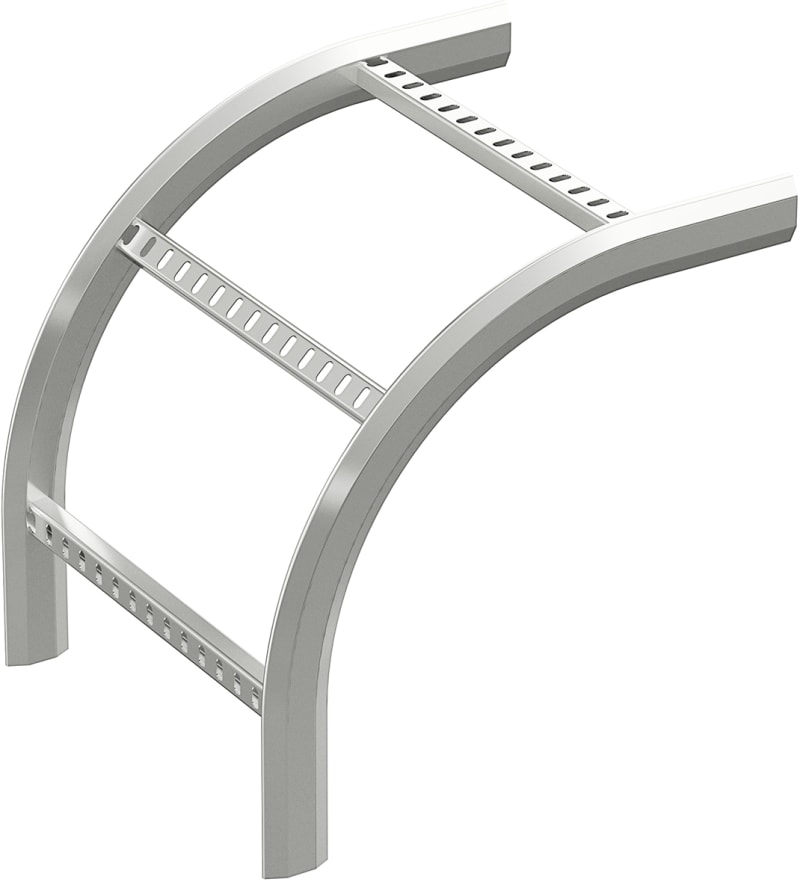

Wibe Group 727375 Wibe - vertical riser 18-600 - inner radius 272 mm - stainless steel AISI316L.
Technical Specifications
- Manufacturer part number (MPN)
- 727375
- EAN / GTIN
- 7321677273751
- HS code
- 8544.42
- Sales unit
- pcs
- Width
- 600 mm
- Material
- Stainless steel
- Material type or surface treatment
- AISI316L
- Corrosion class
- CX
- Change of direction
- Vertically rising
- Type of side joist
- Tube shape (closed)
- Side wall perforation
- No
- Type of rung
- Perforated profile
- Bend model
- Smooth bend
- Hinging
- No
- Cable ladder height
- 55 mm
- Cable ladder width
- 600 mm
- Model
- Without connector
- Inner radius
- 272 mm
- Wide span model
- No
- Suitable for circuit integrity
- No
- Material quality
- Stainless steel 316 Ti (1.4571)
- Surface protection
- Pickled and passivated
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 2.7 kg
- Length pack 1
- 452 mm
- Width pack 1
- 452 mm
- Height pack 1
- 597 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 20
- Weight pack 4
- 105 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 930 mm
- Net weight
- 2.7 kg
- Country of origin
- SE
- ETIM class
- EC001535
- GWP Total A1-A3
- 15.768 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677273751
- SAP 1000703210
- Code 8318663
Product Documentation
Document preview: Vertical BEND 18/600 SF (727375) — Specification sheet
