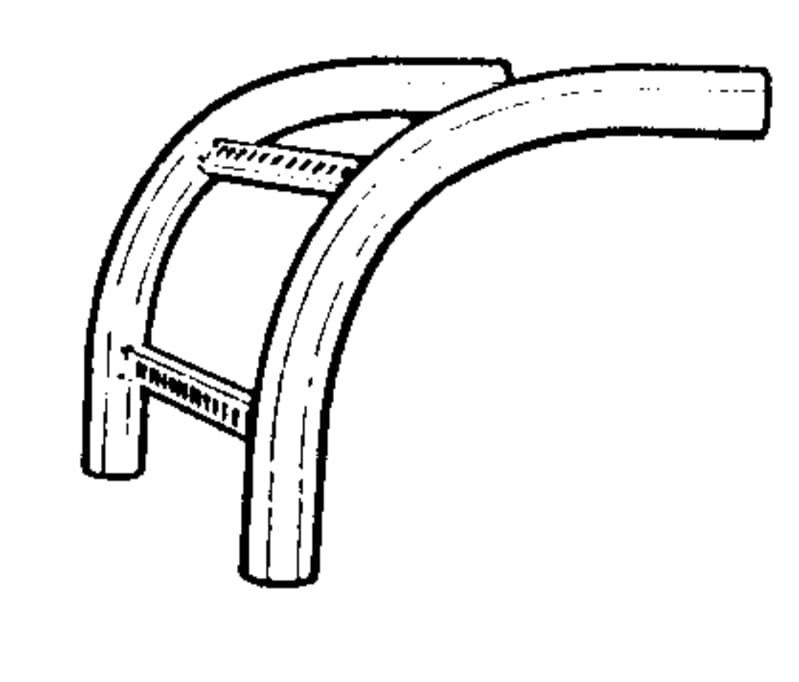

Wibe Group 718191 Vertical Riser 18/1000 Zincpox White Cable Ladder
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe 718191 is a vertical riser cable ladder in the 18/1000 series with a 272 mm inner radius and 90° change of direction. Hot-dip galvanised steel with a Zincpox white NCS S 0500 N coating rated corrosion class C5. Rung width 1000 mm, height 55 mm, tube-shape closed side joists without perforation.
Technical Specifications
- Manufacturer part number (MPN)
- 718191
- EAN / GTIN
- 7321677181919
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Colour
- White NCS S 0500 N gl30
- Width
- 1000 mm
- Material
- Steel
- Material type or surface treatment
- Zinkpox coated
- Corrosion class
- C5
- Change of direction
- Vertically rising
- Type of side joist
- Tube shape (closed)
- Side wall perforation
- No
- Type of rung
- Perforated profile
- Angle
- 90°
- Bend model
- Smooth bend
- Hinging
- No
- Cable ladder height
- 55 mm
- Cable ladder width
- 1000 mm
- Model
- Without connector
- Inner radius
- 272 mm
- Wide span model
- No
- Suitable for circuit integrity
- No
- Surface protection
- Hot-dip galvanized and coated
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 3.5 kg
- Length pack 1
- 452 mm
- Width pack 1
- 997 mm
- Height pack 1
- 50 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 10
- Weight pack 4
- 86 kg
- Net weight
- 3.5 kg
- Country of origin
- SE
- ETIM class
- EC001535
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677181919
- SAP 1000563805
- Code 8110458
Product Documentation
