Wibe Group

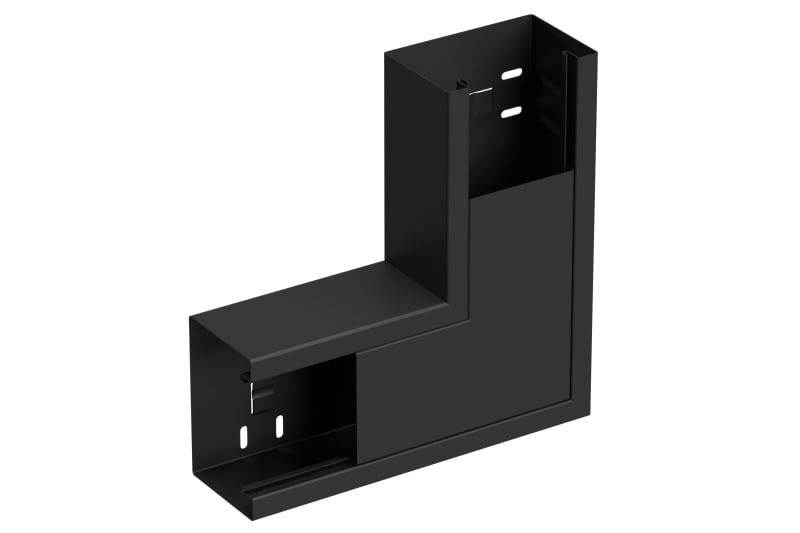

L-Piece 110/72 Black RAL9017
Part numberSTA550081EAN / GTIN8720871001372HS code7308.90
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group STA550081 L-piece kit riser/dropper 110/72mm - steel - black RAL9017/30.
Technical Specifications
- Manufacturer part number (MPN)
- STA550081
- EAN / GTIN
- 8720871001372
- Sales unit
- pcs
- Colour
- RAL 9017
- Dimension
- 110/72
- Length
- 250 mm
- Width
- 72 mm
- Height
- 250 mm
- Material
- Steel
- Material type or surface treatment
- Powder coated
- Depth
- 72 mm
- Number of covers
- 1
- Cover width 1
- 80 mm
- Direction
- Rising/descending
- Symmetric
- Yes
- Model
- Base unit and cover
- Angle
- 90 - 90 °
- Halogen free
- Yes
- Surface protection
- Coated
- RAL
- 9017
- With protective foil
- No
- With duct connector
- No
- Mounting perforation in bottom
- Yes
- Mounting method cover
- Inner lying
- With cable fixing clip
- No
- Degree of protection (IP)
- IP20
- Impact strength
- IK07
- Operating temperature
- -20 - 60 °C
- Pack 1 type
- Carton
- Quantity pack 1
- 1
- Weight pack 1
- 1.15 kg
- Length pack 1
- 280 mm
- Width pack 1
- 280 mm
- Height pack 1
- 80 mm
- Net weight
- 1.15 kg
- Country of origin
- NL
- ETIM class
- EC000876
- GWP Total A1-A3
- 4.591 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 8720871001372
- SAP 1200714430
- Code 83808601
Product Documentation
Document preview: L-Piece 110/72 Black RAL9017 (STA550081) — Specification sheet
More from Wibe Group
Wibe Group
X-Branch W13F/40-300 Fzv
783685
Wibe Group
Vertical BEND W4-150 T/Cable Trunking FZS HV
784108
Wibe Group

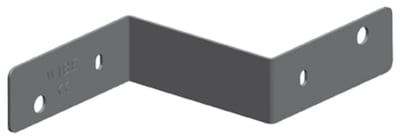

Wibe Reducer Joint W28/40-350 — Pre-galvanized steel (793575)
Wibe Group
Wibe Reducer Joint W28/40-350 — Hot-dip galvanized steel
793593
Wibe Group

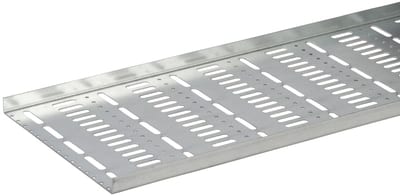

Mounting channel W4-100 1,96M Fzs
736605
Wibe Group

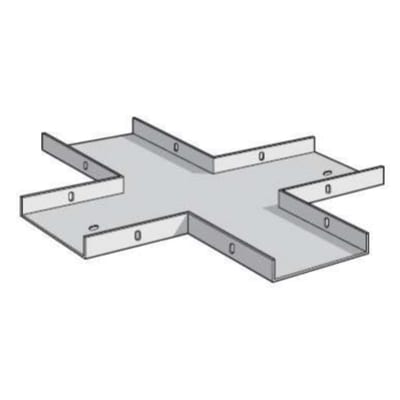

X-Branch W13SKH/40-200 FZS
717915
Wibe Group

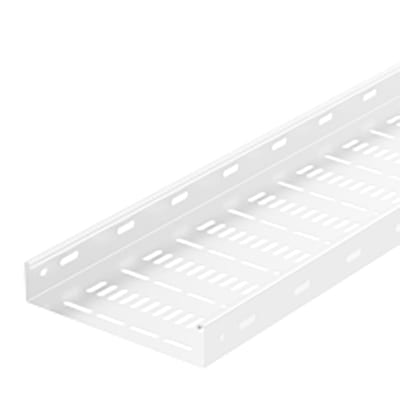

Perf renne W3-200 1,96M Fzs white
736932
Wibe Group

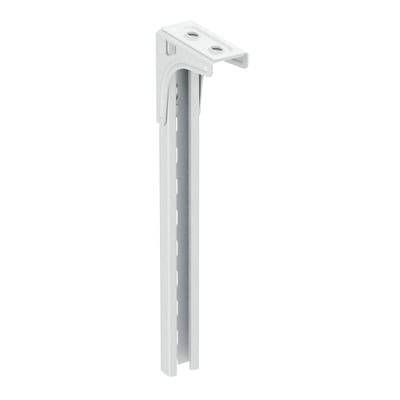

Ceiling Pendant 2FI-400 Fzs white
CSU795301
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy STA550081?
- STA550081 can be ordered from cballast.com as a Wibe Group catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Wibe Group product?
- The manufacturer part number is STA550081.
- What is the HS code for STA550081?
- The customs tariff (HS) code for STA550081 is 7308.90.
- Who manufactures STA550081?
- STA550081 is a Wibe Group product in the Cables & Wiring range.
- Is a datasheet available for STA550081?
- Yes — the STA550081 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for STA550081?
- The minimum order quantity is 1.
- Is STA550081 available?
- Yes — STA550081 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
