Wibe Group

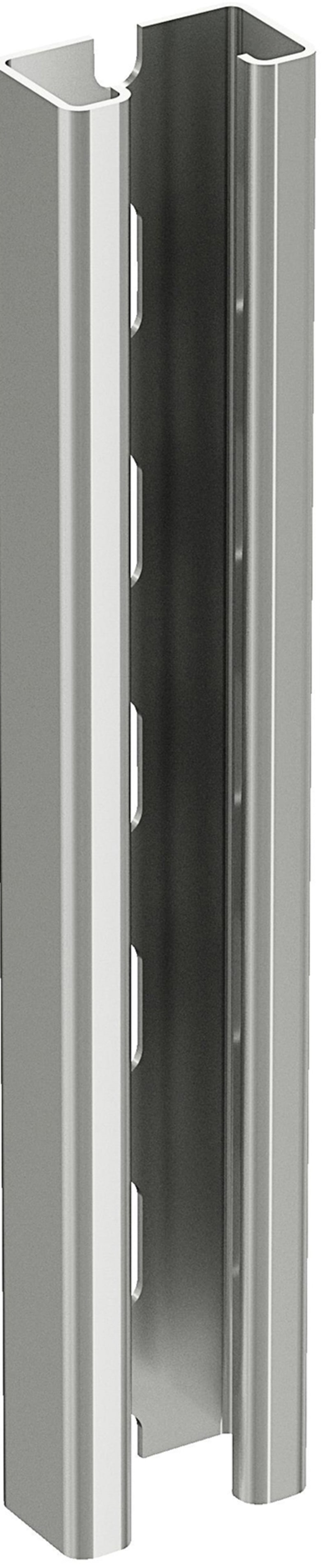

Base Rail 40 270mm FZV C4 4 pcs
Part number717001EAN / GTIN7321677170012HS code7308.90
Cables & Wiring
Cable Tray Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 717001 Wibe - mounting rail 40S - steel hot-dip galvanized.
Technical Specifications
- Manufacturer part number (MPN)
- 717001
- EAN / GTIN
- 7321677170012
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Material
- Steel
- Material type or surface treatment
- Hot-dip galvanized
- Corrosion class
- C4
- Length
- 270 mm
- Width
- 48 mm
- Height
- 26 mm
- Slit width
- 22 mm
- Material thickness
- 1.8 mm
- Profile shape
- C-profile
- Model
- Singular profile
- Type of perforation
- Back perforated
- Hole width
- 9 mm
- With toothing
- No
- Snap
- No
- Area moment of inertia Iy
- * cm4
- Area of inertia Iz
- * cm4
- Suitable for circuit integrity
- No
- Surface protection
- Hot-dip galvanized
- Weight
- 0.48 kg/m
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 0.48 kg
- Length pack 1
- 265 mm
- Width pack 1
- 48 mm
- Height pack 1
- 26 mm
- Pack 2 type
- Stretch film
- Quantity pack 2
- 4
- Weight pack 2
- 1.92 kg
- Length pack 2
- 270 mm
- Width pack 2
- 60 mm
- Height pack 2
- 60 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 400
- Weight pack 4
- 222 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 340 mm
- Net weight
- 0.48 kg
- Country of origin
- SE
- ETIM class
- EC000386
- GWP Total A1-A3
- 1.3392 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677170012
- SAP 1000048485
- Code 8799595
Product Documentation
Document preview: Base Rail 40 270mm FZV C4 4 pcs (717001) — Specification sheet
More from Wibe Group
Wibe Group
External corner al 120/72 alu
STA520024
Wibe Group
Ceiling Pendant 20F/3000 FOR K-Ladder FZV C4
709799
Wibe Group
X-Branch 17/200 FZV (716210)
Wibe Group
Internal corner 130/72 Black RAL9017
STA550100
Wibe Group

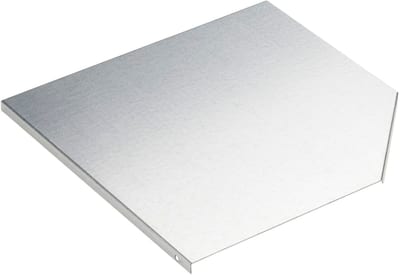

Cover corner 90° 120 Fzs
CSU30061202
Wibe Group

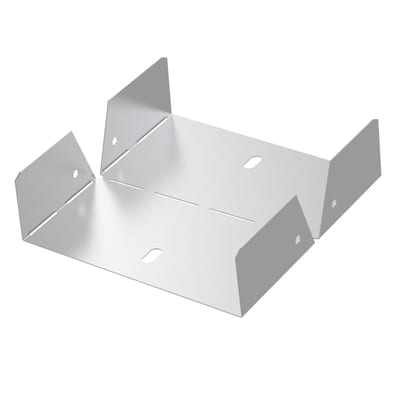

Bend vertical W11/60-500 Fzs white
782599
Wibe Group

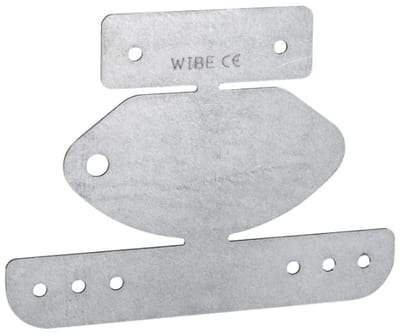

Adjustable Angle W10S/40-500 FZS HV
729108
Wibe Group

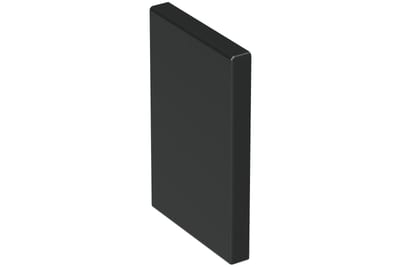

End piece 110/72 Black RAL9017
