Wibe Group
External corner al 120/72 alu
Part numberSTA520024EAN / GTIN7321679004117HS code7610.90
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

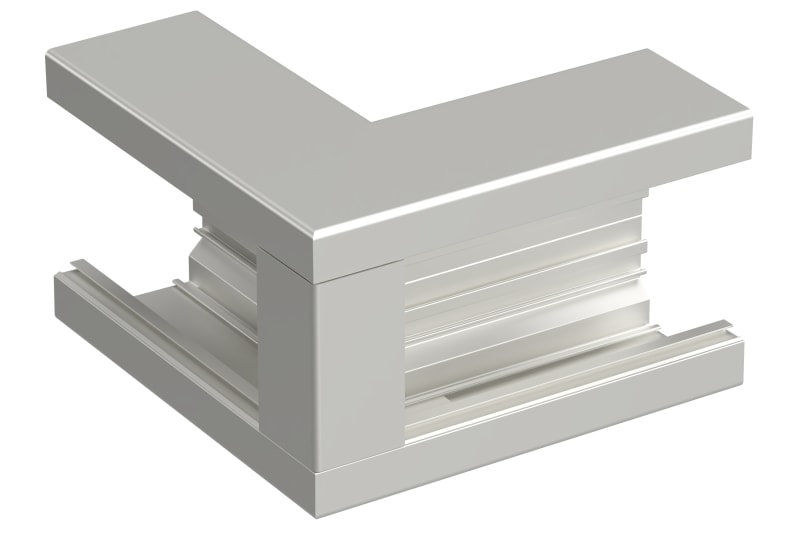

Wibe Group STA520024 External corner, Stago WGX-A, aluminium, 120/72, natural anodized.
Technical Specifications
- Manufacturer part number (MPN)
- STA520024
- EAN / GTIN
- 7321679004117
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Dimension
- 120/72
- Colour
- Anodized
- Length
- 200 mm
- Width
- 200 mm
- Height
- 122 mm
- Material
- Aluminium
- Material type or surface treatment
- anodized_1
- Depth
- 72 mm
- Number of covers
- 1
- Cover width 1
- 80 mm
- Symmetric
- Yes
- Model
- Base unit and cover
- Angle
- 90 - 90 °
- Halogen free
- Yes
- Surface protection
- Anodised
- With protective foil
- No
- With duct connector
- No
- Mounting perforation in bottom
- No
- Mounting method cover
- Inner lying
- With cable fixing clip
- No
- Degree of protection (IP)
- IP20
- Impact strength
- IK07
- Operating temperature
- -20 - 60 °C
- Pack 1 type
- Carton
- Quantity pack 1
- 1
- Weight pack 1
- 0.55 kg
- Length pack 1
- 210 mm
- Width pack 1
- 210 mm
- Height pack 1
- 130 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 30
- Weight pack 4
- 47 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 340 mm
- Net weight
- 0.52 kg
- Country of origin
- SE
- ETIM class
- EC000872
- GWP Total A1-A3
- 1.155 kgCO2e
Standards & Compliance
- HS Code
- 7610.90
Cross References
- EAN 7321679004117
- SAP 1200754147
- Code 83893886
Product Documentation
Document preview: External corner al 120/72 alu (STA520024) — Specification sheet
