Wibe Group
Cable Ladder KHZP-400 3M FZV
Part number783519EAN / GTIN7321677835195HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

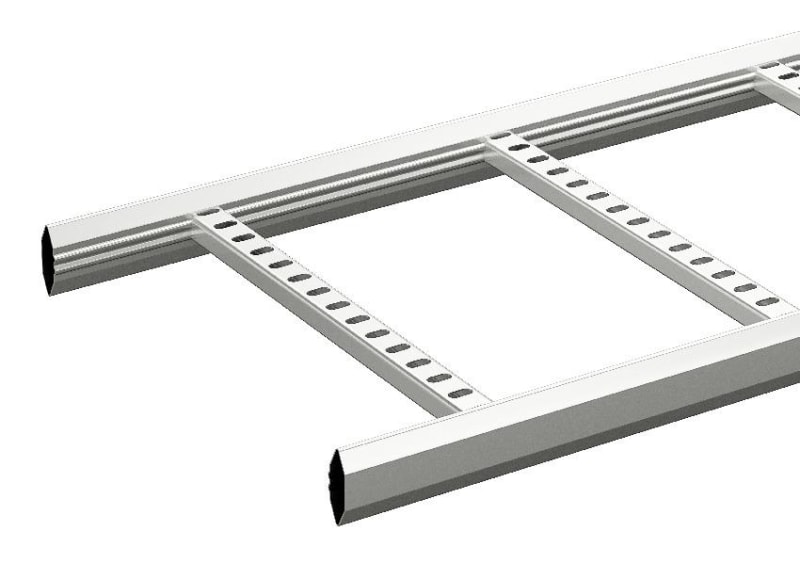

Wibe Group 783519 Wibe - cable ladder - KHZP-400 - closed side profiles and perforated rungs - 3 m - steel hot-dip galvanized.
Technical Specifications
- Manufacturer part number (MPN)
- 783519 EAN / GTIN: 7321677835195 HS code: 8544.42 Sales unit: m minimum order quantity: 3 Order multiple: 3 Length: 3000 mm Width: 400 mm Height: 55 mm material: Steel material type or surface treatment: Hot-dip galvanized Corrosion class: C4 Type of side joist: Tube shape (closed) Side wall perforation: No Type of rung: Perforated profile Fixation rung: Welded Useful cross section: 32000 mm² Rung centre spacing: 250 mm Wide span model: No Suitable for circuit integrity: Yes material quality: Other Surface protection: Hot-dip galvanized Load test type according to IEC 61537: Type II Weight: 2.8 kg/m Pack 1 type: Each Quantity pack 1: 1 Weight pack 1: 8.4 kg Length pack 1: 3000 mm Width pack 1: 400 mm Height pack 1: 55 mm Pack 4 type: Pallet Quantity pack 4: 30 Weight pack 4: 252 kg Length pack 4: 3000 mm Width pack 4: 840 mm Height pack 4: 580 mm Net weight: 8.4 kg Country of origin: SE ETIM class: EC000854 GWP Total A1-A3: 23.436 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677835195
- SAP 1000616201
- Code 8310477
Product Documentation
Document preview: Cable Ladder KHZP-400 3M FZV (783519) — Specification sheet
