Wibe Group
Kanalunderd 170/72 White RAL9003 2,M
Part numberSTA550055EAN / GTIN8720871002430HS code7308.90
Control & Automation
Conduit & Trunking
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

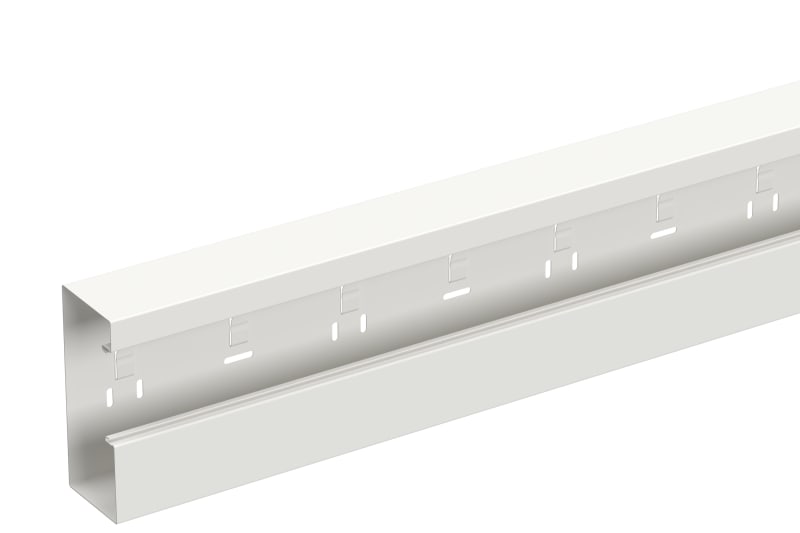

Trunking Base 170/72 mm F80 opening L=2,5 m steel white RAL9003/70.
Technical Specifications
- Manufacturer part number (MPN)
- STA550055
- EAN / GTIN
- 8720871002430
- Sales unit
- pcs
- Colour
- RAL 9003
- Dimension
- 170/72
- Length
- 2500 mm
- Width
- 72 mm
- Height
- 170 mm
- Material
- Steel
- Material type or surface treatment
- Powder coated
- Depth
- 72 mm
- Number of covers
- 1
- Covers supplied with the product
- No
- Cover width 1
- 80 mm
- Symmetric
- Yes
- Construction type rectangular
- Yes
- Halogen free
- Yes
- Surface protection
- Coated
- RAL
- 9003
- Construction rear wall (inner side)
- Perforated
- With protective foil
- No
- Number of plug
- 1
- With duct connector
- No
- Mounting perforation in bottom
- Yes
- Mounting method cover
- Inner lying
- With cable fixing clip
- No
- Degree of protection (IP)
- IP20
- Impact strength
- IK07
- Operating temperature
- -20 - 60 °C
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 9.55 kg
- Length pack 1
- 2500 mm
- Width pack 1
- 170 mm
- Height pack 1
- 72 mm
- Net weight
- 9.55 kg
- Country of origin
- NL
- ETIM class
- EC001938
- GWP Total A1-A3
- 38.296 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 8720871002430
- SAP 1200714299
- Code 83808393
Product Documentation
