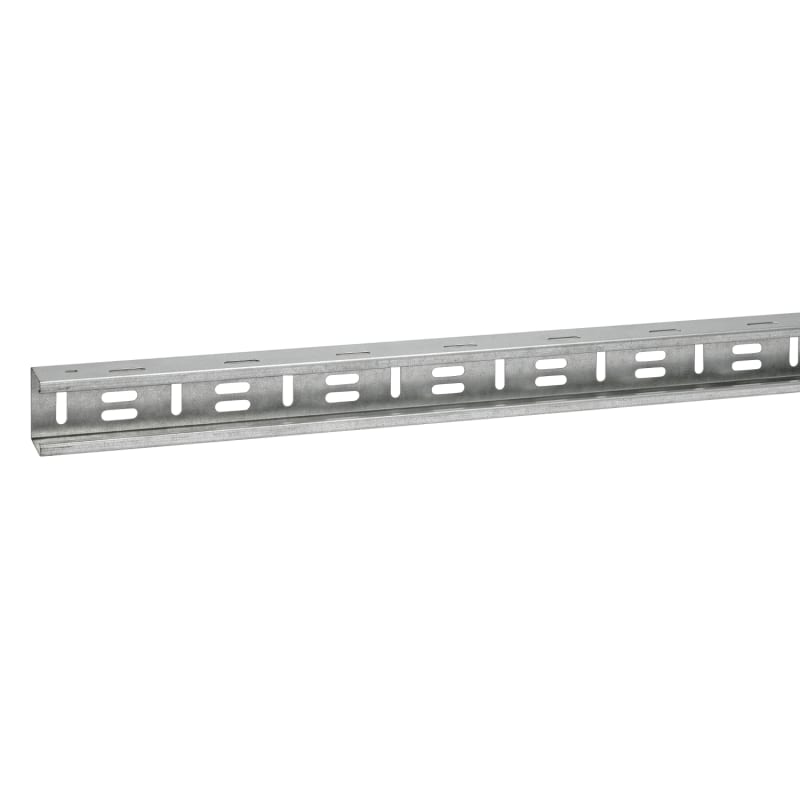

Cable trunking W3/60-300 3M Fzs
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 782206 Wibe - cable tray W3/60-300 - perforated - 3 m - steel pre-galvanized.
Technical Specifications
- Manufacturer part number (MPN)
- 782206 EAN / GTIN: 7321677822065 HS code: 8544.42 Sales unit: m minimum order quantity: 3 Order multiple: 3 Length: 3000 mm Width: 300 mm Height: 60 mm material: Steel material type or surface treatment: Pre-galvanized Corrosion class: C2 material thickness: 1.25 mm Useful cross section: 18000 mm² With cover: No Side wall perforation: Yes Mounting perforation in bottom: Yes NATO: Yes Model: Without connector Wide span model: No Suitable for circuit integrity: No Stainless steel, pickled: No Surface protection: Continuously galvanized Weight: 3.4 kg/m Load test type according to IEC 61537: Type I Weight pack 1: 10.1 kg Length pack 1: 3000 mm Width pack 1: 300 mm Height pack 1: 60 mm Pack 4 type: Pallet Quantity pack 4: 24 Weight pack 4: 275 kg Length pack 4: 3000 mm Width pack 4: 800 mm Height pack 4: 520 mm Net weight: 10.1 kg Country of origin: SE ETIM class: EC000047 GWP Total A1-A3: 28.684 kgCO2e
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677822065
- SAP 1200826595
- Code 84011955
Product Documentation
More from Wibe Group
Wibe Group
Partition Plate 39/55 1,75M Z+
CSU795933
Wibe Group
Mounting channel W4-300 3M Sf
783476
Wibe Group

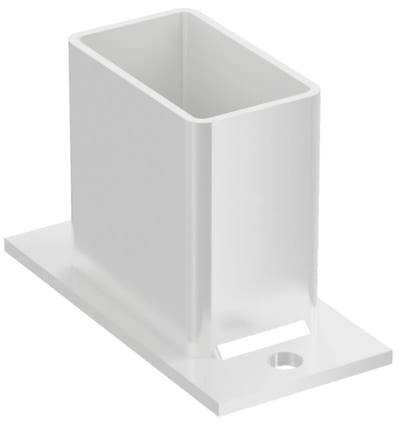

Wibe Group Pendant Support 24/20F Hot-Dip Galvanised Steel White Zinc-Epoxy Coated
720527
Wibe Group

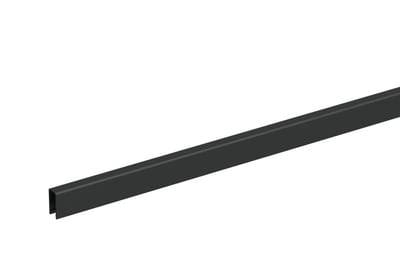

Ventilasjonsribbe Black RAL9017 2,5M
STA500069
Wibe Group

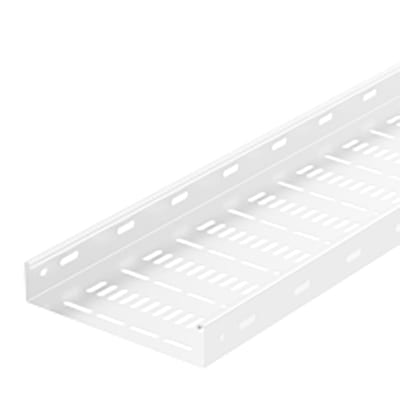

Perf renne W3-100 1,96M Fzs white
736930
Wibe Group

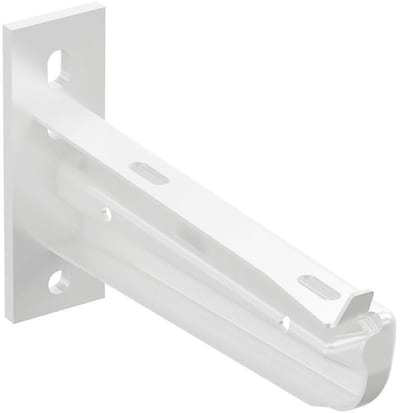

Wall Bracket 50F/200 ZP HV 2 pcs
714021
Wibe Group

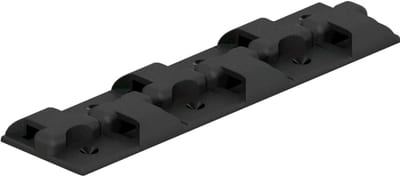

Wibe Group Strap Fastener W44 Plastic Black Pack of 50
718469
Wibe Group

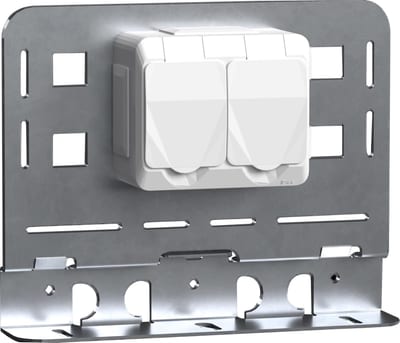

Socket outlet 2-V IP44 + Plate W24/40 FZS
