Wibe Group
Mounting channel W4-300 3M Sf
Part number783476EAN / GTIN7321677834761HS code7308.90
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

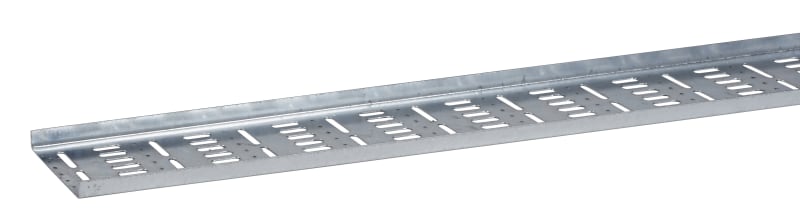

Wibe Group 783476 Wibe - installation tray W4-300 - perforated - 3 m - stainless steel AISI316L.
Technical Specifications
- Manufacturer part number (MPN)
- 783476 EAN / GTIN: 7321677834761 Sales unit: m minimum order quantity: 3 Order multiple: 3 Length: 3000 mm Width: 300 mm Height: 15 mm material: Stainless steel material type or surface treatment: AISI316L Corrosion class: CX material thickness: 1.25 mm Useful cross section: 3750 mm² With cover: No Side wall perforation: No Mounting perforation in bottom: Yes NATO: Yes Model: Without connector Wide span model: No Suitable for circuit integrity: No Stainless steel, pickled: No material quality: Stainless steel V4A Weight: 2.4 kg/m Pack 1 type: Each Quantity pack 1: 1 Weight pack 1: 6.41 kg Length pack 1: 3000 mm Width pack 1: 300 mm Height pack 1: 16 mm Pack 4 type: Pallet Quantity pack 4: 52 Weight pack 4: 360 kg Length pack 4: 3050 mm Width pack 4: 640 mm Height pack 4: 370 mm Net weight: 6.41 kg Country of origin: SE ETIM class: EC000047 GWP Total A1-A3: 37.4344 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677834761
- SAP 1000481411
- Code 8593663
Product Documentation
Document preview: Mounting channel W4-300 3M Sf (783476) — Specification sheet
More from Wibe Group
Wibe Group
Wibe Group Pendant Support 24/20F Hot-Dip Galvanised Steel White Zinc-Epoxy Coated
720527
Wibe Group
Ventilasjonsribbe Black RAL9017 2,5M
STA500069
Wibe Group
Perf renne W3-100 1,96M Fzs white
736930
Wibe Group
Wall Bracket 50F/200 ZP HV 2 pcs
714021
Wibe Group
Wibe Group Strap Fastener W44 Plastic Black Pack of 50
718469
Wibe Group
Socket outlet 2-V IP44 + Plate W24/40 FZS
CSU795870
Wibe Group

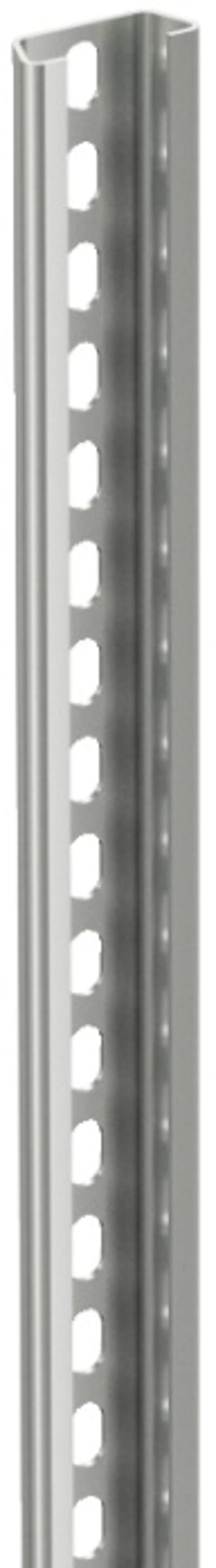

P/A-RAIL 24/34 0,4M SF
