Wibe Group

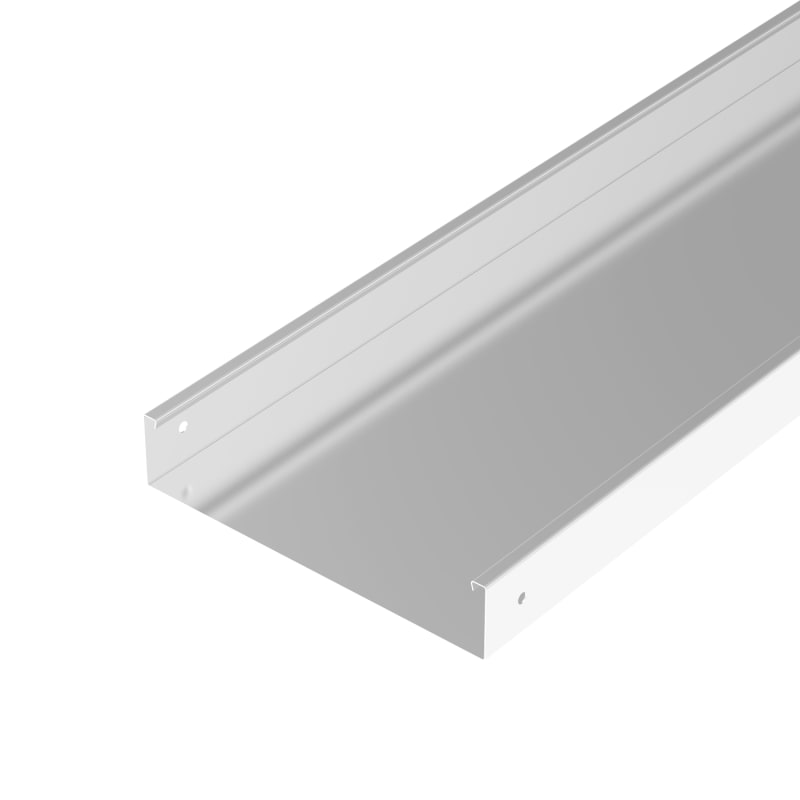

Cable trunking W1/60-100 2M Fzs white
Part number782012EAN / GTIN7321677820122HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 782012 Wibe - cable tray W1/60-100 - unperforated - 2 m - steel pre-galvanized - white.
Technical Specifications
- Manufacturer part number (MPN)
- 782012
- EAN / GTIN
- 7321677820122
- HS code
- 8544.42
- Sales unit
- pcs
- Colour
- White NCS S 0500 N gl30
- Length
- 2000 mm
- Width
- 100 mm
- Height
- 60 mm
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Material thickness
- 1 mm
- Useful cross section
- 6000 mm²
- With cover
- No
- Side wall perforation
- No
- Mounting perforation in bottom
- No
- NATO
- No
- Model
- Without connector
- Wide span model
- No
- Suitable for circuit integrity
- No
- Stainless steel, pickled
- No
- Surface protection
- Continuously galvanized and coated
- Weight
- 1.8 kg/m
- Load test type according to IEC 61537
- Type I
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 3.7 kg
- Length pack 1
- 2000 mm
- Width pack 1
- 100 mm
- Height pack 1
- 60 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 84
- Weight pack 4
- 341 kg
- Length pack 4
- 2000 mm
- Width pack 4
- 800 mm
- Height pack 4
- 560 mm
- Net weight
- 3.7 kg
- Country of origin
- SE
- ETIM class
- EC000047
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677820122
- SAP 1200826587
- Code 84011976
Product Documentation
Document preview: Cable trunking W1/60-100 2M Fzs white (782012) — Specification sheet
More from Wibe Group
Wibe Group

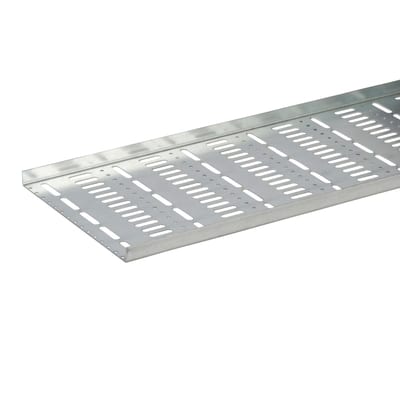

Cable Trunking W4/15-400 3M FZS HV
736640
Wibe Group

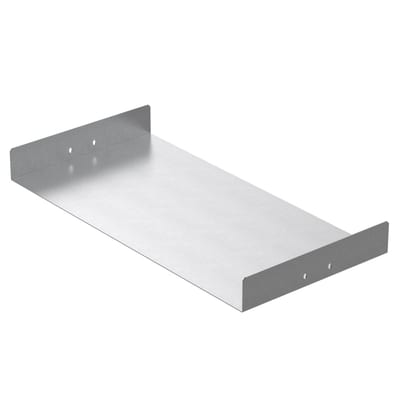

Wibe Support Beam / Joint W7/60-150 — Pre-galvanized steel (782210)
Wibe Group

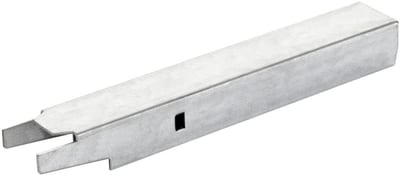

Wall Bracket 120 FZS
CSU08060200
Wibe Group

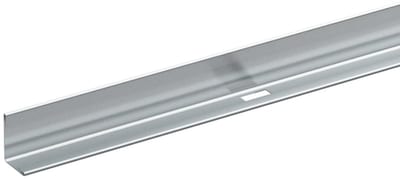

Partition Plate B26 L=2,5M SF
1149378
Wibe Group

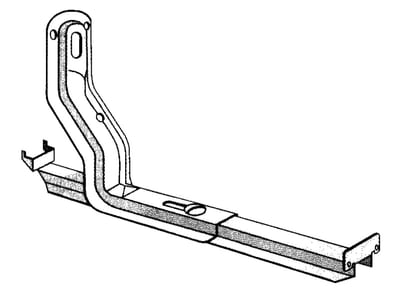

Wibe Group 783590 Adjustable Cantilever Arm W1840-600 FZS Steel Pre-Galvanised
Wibe Group

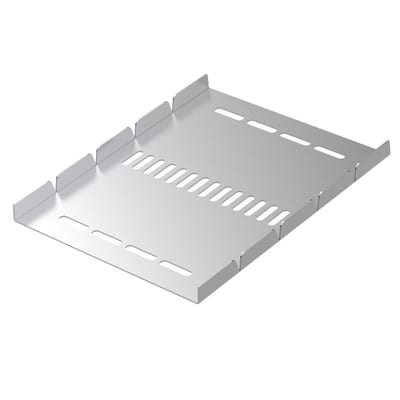

Vertical BEND W4-400 T/Cable Trunking FZS
784096
Wibe Group

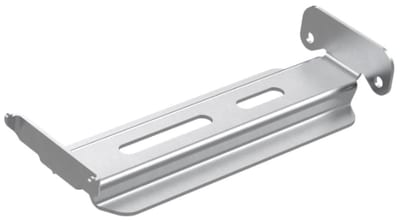

Carrier IRON W19/40-500 FZS
782342
Wibe Group

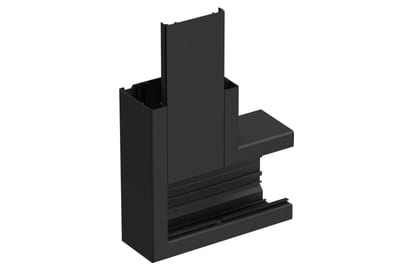

L-piece al 120/72 Black RAL9017
