Wibe Group
Cable Trunking W4/15-400 3M FZS HV
Part number736640EAN / GTIN7321677366408HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

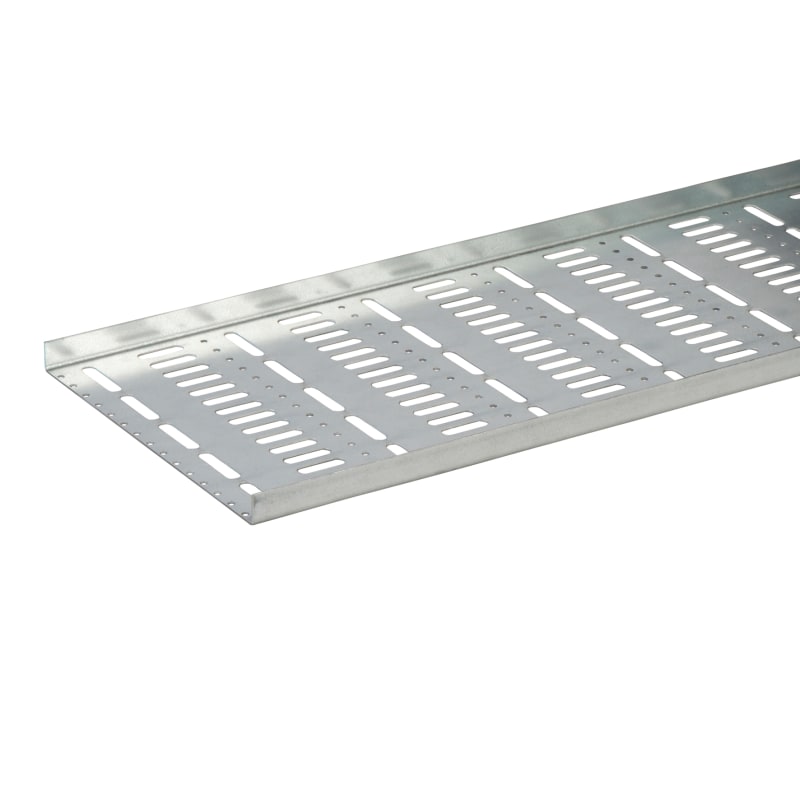

Wibe Group 736640 Wibe - installation tray W4-400 - perforated - 2 m - steel pre-galvanized - white.
Technical Specifications
- Manufacturer part number (MPN)
- 736640
- EAN / GTIN
- 7321677366408
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Colour
- White NCS S 0500 N gl30
- Length
- 1960 mm
- Width
- 400 mm
- Height
- 15 mm
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Material thickness
- 1.25 mm
- Useful cross section
- 6000 mm²
- With cover
- No
- Side wall perforation
- No
- Mounting perforation in bottom
- Yes
- NATO
- Yes
- Model
- Without connector
- Wide span model
- No
- Suitable for circuit integrity
- No
- Stainless steel, pickled
- No
- Surface protection
- Continuously galvanized and coated
- Weight
- 3.1 kg/m
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 6.62 kg
- Length pack 1
- 1960 mm
- Width pack 1
- 400 mm
- Height pack 1
- 15 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 52
- Weight pack 4
- 374 kg
- Length pack 4
- 1960 mm
- Width pack 4
- 800 mm
- Height pack 4
- 390 mm
- Net weight
- 6.62 kg
- Country of origin
- SE
- ETIM class
- EC000047
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677366408
- SAP 1000590793
- Code 867588
Product Documentation
Document preview: Cable Trunking W4/15-400 3M FZS HV (736640) — Specification sheet
