Wibe Group

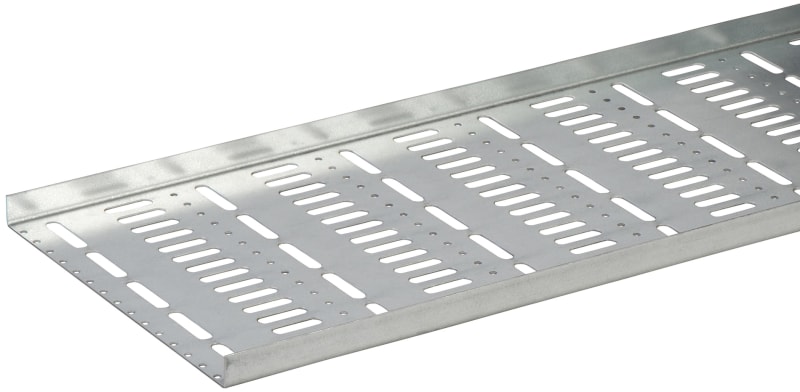

Mounting channel W4-150 1,96M Fzs
Part number736606EAN / GTIN7321677366064HS code7308.90
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 736606 Wibe - installation tray W4-150 - perforated - 2 m - steel pre-galvanized.
Technical Specifications
- Manufacturer part number (MPN)
- 736606
- EAN / GTIN
- 7321677366064
- Sales unit
- m
- Package quantity
- 20 m
- Length
- 1960 mm
- Width
- 150 mm
- Height
- 15 mm
- Material
- Steel
- Material type or surface treatment
- Pre-galvanized
- Corrosion class
- C2
- Material thickness
- 1 mm
- Useful cross section
- 2250 mm²
- With cover
- No
- Side wall perforation
- No
- Mounting perforation in bottom
- Yes
- NATO
- Yes
- Model
- Without connector
- Wide span model
- No
- Suitable for circuit integrity
- No
- Stainless steel, pickled
- No
- Surface protection
- Continuously galvanized
- Weight
- 1.2 kg/m
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 2.29 kg
- Length pack 1
- 1960 mm
- Width pack 1
- 150 mm
- Height pack 1
- 15 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 130
- Weight pack 4
- 322 kg
- Length pack 4
- 1960 mm
- Width pack 4
- 800 mm
- Height pack 4
- 390 mm
- Net weight
- 2.29 kg
- Country of origin
- SE
- ETIM class
- EC000047
- GWP Total A1-A3
- 6.504 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677366064
- SAP 1000563881
- Code 81053860
Product Documentation
Document preview: Mounting channel W4-150 1,96M Fzs (736606) — Specification sheet
More from Wibe Group
Wibe Group
Luminaire Bracket W25/60-70 Fzs white
782614
Wibe Group
Forsterkningsstykke 46 ZP White
714179
Wibe Group
Internal Bracket W17/40-100 FZS SV 2 pcs
CSU795850
Wibe Group
Centre Bracket B35/320-422 FZV C4 6 pcs
1149220
Wibe Group
Carrier IRON 3-500 ZP HV
721866
Wibe Group
Wibe T-Joint W29/60-200 — Pre-galvanized steel
783180
Wibe Group

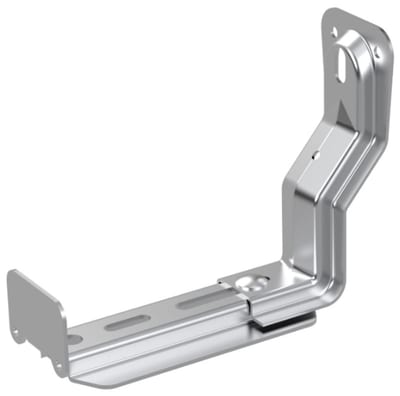

Adjustable Bracket W18/40-100 FZS HV
729033
Wibe Group

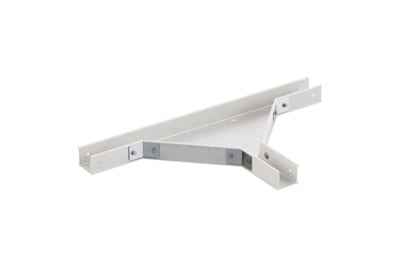

T-branch cable trunking 50-50 R3 GRP PC1
