Internal Bracket W17/40-100 FZS SV 2 pcs
Pricing
Request a quote
We reply within 24 hours
Product Description

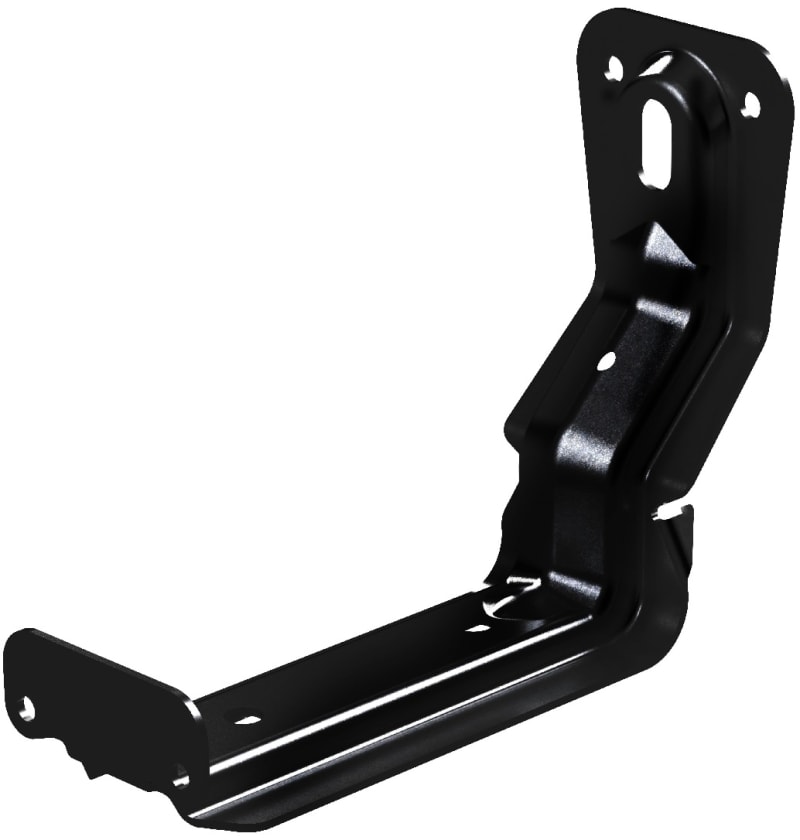

Wibe Group CSU795850 internal cantilever arm W17/40-100 in pre-galvanized steel, painted black (RAL 9005) for 100 mm cable-management systems. Corrosion class C2 with a safe working load of 1764 N to IEC 61537. Supplied in packs of two.
Technical Specifications
- Manufacturer part number (MPN)
- CSU795850
- EAN / GTIN
- 7321677958504
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Colour
- Black RAL9005
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Length
- 119 mm
- Width
- 55 mm
- Height
- 140 mm
- Suitable for cable management system width
- 100 - 100 mm
- Model
- Wall- and profile console
- Angle
- 90 - 90 °
- Suitable for circuit integrity
- No
- Material quality
- Other
- Surface protection
- Continuously galvanized and coated
- RAL
- 9005
- Max. safe working load according to IEC 61537
- 1764 N
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 0.16 kg
- Length pack 1
- 120 mm
- Width pack 1
- 70 mm
- Height pack 1
- 140 mm
- Pack 2 type
- Bag
- Quantity pack 2
- 2
- Weight pack 2
- 0.32 kg
- Length pack 2
- 350 mm
- Width pack 2
- 240 mm
- Height pack 2
- 70 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 300
- Weight pack 4
- 78 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 340 mm
- Net weight
- 0.16 kg
- Country of origin
- SE
- ETIM class
- EC000022
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677958504
- SAP 1200608821
- Code 83000077
Product Documentation
