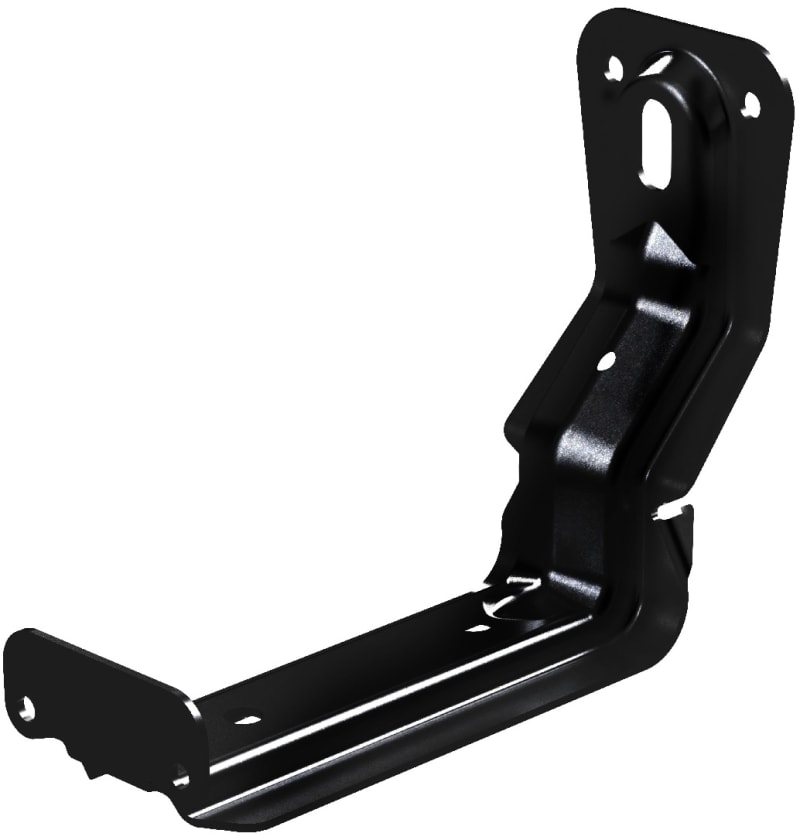

Wibe Group Internal Cantilever Arm W17/40-400 FZS Steel Black
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group CSU795852 is an internal cantilever arm W17/40-400 in pre-galvanised painted steel, finished in black RAL 9005. Suitable for cable management systems 400 mm wide at a 90 degree angle, with a safe working load of 1,176 N per IEC 61537. Overall length 419 mm and height 165 mm; supplied in packs of two.
Technical Specifications
- Manufacturer part number (MPN)
- CSU795852
- EAN / GTIN
- 7321677958528
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Colour
- Black RAL9005
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Length
- 419 mm
- Width
- 75 mm
- Height
- 165 mm
- Suitable for cable management system width
- 400 - 400 mm
- Model
- Wall- and profile console
- Angle
- 90 - 90 °
- Suitable for circuit integrity
- No
- Material quality
- Other
- Surface protection
- Continuously galvanized and coated
- RAL
- 9005
- Max. safe working load according to IEC 61537
- 1176 N
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 1 kg
- Length pack 1
- 420 mm
- Width pack 1
- 90 mm
- Height pack 1
- 170 mm
- Pack 2 type
- Bag
- Quantity pack 2
- 2
- Weight pack 2
- 2 kg
- Length pack 2
- 900 mm
- Width pack 2
- 240 mm
- Height pack 2
- 100 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 60
- Weight pack 4
- 91 kg
- Length pack 4
- 1200 mm
- Width pack 4
- 800 mm
- Height pack 4
- 340 mm
- Net weight
- 1 kg
- Country of origin
- SE
- ETIM class
- EC000022
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677958528
- SAP 1200608823
- Code 83000062
Product Documentation
