Wibe Group
Kanalund al 120/65 2.5M hv 9003
Part numberSTA520002EAN / GTIN7321679003981HS code7610.90
Control & Automation
Conduit & Trunking
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

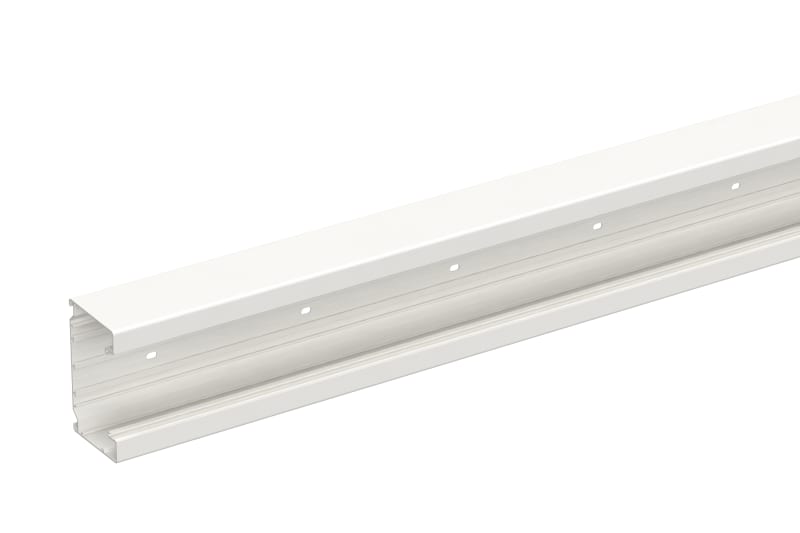

Wibe Group STA520002 Trunking base, Stago WGX-A, aluminium 120/65, with F80 front opening, 2.5m, white RAL9003.
Technical Specifications
- Manufacturer part number (MPN)
- STA520002 EAN / GTIN: 7321679003981 Sales unit: m minimum order quantity: 5 Order multiple: 5 Dimension: 120/65 Colour: White RAL9003 Length: 2500 mm Width: 65 mm Height: 120 mm material: Aluminium material type or surface treatment: Powder coated Depth: 65 mm Number of covers: 1 Covers supplied with the product: No Cover width 1: 80 mm Symmetric: Yes Construction type rectangular: Yes Halogen free: Yes Surface protection: Coated RAL: 9003 Construction rear wall (inner side): Continuous C-profile With protective foil: Yes Number of plug: 3 With duct connector: No Mounting perforation in bottom: Yes Mounting method cover: Inner lying With cable fixing clip: No Degree of protection (IP): IP20 Impact strength: IK07 Operating temperature: -20 - 60 °C Net weight: 3.82 kg Country of origin: FI ETIM class: EC001938 GWP Total A1-A3: 8.022 kgCO2e
Standards & Compliance
- HS Code
- 7610.90
Cross References
- EAN 7321679003981
- SAP 1200810879
- Code 83992155
Product Documentation
Document preview: Kanalund al 120/65 2.5M hv 9003 (STA520002) — Specification sheet
More from Wibe Group
Wibe Group

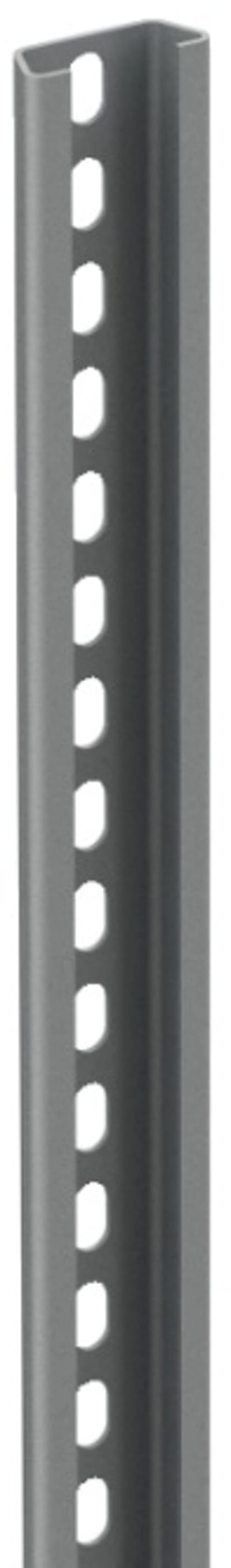

P/A-Rail 24/34 0,4M FZS
725358
Wibe Group

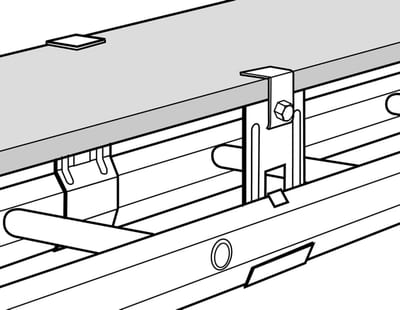

Cover W5-500 2M Sf (732295)
Wibe Group
Kanalund al 110/55 2.7M so 9017
STA520109
Wibe Group
Cover W5-600 2M FZS HV GL30
729021
Wibe Group
Mounting channel W4-400 3M Sf
783477
Wibe Group
Socket outlet 2-V IP44 + Plate W24/40 FZV
CSU795871
Wibe Group
Support beam 200-1000 GRP PC1
MS416510PC1
Wibe Group
Screw set M6X12 Sf (M4820SS)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy STA520002?
- STA520002 can be ordered from cballast.com as a Wibe Group catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Wibe Group product?
- The manufacturer part number is STA520002.
- What is the HS code for STA520002?
- The customs tariff (HS) code for STA520002 is 7610.90.
- Who manufactures STA520002?
- STA520002 is a Wibe Group product in the Control & Automation range.
- Is a datasheet available for STA520002?
- Yes — the STA520002 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for STA520002?
- The minimum order quantity is 1.
- Is STA520002 available?
- Yes — STA520002 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
