Wibe Group
Mounting channel W4-400 3M Sf
Part number783477EAN / GTIN7321677834778HS code7308.90
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

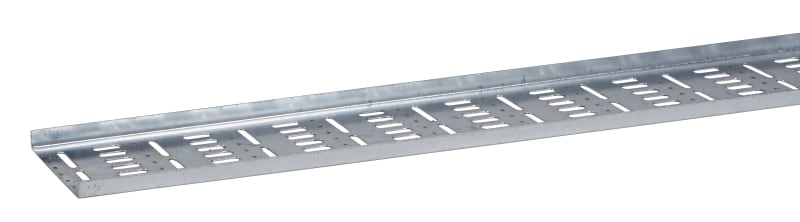

Wibe Group 783477 Wibe - installation tray W4-400 - perforated - 3 m - stainless steel AISI316L.
Technical Specifications
- Manufacturer part number (MPN)
- 783477 EAN / GTIN: 7321677834778 Sales unit: m minimum order quantity: 3 Order multiple: 3 Length: 3000 mm Width: 400 mm Height: 15 mm material: Stainless steel material type or surface treatment: AISI316L Corrosion class: CX material thickness: 1.25 mm Useful cross section: 3000 mm² With cover: No Side wall perforation: No Mounting perforation in bottom: Yes NATO: Yes Model: Without connector Wide span model: No Suitable for circuit integrity: No Stainless steel, pickled: No material quality: Stainless steel V4A Weight: 3.1 kg/m Pack 1 type: Each Quantity pack 1: 1 Weight pack 1: 8.36 kg Length pack 1: 3000 mm Width pack 1: 400 mm Height pack 1: 16 mm Net weight: 8.36 kg Country of origin: SE ETIM class: EC000047 GWP Total A1-A3: 48.8224 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677834778
- SAP 1000481412
- Code 8870348
Product Documentation
Document preview: Mounting channel W4-400 3M Sf (783477) — Specification sheet
More from Wibe Group
Wibe Group
Socket outlet 2-V IP44 + Plate W24/40 FZV
CSU795871
Wibe Group
Support beam 200-1000 GRP PC1
MS416510PC1
Wibe Group
Screw set M6X12 Sf (M4820SS)
Wibe Group
Concrete Screw MMS-S 7,5X50/65 SF 50PCS.
IMT38031
Wibe Group
Wall Bracket 50/250 3M FZV C4
723435
Wibe Group
Kanalund al 110/55 2.7M hv 9003
STA520108
Wibe Group
Adapter Bolt 29/600 FZV C4 10 pcs
705397
Wibe Group
Angle Bracket W8S FOR Cable Ladder FZS HV
726874
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 783477?
- 783477 can be ordered from cballast.com as a Wibe Group catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Wibe Group product?
- The manufacturer part number is 783477.
- What is the HS code for 783477?
- The customs tariff (HS) code for 783477 is 7308.90.
- Who manufactures 783477?
- 783477 is a Wibe Group product in the Cables & Wiring range.
- Is a datasheet available for 783477?
- Yes — the 783477 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 783477?
- The minimum order quantity is 1.
- Is 783477 available?
- Yes — 783477 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
