Internal corner 170/72 Black RAL9017
Pricing
Request a quote
We reply within 24 hours
Product Description

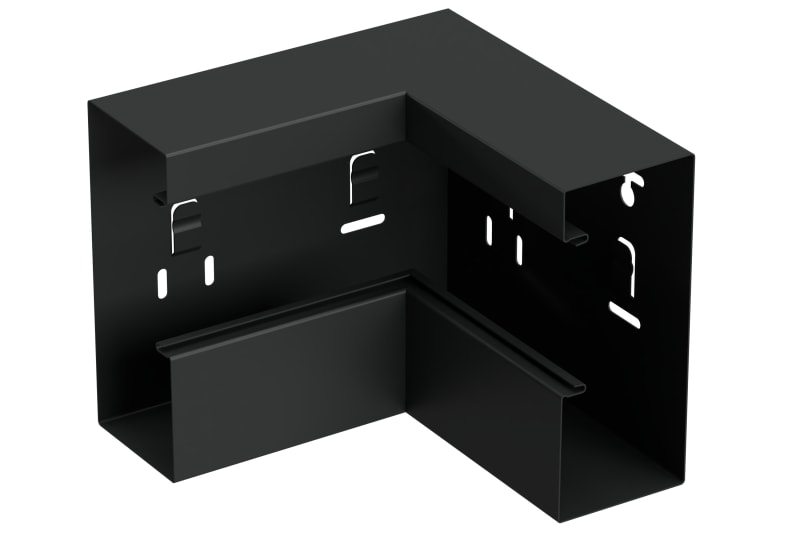

Wibe Group STA550142 Internal corner 170/72mm - steel - black RAL9017/30.
Technical Specifications
- Manufacturer part number (MPN)
- STA550142
- EAN / GTIN
- 8720871002546
- Sales unit
- pcs
- Colour
- RAL 9017
- Dimension
- 170/72
- Length
- 170 mm
- Width
- 72 mm
- Height
- 200 mm
- Material
- Steel
- Material type or surface treatment
- Powder coated
- Depth
- 72 mm
- Shape
- Symmetric
- Number of covers
- 0
- Cover width 1
- 80 mm
- Model
- Base unit
- Angle
- 90 - 90 °
- Halogen free
- Yes
- Surface protection
- Coated
- RAL
- 9017
- With protective foil
- No
- With duct connector
- No
- Mounting perforation in bottom
- Yes
- Mounting method cover
- Inner lying
- With cable fixing clip
- No
- Degree of protection (IP)
- IP20
- Impact strength
- IK07
- Operating temperature
- -20 - 60 °C
- Pack 1 type
- Carton
- Quantity pack 1
- 1
- Weight pack 1
- 1.35 kg
- Length pack 1
- 200 mm
- Width pack 1
- 200 mm
- Height pack 1
- 200 mm
- Net weight
- 1.35 kg
- Country of origin
- NL
- ETIM class
- EC000867
- GWP Total A1-A3
- 5.401 kgCO2e
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 8720871002546
- SAP 1200714317
- Code 83808636
Product Documentation
More from Wibe Group
Wibe Group
Wibe Group Cantilever Arm 50i-200 mm FZS Pre-Galvanised Steel White
791417
Wibe Group
Wibe Group Defem B33 Adjustable Support 215-370 mm, Electro-Galvanised
1149135
Wibe Group
Bend vertical W11/60-300 Fzs white
782597
Wibe Group
External Corner 110/52, Black RAL 9017 (STA550073)
Wibe Group
Inner BEND 55/1000 90° FZV
716247
Wibe Group
Telerenne 36/50 2M Z+
CSU795934
Wibe Group
Wibe Group 729059 Suspension Band W33 1 m Hot-Dip Galvanised White
Wibe Group
Mounting channel W4/15-75 3M Z+
CSU795993
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy STA550142?
- STA550142 can be ordered from cballast.com as a Wibe Group catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Wibe Group product?
- The manufacturer part number is STA550142.
- What is the HS code for STA550142?
- The customs tariff (HS) code for STA550142 is 7308.90.
- Who manufactures STA550142?
- STA550142 is a Wibe Group product in the Cables & Wiring range.
- Is a datasheet available for STA550142?
- Yes — the STA550142 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for STA550142?
- The minimum order quantity is 1.
- Is STA550142 available?
- Yes — STA550142 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
