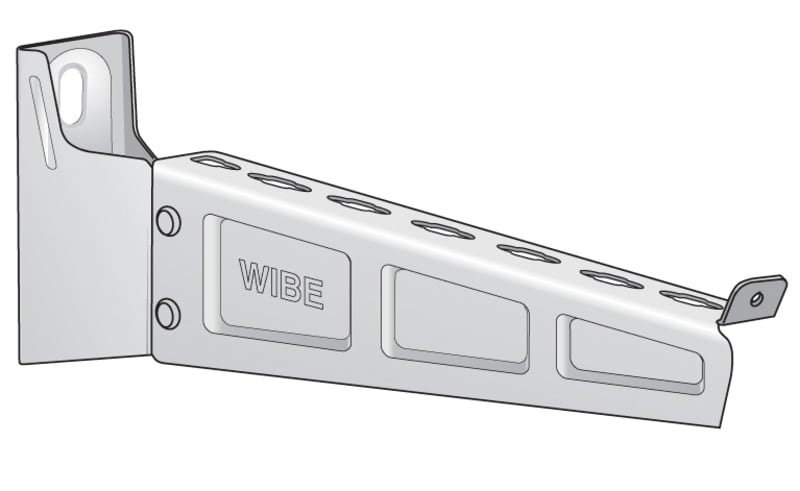

Wibe Group Cantilever Arm 50i-200 mm FZS Pre-Galvanised Steel White
Pricing
Request a quote
We reply within 24 hours
Product Description
Wibe Group 791417 is a pre-galvanised painted steel cantilever arm 50i-200 mm, finished in white NCS S 0500 N gl30. It suits cable management widths from 100 to 200 mm at a 90 degree angle with a 1,265 N safe working load per IEC 61537. Overall length 250 mm and height 85 mm; supplied in packs of two.
Technical Specifications
- Manufacturer part number (MPN)
- 791417
- EAN / GTIN
- 7321677914173
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Colour
- White NCS S 0500 N gl30
- Width
- 200 mm
- Material
- Steel
- Material type or surface treatment
- Painted
- Corrosion class
- C2
- Length
- 250 mm
- Height
- 85 mm
- Suitable for cable management system width
- 100 - 200 mm
- Model
- Wall- and profile console
- Angle
- 90 - 90 °
- Suitable for circuit integrity
- No
- Material quality
- Other
- Surface protection
- Continuously galvanized and coated
- Max. safe working load according to IEC 61537
- 1265 N
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 0.29 kg
- Length pack 1
- 250 mm
- Width pack 1
- 43 mm
- Height pack 1
- 85 mm
- Net weight
- 0.29 kg
- Country of origin
- SE
- ETIM class
- EC000022
Standards & Compliance
- HS Code
- 7308.90
Cross References
- EAN 7321677914173
- SAP 1000563649
- Code 81053356
Product Documentation
