Stago al channel 110/55 Black 9017 2,5M
Part numberSTA520006EAN / GTIN7321679003516HS code7610.90
Control & Automation
Conduit & Trunking
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

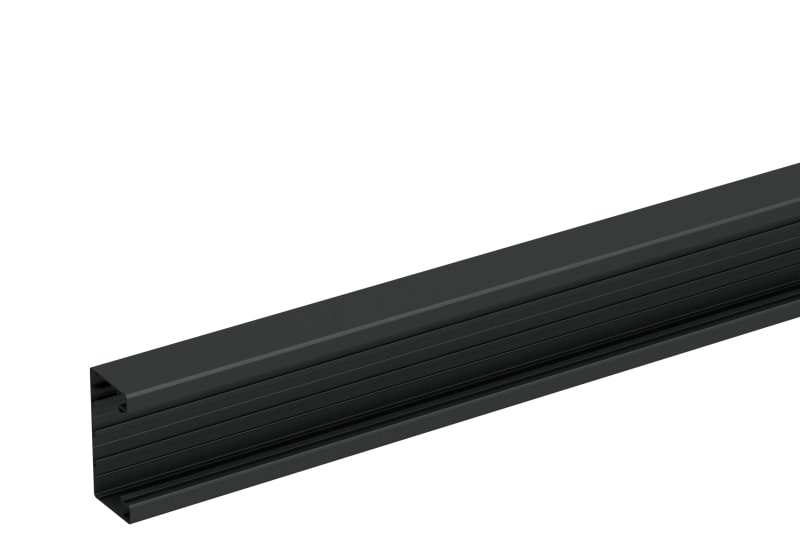

Trunking base section, W Stago, aluminium 110/55, with F80 front opening, black RAL 9017.
Technical Specifications
- Manufacturer part number (MPN)
- STA520006
- EAN / GTIN
- 7321679003516
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Dimension
- 110/55
- Colour
- Black RAL9017
- Length
- 2500 mm
- Width
- 55 mm
- Height
- 110 mm
- Material
- Aluminium
- Material type or surface treatment
- Powder coated
- Depth
- 55 mm
- Number of covers
- 1
- Covers supplied with the product
- No
- Cover width 1
- 80 mm
- Symmetric
- Yes
- Construction type rectangular
- Yes
- Halogen free
- Yes
- Surface protection
- Coated
- RAL
- 9017
- Construction rear wall (inner side)
- Continuous C-profile
- With protective foil
- Yes
- Number of plug
- 3
- With duct connector
- No
- Mounting perforation in bottom
- Yes
- Mounting method cover
- Inner lying
- With cable fixing clip
- No
- Degree of protection (IP)
- IP20
- Impact strength
- IK07
- Operating temperature
- -20 - 60 °C
- Pack 1 type
- Carton
- Quantity pack 1
- 4
- Weight pack 1
- 12.64 kg
- Length pack 1
- 2500 mm
- Width pack 1
- 130 mm
- Height pack 1
- 130 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 60
- Weight pack 4
- 215 kg
- Length pack 4
- 2500 mm
- Width pack 4
- 800 mm
- Height pack 4
- 549 mm
- Net weight
- 3.05 kg
- Country of origin
- FI
- ETIM class
- EC001938
- GWP Total A1-A3
- 6.636 kgCO2e
Standards & Compliance
- HS Code
- 7610.90
Cross References
- EAN 7321679003516
- SAP 1200714308
- Code 83808632
Product Documentation
Document preview: Stago al channel 110/55 Black 9017 2,5M (STA520006) — Specification sheet
