Cable Ladder KHZP-200 3M ZP HV
Part number783525EAN / GTIN7321677835256HS code8544.42
Cables & Wiring
Cable Trays
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

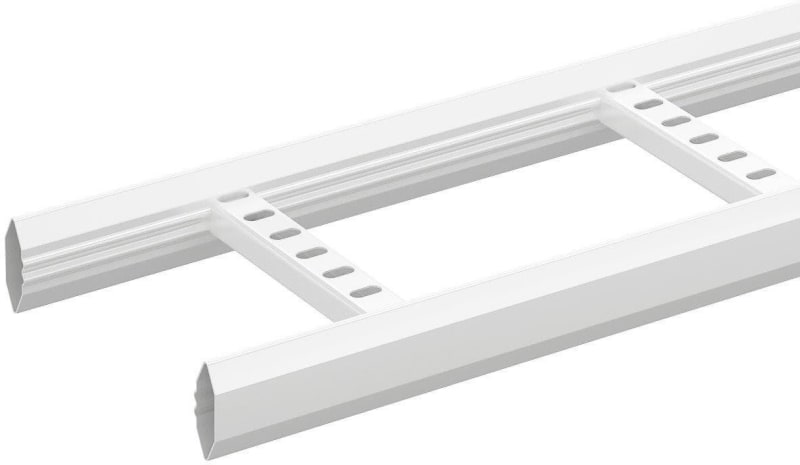

Wibe Group 783525 Wibe - cable ladder - KHZP-200 - closed side profiles and perforated rungs - 3 m - steel Zinkpox coated white.
Technical Specifications
- Manufacturer part number (MPN)
- 783525
- EAN / GTIN
- 7321677835256
- HS code
- 8544.42
- Sales unit
- m
- Package quantity
- 30 m
- Colour
- White NCS S 0500 N gl30
- Length
- 3000 mm
- Width
- 200 mm
- Height
- 55 mm
- Material
- Steel
- Material type or surface treatment
- Zinkpox coated
- Corrosion class
- C5
- Type of side joist
- Tube shape (closed)
- Side wall perforation
- No
- Type of rung
- Perforated profile
- Fixation rung
- Welded
- Useful cross section
- 16000 mm²
- Rung centre spacing
- 250 mm
- Wide span model
- No
- Suitable for circuit integrity
- Yes
- Material quality
- Other
- Surface protection
- Hot-dip galvanized and coated
- Load test type according to IEC 61537
- Type II
- Weight
- 2.6 kg/m
- Pack 1 type
- Each
- Quantity pack 1
- 1
- Weight pack 1
- 7.8 kg
- Length pack 1
- 3000 mm
- Width pack 1
- 197 mm
- Height pack 1
- 55 mm
- Pack 4 type
- Pallet
- Quantity pack 4
- 10
- Weight pack 4
- 114.4 kg
- Length pack 4
- 3000 mm
- Width pack 4
- 470 mm
- Height pack 4
- 350 mm
- Net weight
- 7.8 kg
- Country of origin
- SE
- ETIM class
- EC000854
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7321677835256
- SAP 1200597678
- Code 82977340
Product Documentation
Document preview: Cable Ladder KHZP-200 3M ZP HV (783525) — Specification sheet
